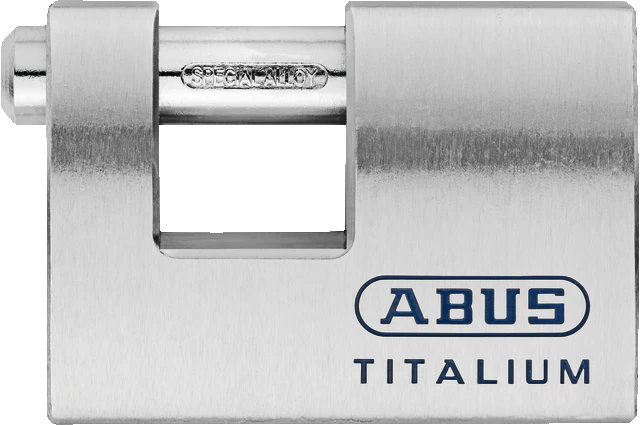

TITALIUM™ 98TI Series – Lightweight Monoblock Sliding Bolt Padlock

ABUS TITALIUM™ 98TI Series – Lightweight Monoblock Sliding Bolt Padlock with Reversible Key and Rotating Shackle (All Variants)

The ABUS TITALIUM™ 98TI Series Padlock delivers outstanding high-security performance and exceptional attack resistance in a remarkably lightweight package, making it an excellent choice for demanding commercial, industrial, and infrastructure applications where the proven security architecture of a monoblock sliding bolt padlock is required without the weight penalty of traditional brass or steel construction. Built from TITALIUM™ special aluminium alloy — a proprietary high-strength, low-weight alloy — and fitted with a 12 mm hardened steel sliding bolt shackle that rotates under attack, the 98TI Series combines maximum physical attack resistance with the significant weight advantages of TITALIUM™ construction.

Designed with a hardened steel pin protecting the narrow side of the lock body against saw attacks, a high precision reversible keyway offering up to 150,000 key differs, and an automatic locking function allowing convenient locking without a key, the 98TI Series provides uncompromising high-security protection where conventional padlocks fall short. Purpose-designed for applications including roller shutters, large containers, warehouses, garages, lorries, and high-security perimeter gates, the 98TI Series is available in 70 mm and 90 mm body sizes with a uniform key type across both variants for simplified key management.

Key Features

• Solid lock body made from TITALIUM™ special aluminium alloy for high security with low weight
• 12 mm hardened steel sliding bolt shackle for exceptional cut and pull resistance
• Rotating shackle design defeats attack attempts by spinning under force
• Hardened steel pin protects the narrow side of the lock body against saw attacks
• High precision reversible keyway with up to 150,000 key differs
• Automatic locking function (push-down shackle, no key required)
• High security classification across all variants
• Available keyed alike across multiple locks
• Uniform key type across both variants for simplified key management
• Suitable for indoor and outdoor use
• Available in 70 mm and 90 mm body sizes

Variant Options

• 98TI/70: Sliding bolt shackle (70 mm body)
• 98TI/90: Sliding bolt shackle (90 mm body)

Ideal Applications

• Roller shutters and industrial doors
• Large containers and warehouses
• Garages and commercial storage facilities
• Lorries and heavy transport security
• High-security perimeter gates and fencing

Specifications

• Product Type: TITALIUM™ Monoblock Sliding Bolt Padlock with Reversible Key
• Locking Type: Keyed (High Precision Reversible Cylinder)
• Security Rating: Level 7 (98TI/70) | Level 8 (98TI/90)
• Indoor Use: Yes
• Outdoor Use: Yes
• Marine Use: No
• Safety Use: No
• High Security Use: Yes (all variants)
• Material – Body: TITALIUM™ Aluminium Alloy
• Colour: Silver
• Material – Shackle: Hardened Steel
• Shackle Type: Sliding Bolt
• Removable Shackle: No
• Keyed Alike Option: Yes (all variants)
• Master Key Option: No
• Key Retaining: No
• Key Type: 26424 (all variants)
• Keys Supplied: 2

Dimensions & Weight (All Variants)

• 98TI/70: 70 × 50 × 23 mm | 196 g | Ø 12 mm | Clearance: 22 × 14 mm
• 98TI/90: 90 × 60 × 28 mm | 346 g | Ø 12 mm | Clearance: 35 × 18 mm

Design & Finish

• Colour: Silver
• TITALIUM™ aluminium monoblock construction delivers maximum structural integrity at significantly reduced weight compared to brass and steel equivalents
• Low-profile sliding bolt design minimises exposed shackle for reduced vulnerability to attack
• Clean silver finish suited to industrial and commercial environments

Additional Information

• Compatible with ABUS hasps: 115 Series (all variants)
• Compatible with ABUS chains: 12KS (all variants)
• Rotating shackle design significantly reduces the effectiveness of bolt cutter and saw attacks
• Hardened steel anti-saw pin provides an additional layer of protection on the lock body
• Uniform key type (26424) across both variants simplifies key management in mixed installations
• Reversible key design allows insertion from either side for ease of use
• TITALIUM™ construction delivers comparable security to the brass 82 and steel 92 monoblock series at a fraction of the weight
• Monoblock construction eliminates weak points typically found at the shackle heel of conventional padlocks

Packaging Information

• 1 × ABUS TITALIUM™ 98TI Series Padlock (selected variant)
• 2 × Keys included
