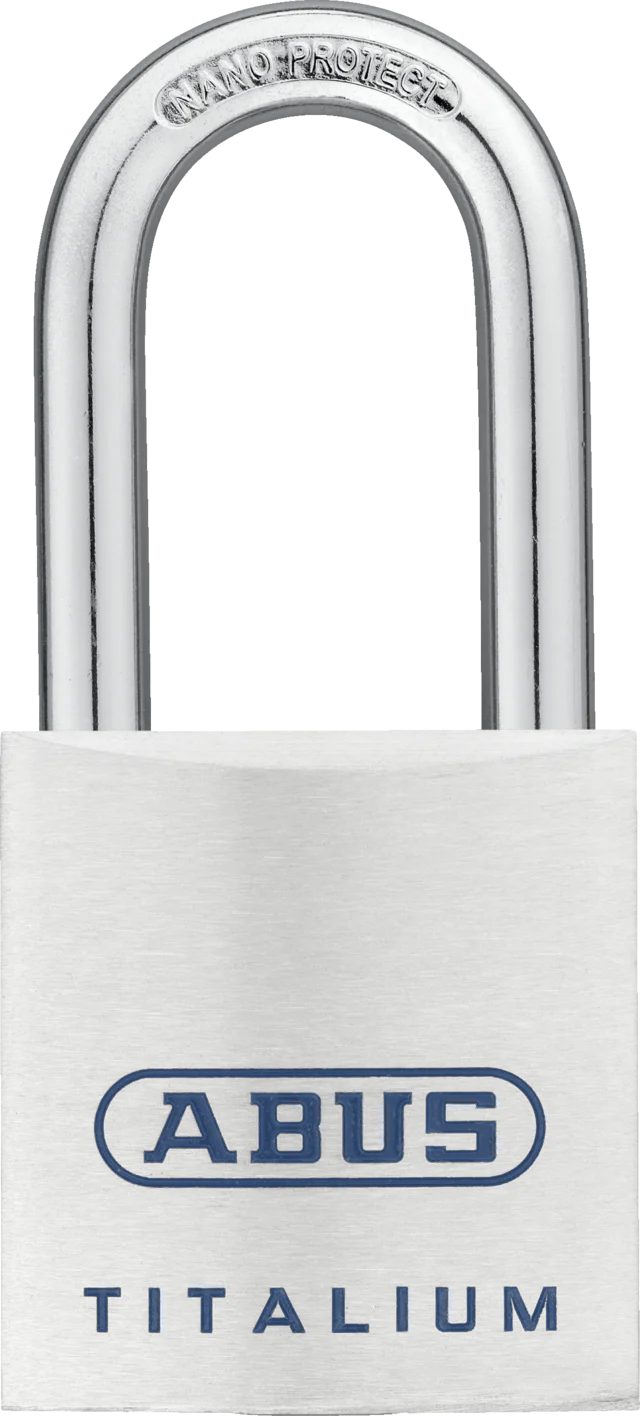

TITALIUM™ 80TI Series – Lightweight High-Security Padlock

ABUS TITALIUM™ 80TI Series – Lightweight High-Security Padlock with NANO PROTECT™ Coating (All Variants)

The ABUS TITALIUM™ 80TI Series Padlock delivers an exceptional combination of high security, lightweight construction, and outstanding corrosion resistance, making it an excellent choice for demanding indoor and outdoor applications where strength and durability are paramount. Built from TITALIUM™ special aluminium — a proprietary high-strength, low-weight alloy — and fitted with a hardened steel shackle featuring NANO PROTECT™ coating, the 80TI Series is engineered to provide maximum protection while remaining remarkably light in use.

Designed with a chrome-plated cylinder plug for additional corrosion protection and available across four body sizes with long shackle (HB) variants, the 80TI Series scales from dependable everyday security up to high security classification on the larger 50 mm and 60 mm models. The consistently uniform key type across all variants simplifies key management across mixed installations, while the keyed alike option provides further flexibility for multi-lock applications.

Key Features

• Solid lock body made from TITALIUM™ special aluminium for high security with low weight
• Hardened steel shackle with NANO PROTECT™ coating for increased corrosion resistance
• Chrome-plated cylinder plug for additional corrosion protection
• Available in sizes 40, 45, 50, and 60 mm
• Long shackle (HB) variants available in 40 mm size: 40HB40 and 40HB63
• High security classification on 80TI/50 and 80TI/60 variants
• Available keyed alike across multiple locks
• Same key type across all variants for simplified key management
• Suitable for indoor and outdoor use

Variant Options

• 80TI/40: Standard shackle (40 mm body)
• 80TI/40HB40: Long shackle (40 mm vertical clearance)
• 80TI/40HB63: Long shackle (63 mm vertical clearance)
• 80TI/45: Standard shackle (45 mm body)
• 80TI/50: Standard shackle (50 mm body) — High Security
• 80TI/60: Standard shackle (60 mm body) — High Security

Ideal Applications

• High-value equipment and asset protection
• Industrial and commercial security
• Outdoor gates, storage units, and containers
• Workshops, lockers, and utility enclosures
• General indoor and outdoor security requiring lightweight high-security locking

Specifications

• Product Type: TITALIUM™ Lightweight High-Security Padlock
• Locking Type: Keyed (Chrome-Plated Cylinder)
• Security Rating: Level 6 (80TI/40, 80TI/40HB40, 80TI/40HB63) | Level 7 (80TI/45) | Level 8 (80TI/50, 80TI/60)
• Indoor Use: Yes
• Outdoor Use: Yes
• Marine Use: No
• Safety Use: No
• High Security Use: No (80TI/40, 80TI/40HB40, 80TI/40HB63, 80TI/45) | Yes (80TI/50, 80TI/60)
• Material – Body: TITALIUM™ Aluminium Alloy
• Colour: Silver
• Material – Shackle: Hardened Steel with NANO PROTECT™ Coating
• Shackle Type: Standard (Open) | Long (HB variants)
• Removable Shackle: No
• Keyed Alike Option: Yes (all variants)
• Master Key Option: No
• Key Retaining: No
• Key Type: 57862 (all variants)
• Keys Supplied: 2

Dimensions & Weight (All Variants)

• 80TI/40: 40 × 74.5 × 19 mm | 162 g | Ø 7 mm | Clearance: 20.5 × 25.5 mm
• 80TI/40HB40: 40 × 89 × 19 mm | 175 g | Ø 7 mm | Clearance: 20.5 × 40 mm
• 80TI/40HB63: 40 × 112 × 19 mm | 193 g | Ø 7 mm | Clearance: 20.5 × 63 mm
• 80TI/45: 45 × 82 × 21 mm | 196 g | Ø 8 mm | Clearance: 25 × 29 mm
• 80TI/50: 50 × 93 × 23 mm | 260 g | Ø 10 mm | Clearance: 25 × 35 mm
• 80TI/60: 60 × 103 × 28 mm | 382 g | Ø 11 mm | Clearance: 25.5 × 40 mm

Design & Finish

• Colour: Silver
• TITALIUM™ aluminium construction combines the strength of steel with a fraction of the weight
• NANO PROTECT™ shackle coating and chrome-plated cylinder plug deliver superior corrosion resistance
• Clean, modern silver finish suited to industrial and commercial environments

Additional Information

• Compatible with ABUS hasps: 100 Series (80TI/40, 80TI/40HB40, 80TI/40HB63, 80TI/45) | 110 Series (80TI/50, 80TI/60)
• Compatible with ABUS chains: 8KS (80TI/40, 80TI/40HB40, 80TI/40HB63, 80TI/45) | 10KS (80TI/50, 80TI/60)
• Long shackle (HB) variants ideal for extended reach applications
• Uniform key type (57862) across all variants simplifies key management in mixed installations
• TITALIUM™ alloy delivers high-security performance without the weight penalty of traditional steel padlocks

Packaging Information

• 1 × ABUS TITALIUM™ 80TI Series Padlock (selected variant)
• 2 × Keys included
