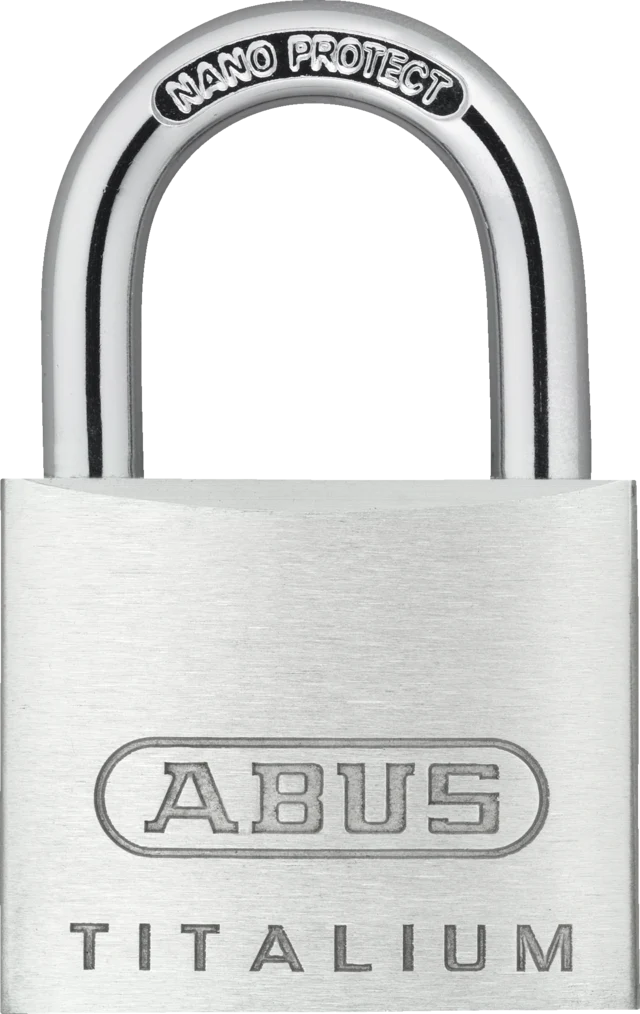

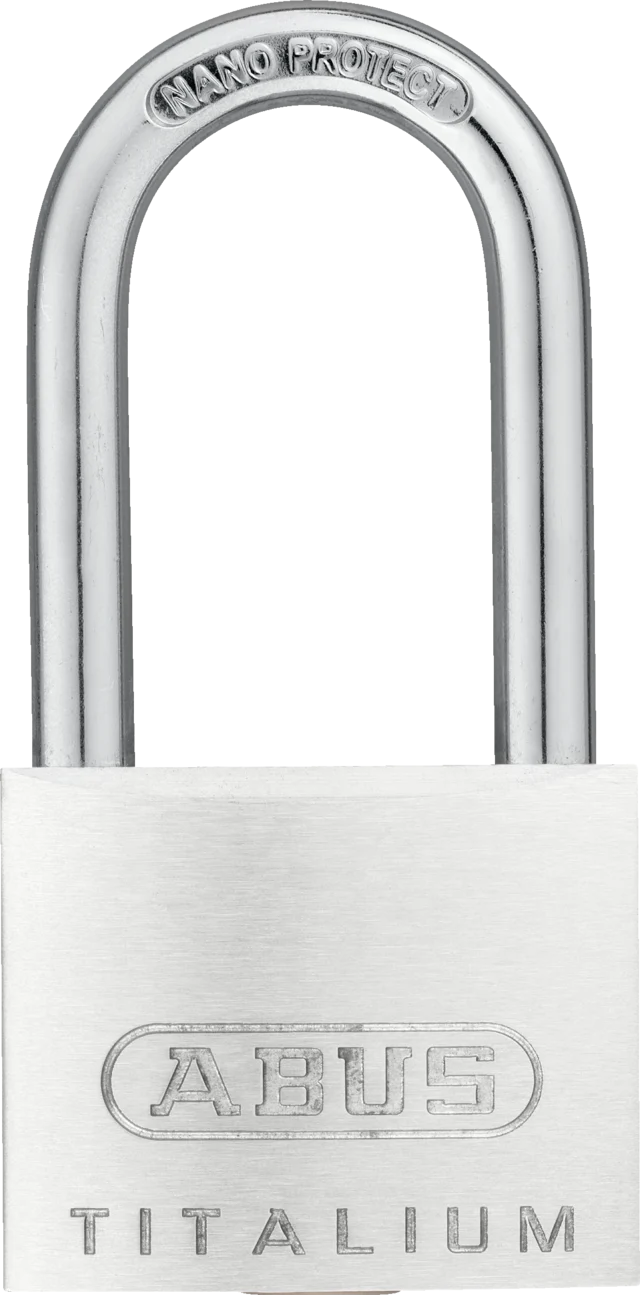

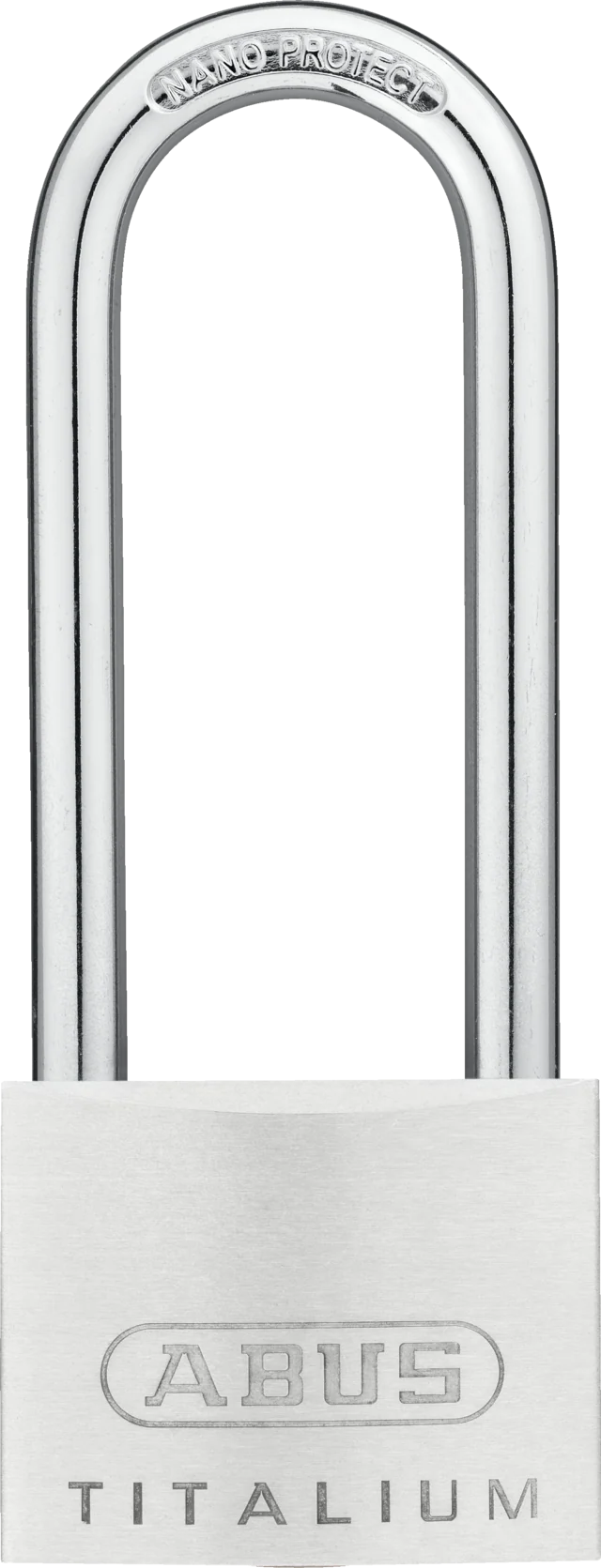

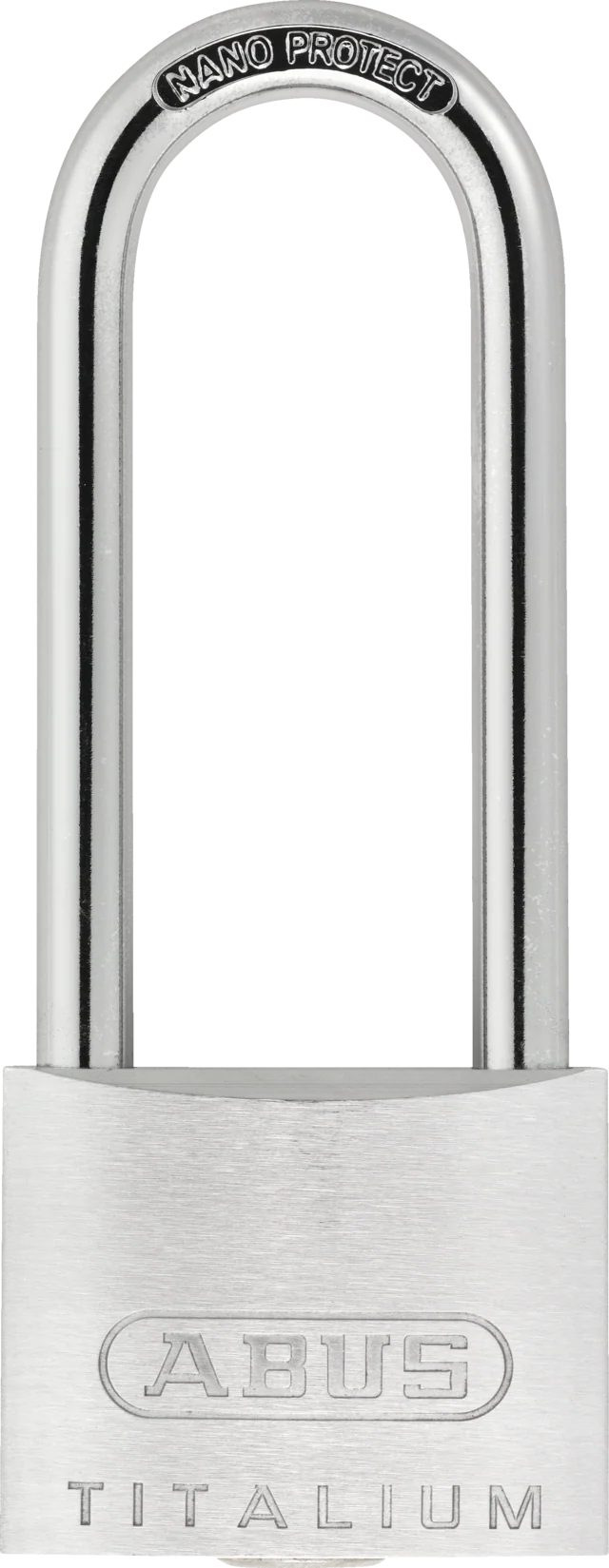

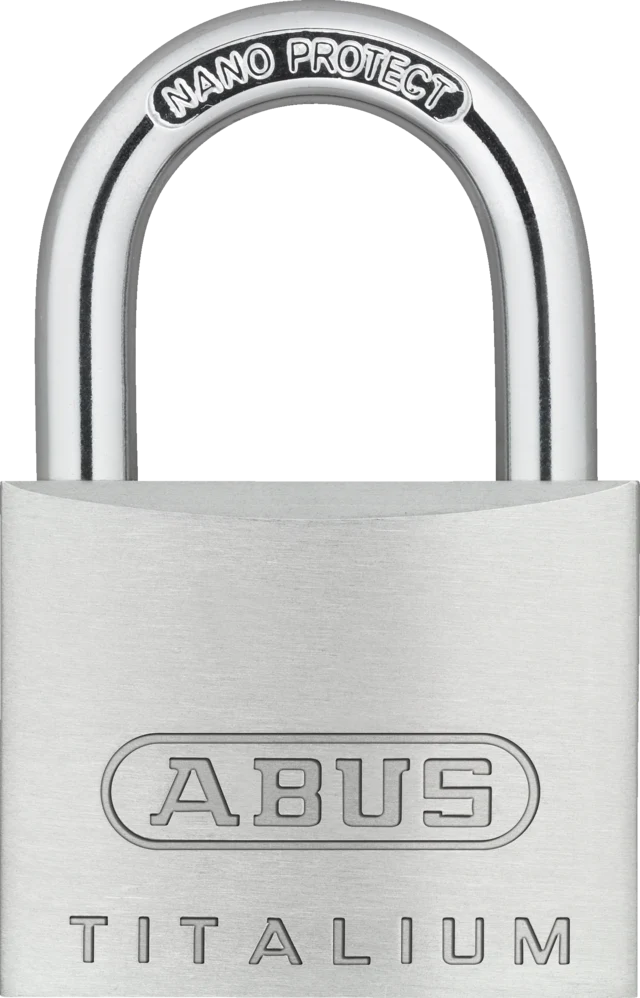

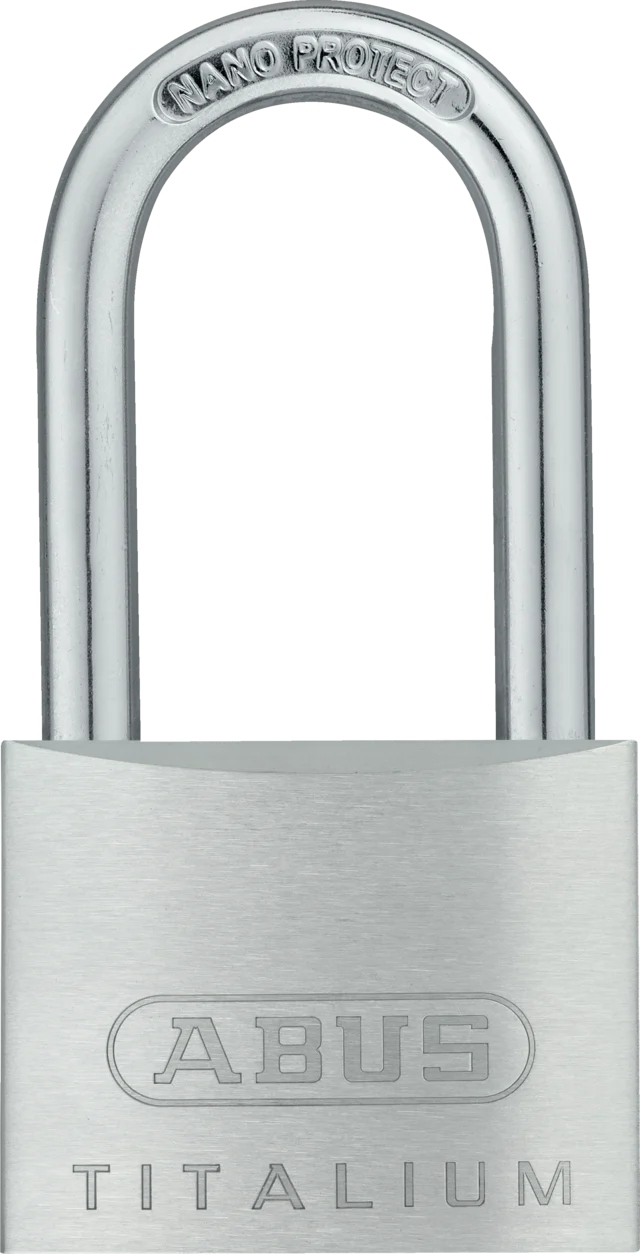

TITALIUM™ 64TI Series – Advanced Lightweight Padlock

ABUS TITALIUM™ 64TI Series – Advanced Lightweight Padlock with NANO PROTECT™ (All Variants)

The ABUS TITALIUM™ 64TI Series Padlock represents a modern evolution in padlock engineering, combining lightweight TITALIUM™ aluminium alloy with enhanced corrosion resistance and flexible shackle configurations. Designed for both convenience and durability, this range is ideal for users who require adaptable security solutions without added weight.

Featuring a hardened steel shackle with NANO PROTECT™ coating, double bolted locking mechanism, and a paracentric key profile, the 64TI Series delivers reliable resistance against manipulation and environmental wear. Select variants include a removable and adjustable shackle system, offering unmatched flexibility for different locking scenarios.

Key Features

• Lightweight TITALIUM™ aluminium alloy body
• Hardened steel shackle with NANO PROTECT™ anti-corrosion coating
• Double bolted shackle for enhanced security
• Paracentric key profile for anti-picking protection
• Chrome-plated cylinder plug for additional corrosion resistance
• Removable and adjustable shackle (selected variant)
• Wide range of sizes and long shackle options available
• Keyed alike option available across variants

Variant Options

• 64TI/20: Ultra-compact lightweight option
• 64TI/25: Small everyday use padlock
• 64TI/30: Standard compact size
• 64TI/30HB60: Long shackle (60 mm clearance)
• 64TI/35: Mid-size versatile option
• 64TI/40: Popular general-purpose size
• 64TI/40HB40: Medium long shackle (40 mm)
• 64TI/40HB63: Extended long shackle (63 mm)
• 64TI/45: Larger body for added strength
• 64TI/50: Heavy-duty general-purpose option
• 64TI/50HB80: Long shackle (80 mm clearance)
• 64TI/60: Large high-capacity variant

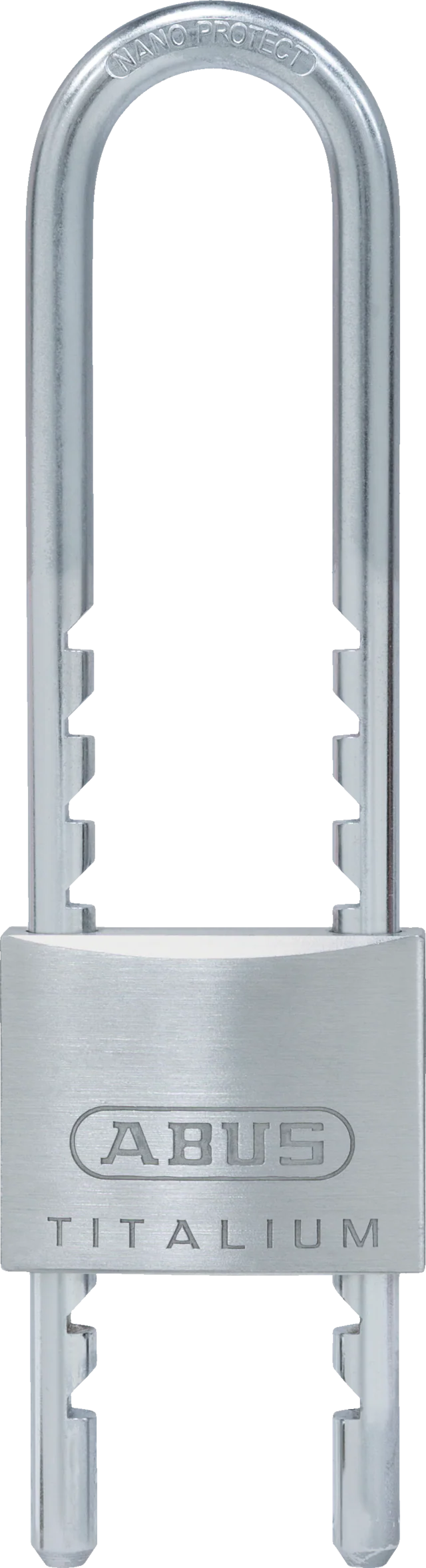

• 64TI/50HB60–150: Adjustable removable shackle (60–150 mm)

Ideal Applications

• Gates, sheds, and garages
• Toolboxes and storage units
• Lockers and cabinets
• Outdoor fixtures requiring corrosion resistance
• Situations requiring extended or adjustable shackle reach

Specifications

• Product Type: Aluminium Padlock
• Locking Type: Keyed (5-Pin Cylinder)
• Security Rating: Level 3–6 (depending on variant)
• Indoor Use: Yes
• Outdoor Use: Yes
• Marine Use: No
• Material – Body: TITALIUM™ Aluminium Alloy
• Material – Shackle: Hardened Steel (NANO PROTECT™ coated)
• Keyed Alike Option: Yes
• Master Key Option: No
• Key Retaining: No
• Keys Supplied: 2

Dimensions & Weight (All Variants)

• 64TI/20: 20 × 34 × 10.5 mm | 15 g | Ø 3.5 mm | Clearance: 9.5 × 11.5 mm
• 64TI/25: 24.5 × 42 × 12 mm | 25 g | Ø 4 mm | Clearance: 13 × 13.5 mm
• 64TI/30: 30 × 49.5 × 13 mm | 53 g | Ø 5 mm | Clearance: 16 × 17 mm
• 64TI/30HB60: 30 × 93 × 13 mm | 65 g | Ø 5 mm | Clearance: 16 × 60 mm
• 64TI/35: 35 × 54 × 14 mm | 68 g | Ø 5.5 mm | Clearance: 19 × 20 mm
• 64TI/40: 40 × 62 × 15 mm | 87 g | Ø 6.5 mm | Clearance: 22 × 23 mm
• 64TI/40HB40: 40 × 79 × 15 mm | 96 g | Ø 6.5 mm | Clearance: 22 × 40 mm
• 64TI/40HB63: 40 × 102 × 15 mm | 107 g | Ø 6.5 mm | Clearance: 22 × 63 mm
• 64TI/45: 45 × 68 × 15 mm | 109 g | Ø 7 mm | Clearance: 25 × 24 mm
• 64TI/50: 50 × 77 × 17 mm | 159 g | Ø 8 mm | Clearance: 28 × 29 mm
• 64TI/50HB80: 50 × 128 × 17 mm | 200 g | Ø 8 mm | Clearance: 28 × 80 mm
• 64TI/60: 60 × 91 × 19 mm | 236 g | Ø 10 mm | Clearance: 34 × 35 mm
• 64TI/50HB60–150: 50 × 77 × 17 mm | 281 g | Ø 8 mm | Adjustable Clearance: 28 × 60–150 mm

Design & Finish

• Colour: Silver (aluminium finish)
• Lightweight yet robust construction
• Modern industrial design with enhanced corrosion protection

Additional Information

• Key Types: 11405, 11406, 12021, 12022, 12023 (variant dependent)
• Compatible with ABUS hasps: 200 Series (small sizes), 100 Series (larger sizes)
• Compatible with ABUS chains: 6KS, 8KS
• Adjustable shackle variant ideal for flexible installations

Packaging Information

• 1 × ABUS TITALIUM™ 64TI Padlock (selected variant)
• 2 × Keys included
