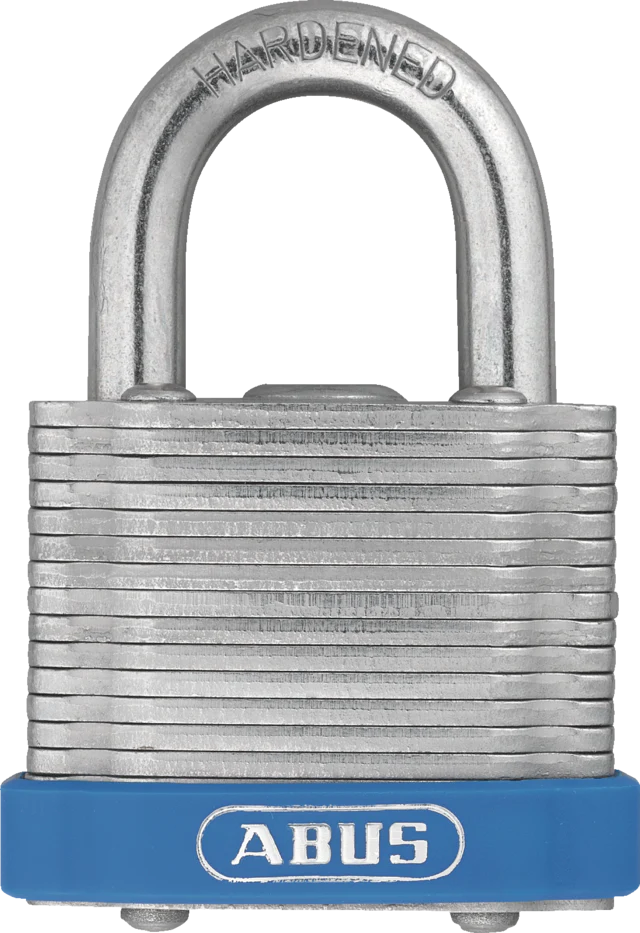

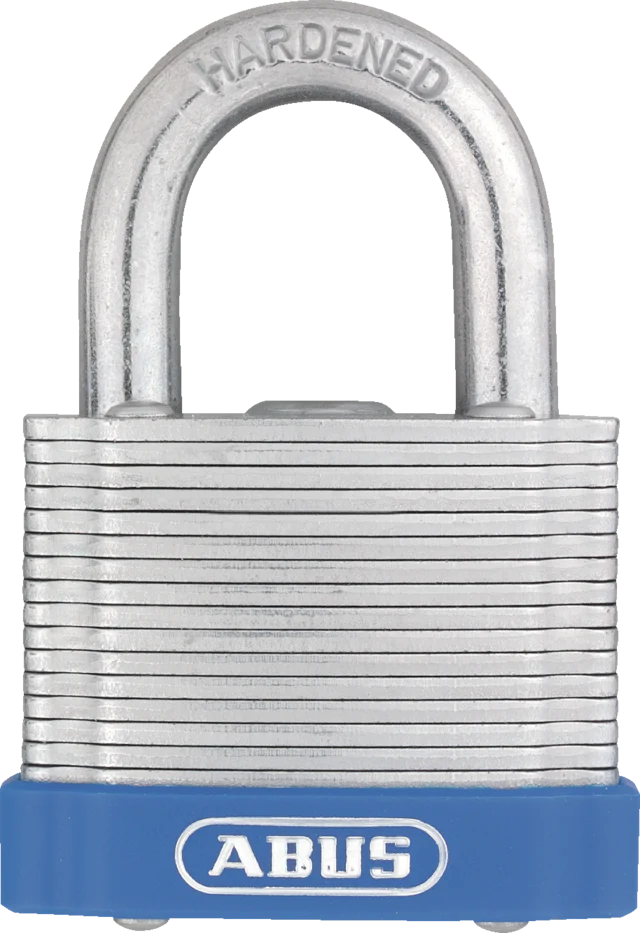

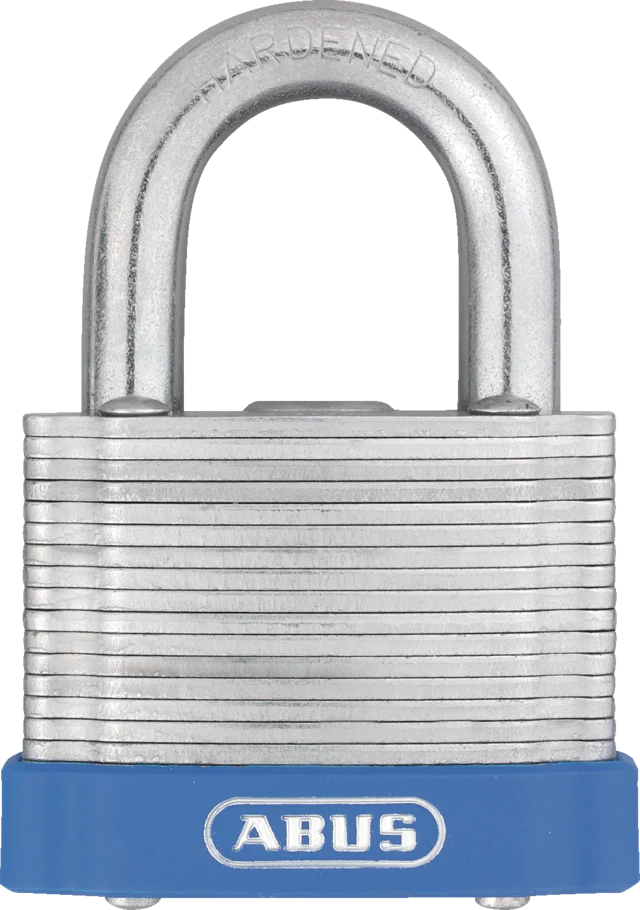

Laminated Steel 41 Series – Durable Weather-Resistant Padlock

ABUS Laminated Steel 41 Series – Durable Weather-Resistant Padlock (All Variants)

The ABUS Laminated Steel 41 Series Padlock offers a reliable balance of strength, durability, and weather resistance, making it an excellent choice for everyday security in both indoor and outdoor environments. Built from layered (laminated) steel plates with ABUS ETERNA™ coating, each laminate is protected against corrosion for long-term performance.

Designed with hardened alloy steel shackles and a precision pin tumbler cylinder, the 41 Series provides dependable protection against common attack methods. Its self-locking mechanism allows convenient locking without a key, while multiple sizes and long shackle (HB) variants ensure flexibility across a wide range of applications.

Key Features

• Laminated steel body with ETERNA™ coating for corrosion resistance
• Hardened alloy steel shackle for enhanced cut resistance
• Rivets positioned in outer laminates for added tamper protection
• Precision pin tumbler cylinder for reliable locking
• Self-locking function (push-down shackle)

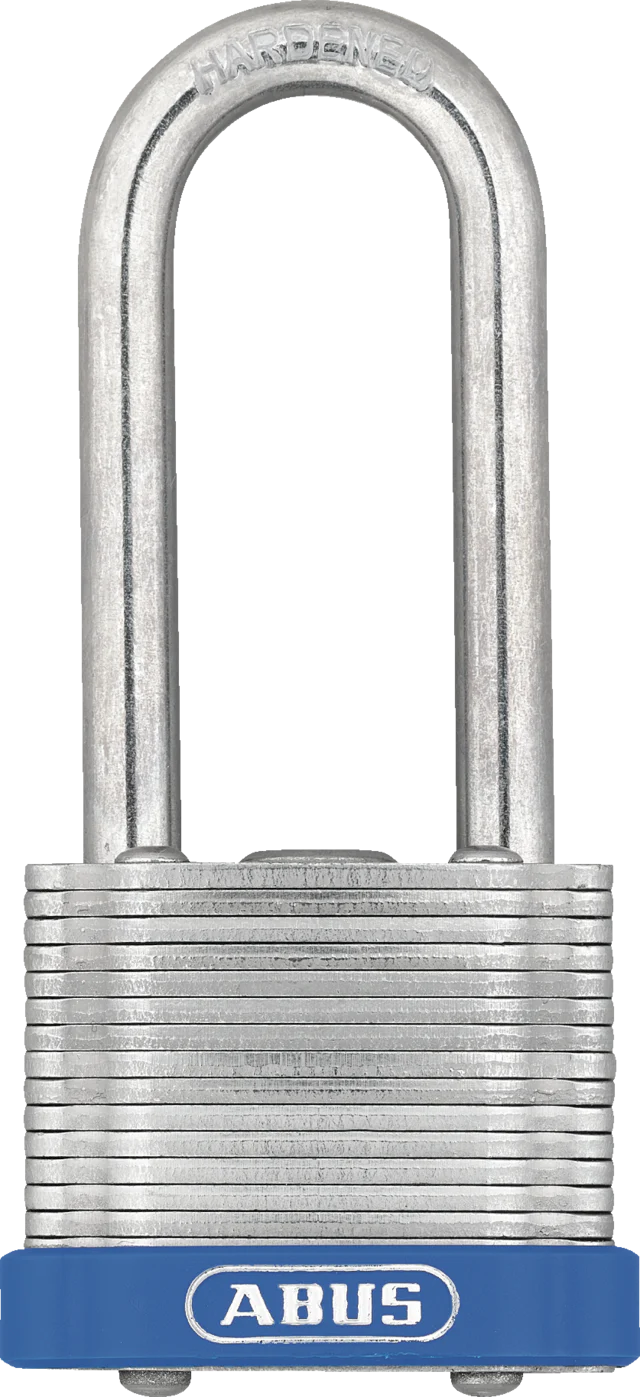

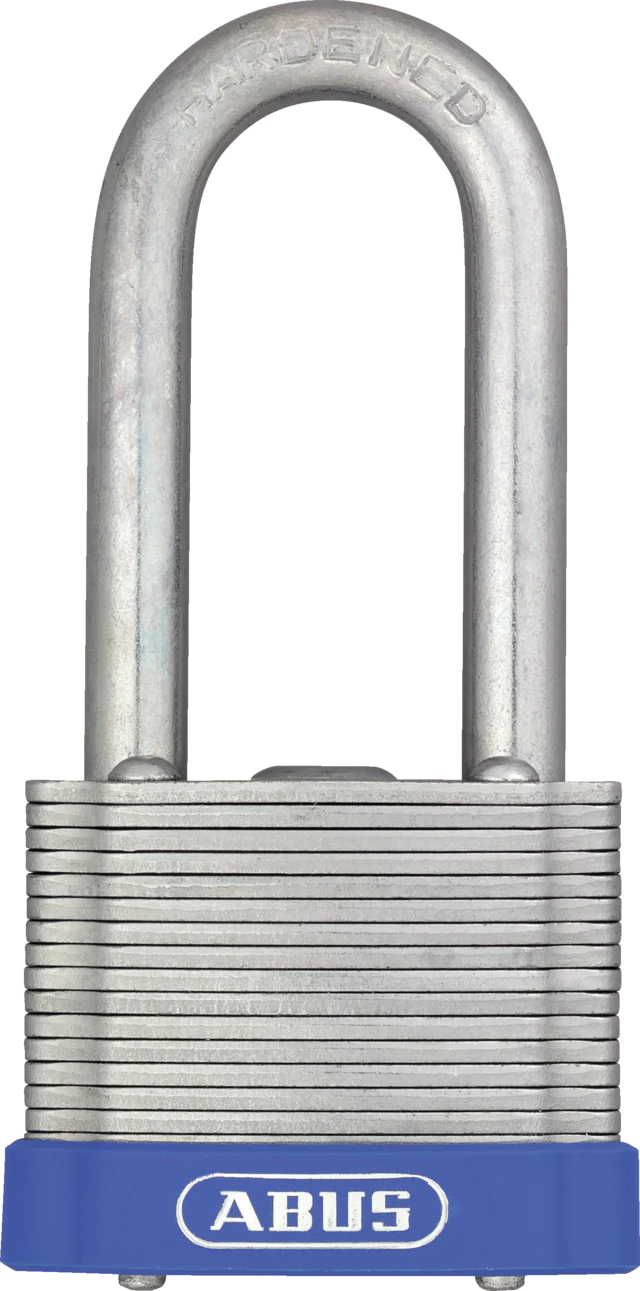

• Available in standard and long shackle (HB) variants
• Suitable for indoor and outdoor use

Variant Options

• 41/40: Standard shackle (40 mm)
• 41/40HB50: Long shackle (50 mm clearance)
• 41/45: Standard shackle (45 mm)
• 41/45HB50: Long shackle (50 mm clearance)
• 41/50: Standard shackle (50 mm)
• 41/50HB50: Long shackle (50 mm clearance)

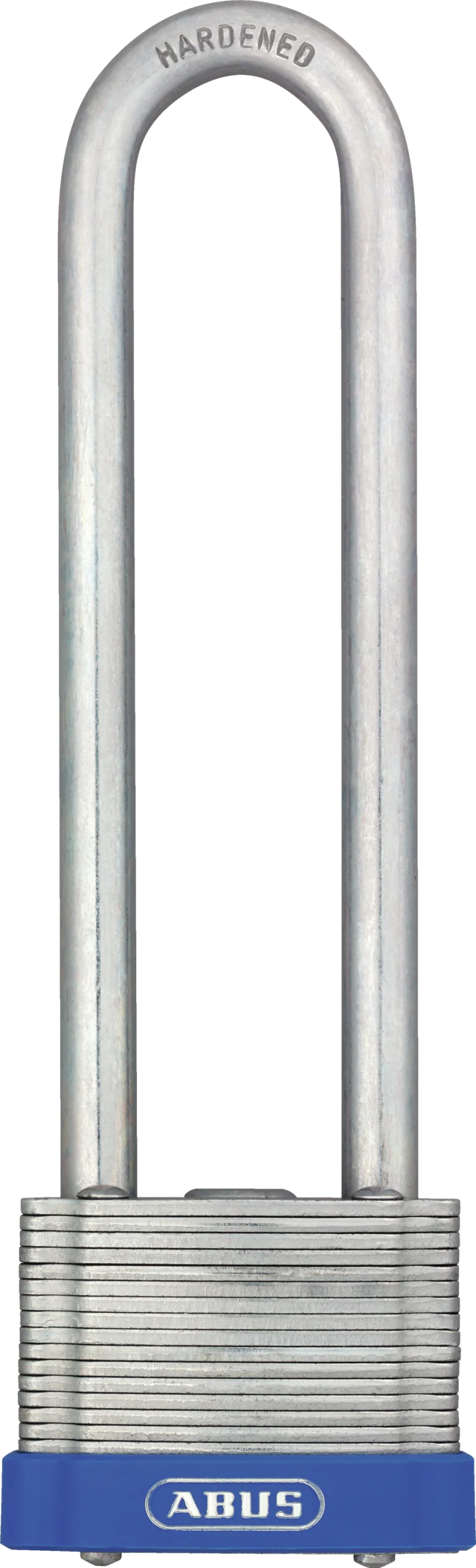

• 41/50HB125: Extra-long shackle (125 mm clearance)

Ideal Applications

• Gates, sheds, and storage units
• Workshops and toolboxes
• Lockers and utility enclosures
• General outdoor security

Specifications

• Product Type: Laminated Steel Padlock
• Locking Type: Keyed (Pin Tumbler Cylinder)
• Security Rating: Level 6–7 (depending on size)
• Indoor Use: Yes
• Outdoor Use: Yes
• Marine Use: No
• Material – Body: Laminated Steel (ETERNA™ coated)
• Material – Shackle: Hardened Steel Alloy
• Keyed Alike Option: Yes
• Master Key Option: Yes
• Key Retaining: No
• Key Type: 12874
• Keys Supplied: 2

Dimensions & Weight (All Variants)

• 41/40: 44 × 60 × 26 mm | 214 g | Ø 7 mm | Clearance: 18 × 20 mm
• 41/40HB50: 44 × 87 × 26 mm | 230 g | Ø 7 mm | Clearance: 18 × 50 mm
• 41/45: 49 × 67 × 28 mm | 280 g | Ø 8 mm | Clearance: 20 × 23 mm
• 41/45HB50: 49 × 94 × 28 mm | 309 g | Ø 8 mm | Clearance: 20 × 50 mm
• 41/50: 53 × 75 × 29 mm | 363 g | Ø 9 mm | Clearance: 23 × 25 mm
• 41/50HB50: 53 × 100 × 29 mm | 402 g | Ø 9 mm | Clearance: 23 × 50 mm
• 41/50HB125: 53 × 174 × 29 mm | 450 g | Ø 9 mm | Clearance: 23 × 125 mm

Design & Finish

• Colour: Steel
• Layered laminated construction for strength and durability
• Industrial, weather-resistant design

Additional Information

• Compatible with ABUS hasps: 100 Series (40/45), 110 Series (50)
• Compatible with ABUS chains: 6KS, 8KS, 10KS (depending on size)
• Long shackle (HB) variants ideal for extended reach applications

Packaging Information

• 1 × ABUS Laminated Steel 41 Series Padlock (selected variant)
• 2 × Keys included
