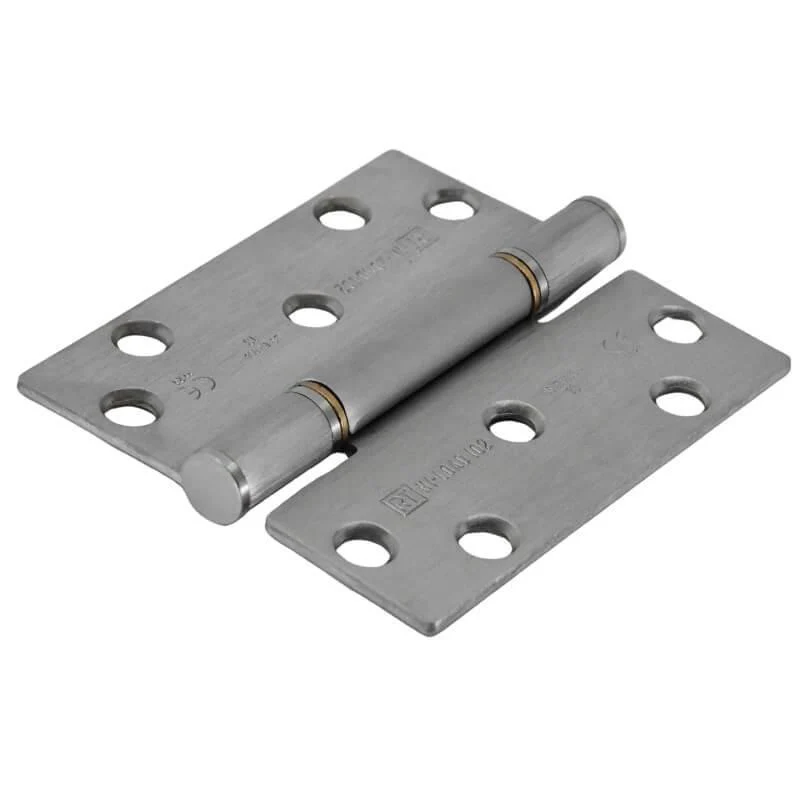

-65%H102 Hi-Load Steel Hinge - 100 x 88 x 3MM - Stainless Steel—
$20.30
$7.10The Story
The H102 Hi-Load Steel Hinges are three knuckle butt hinges have the following features:
- 100mm x 88mm overall dimensions
- 3mm gauge
- 13mm diameter knuckle
- Radiused or square corners
- Bright zinc plate or satin stainless steel finish
- Certifire approved CF209
- CE marked 1121-CPR-AC0063
- UKCA marked
- Maintenance free
- BS EN 1935 Grade 13
- Minimum door thickness 44mm
- Supplied with metric 5x32mm wood screws
- Maximum door weight 120kg with 3no hinges
- When installing these hi-load butt hinges to a fire rated door, use the HP102 intumescent hinge pads (code ITHM1-36)
*INTUMESCENT MUST BE USED TO ENSURE FULL COMPLIANCE WITH FIRE RATING.
Description
The H102 Hi-Load Steel Hinges are three knuckle butt hinges have the following features:
- 100mm x 88mm overall dimensions
- 3mm gauge
- 13mm diameter knuckle
- Radiused or square corners
- Bright zinc plate or satin stainless steel finish
- Certifire approved CF209
- CE marked 1121-CPR-AC0063
- UKCA marked
- Maintenance free
- BS EN 1935 Grade 13
- Minimum door thickness 44mm
- Supplied with metric 5x32mm wood screws
- Maximum door weight 120kg with 3no hinges
- When installing these hi-load butt hinges to a fire rated door, use the HP102 intumescent hinge pads (code ITHM1-36)
*INTUMESCENT MUST BE USED TO ENSURE FULL COMPLIANCE WITH FIRE RATING.
