Ermetika xREVERx Frameless Reversible Swing Door

Ermetika xREVERx Frameless Reversible Swing Door System

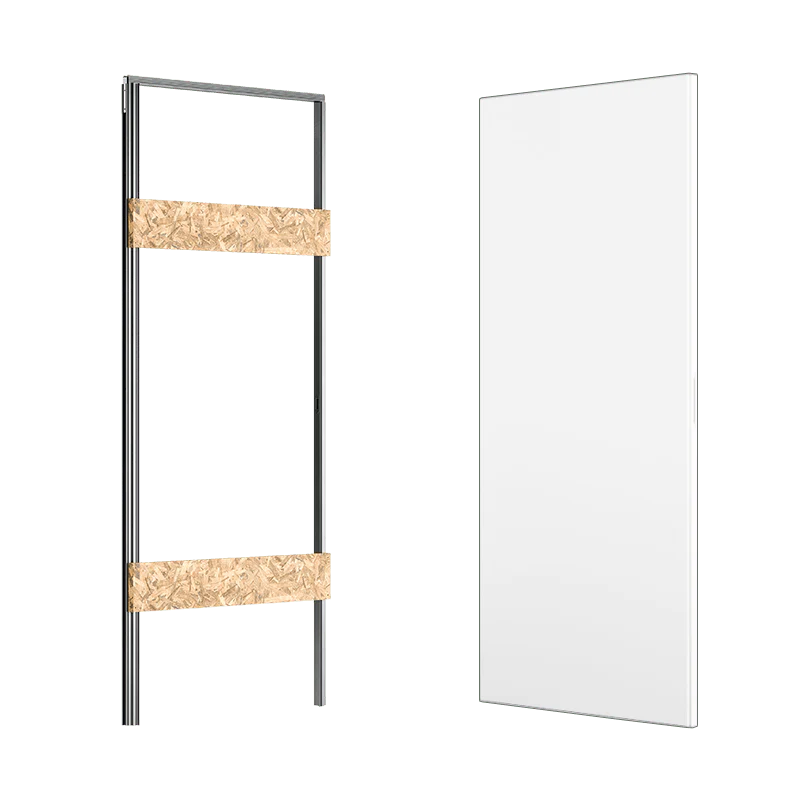

The Ermetika xREVERx is a fully frameless, reversible hinged door system designed to offer maximum flexibility and contemporary aesthetics. Supplied as a complete package—including door and frame—the xREVERx system allows the door to open left or right with a push or pull motion simply by rotating the frame during installation.

With no visible jambs or architraves, the xREVERx delivers a clean, minimalist appearance ideal for modern architectural spaces. It is available in standard sizes and suitable for both plastered and plasterboard walls. The door is pre-finished in white B011, ready to paint or wallpaper for complete design freedom, and provides a solid 25 dB acoustic performance.

Key Features

• Frameless, architrave-free design for a clean minimalist appearance
• Fully reversible system – push or pull, left or right opening
• Compatible with timber, metal, and masonry walls
• Door pre-finished in white B011, ready to paint or wallpaper
• 25 dB acoustic insulation for enhanced soundproofing
• Supplied with lock, strike plate, and 3x Anselmi Concealed Hinges
• Upgrade options available: Bathroom Lock, Euro Lock, Key Sashlock
• Optional antique brass and bronze finish locks with aluminium strike plates

Product Information

• Core Options:
  • Honeycomb Core: 1964mm height, 44mm thickness, widths: 600mm / 700mm / 800mm / 900mm
  • Chipboard Core: 2024mm height, 44mm thickness, widths: 600mm / 700mm / 800mm / 900mm
• Lock Preparation: Door predrilled for 50mm backset lock cut-out
• Hinge & Strike: Frame pre-cut for hinges and strike plate
• Supplied Hardware:
  • 3 × Anselmi Concealed Hinges (for 40kg door)
  • 1 × AGB Polaris 2XT Bathroom Lock (Satin Chrome) with strike plate
• Door Faces: Completely plain—handle cut-outs completed on site

Available Sizes

Passage Size	Door Size	Overall Kit Size
600 x 1970mm	613 x 1964mm	690 x 2000mm
700 x 1970mm	713 x 1964mm	790 x 2000mm
800 x 1970mm	813 x 1964mm	890 x 2000mm
900 x 1970mm	913 x 1964mm	990 x 2000mm
600 x 2030mm	613 x 2024mm	690 x 2060mm
700 x 2030mm	713 x 2024mm	790 x 2060mm
800 x 2030mm	813 x 2024mm	890 x 2060mm
900 x 2030mm	913 x 2024mm	990 x 2060mm

Specifications

• Product Type: Frameless Reversible Hinged Door System
• Category: Concealed Door Systems, Flush Doors
• Wall Compatibility: Plastered & plasterboard walls
• Finishing: Ready-to-paint white B011 surface
• Acoustic Rating: 25 dB
• Hardware Included: Hinges, lock, strike plate
• Customisation: Handle cut-out completed on site
• Opening Direction: Left/Right reversible; Push/Pull reversible
