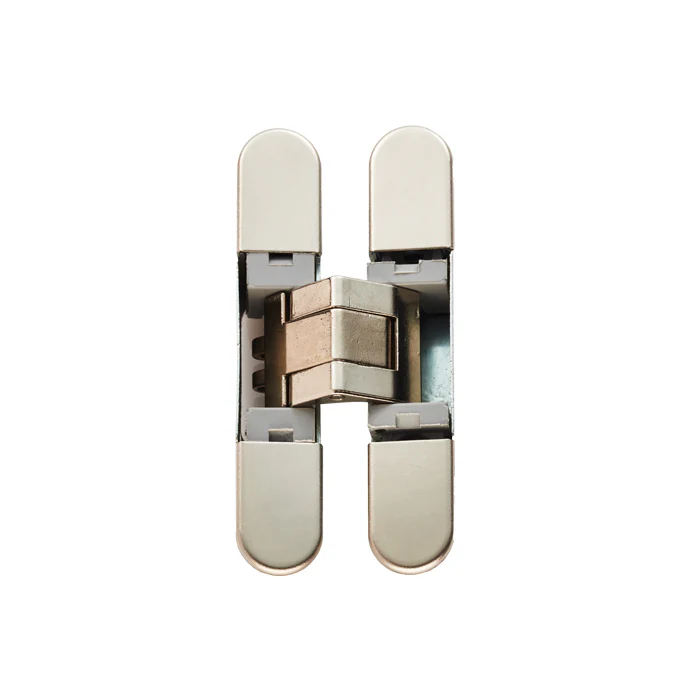

Ceam 3D Cabinet Concealed Hinge 929

Carlisle Brass Ceam 929 3D Adjustable Cabinet Hinge Details

The Carlisle Brass Ceam 929 3D Adjustable Cabinet Hinge delivers precision alignment with a concealed design, perfect for modern wardrobes, cabinets, and furniture applications. Offering 180° opening and full 3-axis adjustment, it provides smooth function and a clean, minimalist look while supporting doors up to 21kg.

Key Features:

• 3D adjustment (height, side, and depth) via 2.5mm Allen key (not supplied – see UPSETREG1)
• 180° opening capability
• Fixings fully concealed for a seamless appearance
• Works with inset or lay-on cabinet doors
• Suitable for cabinet carcasses & doors from 18mm thick
• High durability for long-term performance

Load Capacity:

• 12kg – with 2 hinges
• 16kg – with 3 hinges
• 21kg – with 4 hinges

Specifications:

• Brand: Carlisle Brass
• Model: Ceam 929
• Type: 3D Concealed Hinge
• Application: Cabinet, wardrobe, furniture doors
• Material: High-quality metal construction
• Door Thickness: 18mm+
• Max Weight: Up to 21kg (with 4 hinges)

Finishes Available:

• Satin Chrome
• Polished Chrome
• Nickel Plated
• Brass Plated

Please Note: All Ceam Hinges are supplied individually (singles).
