Brass 85 & 85IB Series – Traditional Brass Padlock

ABUS Brass 85 & 85IB Series – Traditional Brass Padlock with NANO PROTECT™ Shackle (All Variants)

The ABUS Brass 85 and 85IB Series Padlock delivers a trusted combination of classic solid brass construction, advanced NANO PROTECT™ corrosion resistance, and exceptional versatility across one of the most comprehensive size and variant ranges in the ABUS padlock portfolio. Built from solid brass — a material that can never rust — and fitted with a hardened steel shackle featuring NANO PROTECT™ plating for extreme corrosion resistance, the 85 Series has been a cornerstone of the ABUS range for decades, purpose-built to meet the demands of international markets across a vast range of indoor and outdoor applications.

Designed with a paracentric keyway for increased protection against manipulation, rust-free high quality inner components, and a precision cylinder that can be keyed alike to existing keys and locks, the 85 Series provides dependable protection with outstanding key management flexibility. The 85IB variants feature a stainless steel shackle for superior marine-grade corrosion resistance, and serviceable padlocks with pinning kits are available across the range. An exceptional selection of body sizes from 20 mm to 70 mm, long shackle (HB) variants including extended clearances up to 200 mm, and optional brass shackle (MB) variants on selected sizes ensure the 85 Series offers a precisely suited solution for virtually any application.

Key Features

• Solid brass lock body that cannot rust for long-term corrosion resistance
• Hardened steel shackle with NANO PROTECT™ plating for extreme corrosion resistance
• Paracentric keyway for increased protection against picking and manipulation
• Inner components made from rust-free high quality materials
• Automatic locking function (push-down shackle, no key required)
• Can be keyed alike to existing keys and locks
• Integration into master key systems supported
• Serviceable padlocks and pinning kits available across the range
• 85IB variants feature stainless steel shackle for marine-grade corrosion resistance
• Brass shackle (MB) variants available in 30, 40, 50, and 60 mm on special request
• Available in sizes 20, 25, 30, 40, 50, 60, and 70 mm
• Long shackle (HB) variants with clearances from 22 mm up to 200 mm
• Suitable for indoor and outdoor use (85 Series) and marine use (85IB Series)

Variant Options

85 Series (Brass Body / Hardened Steel NANO PROTECT™ Shackle):

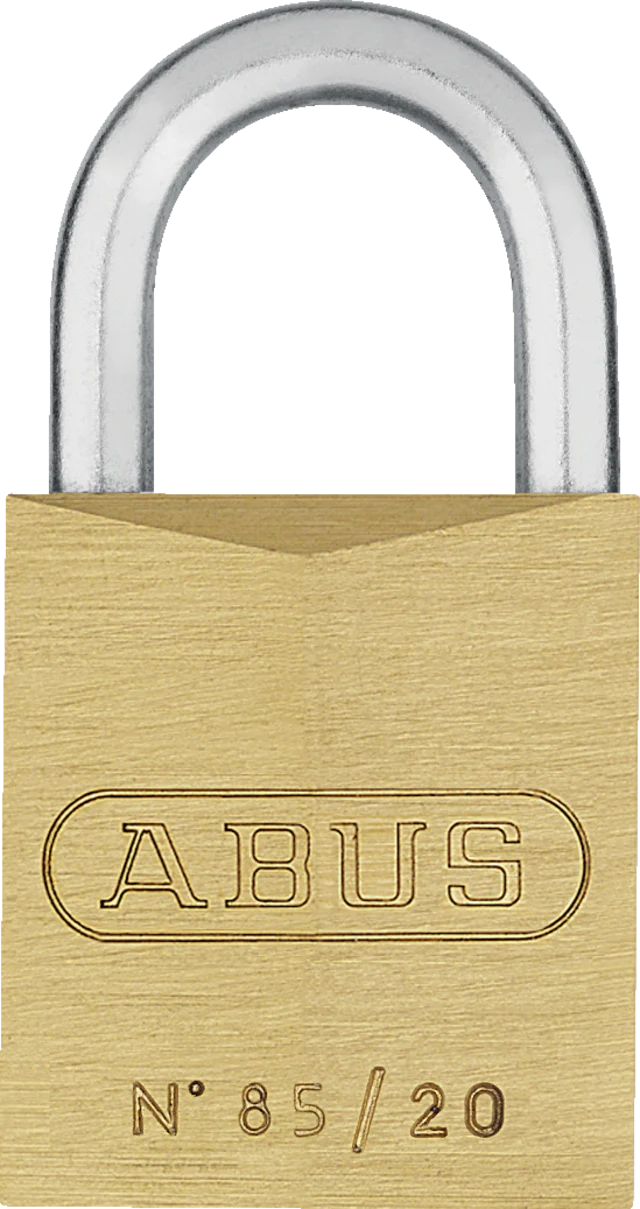

• 85/20: Standard shackle (20 mm body)

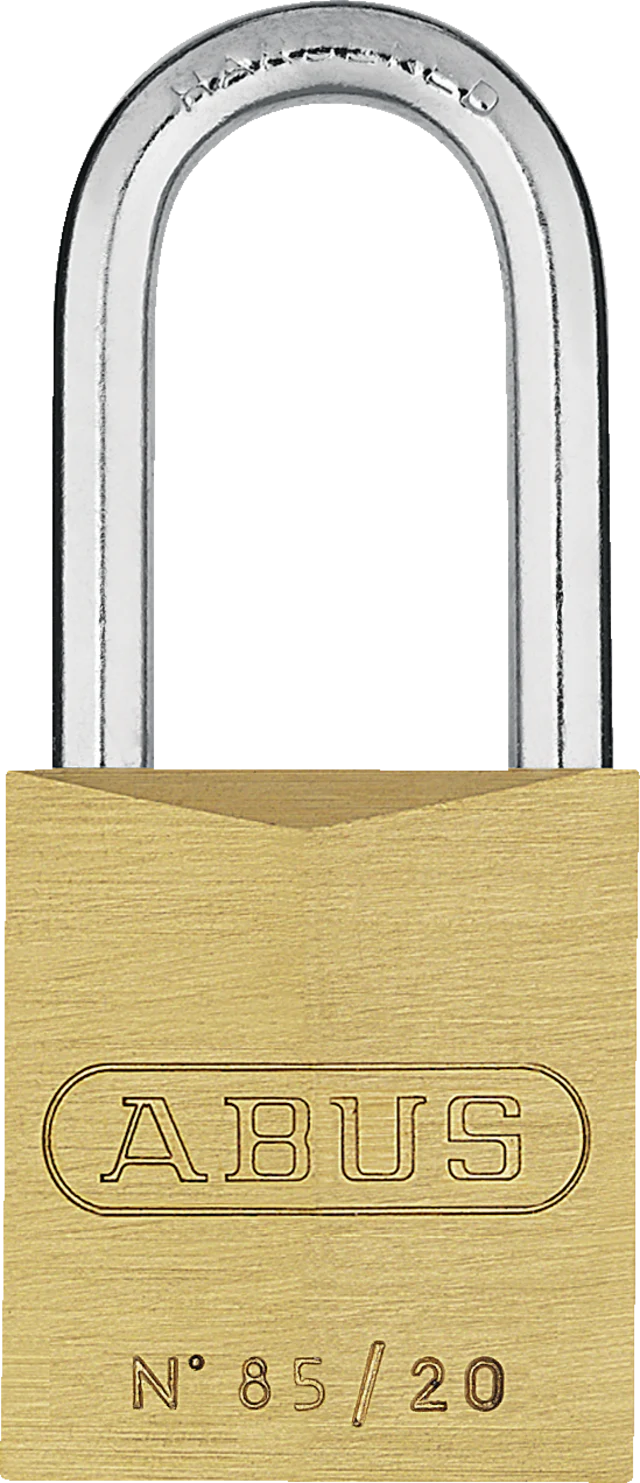

• 85/20HB22: Long shackle (22 mm vertical clearance)

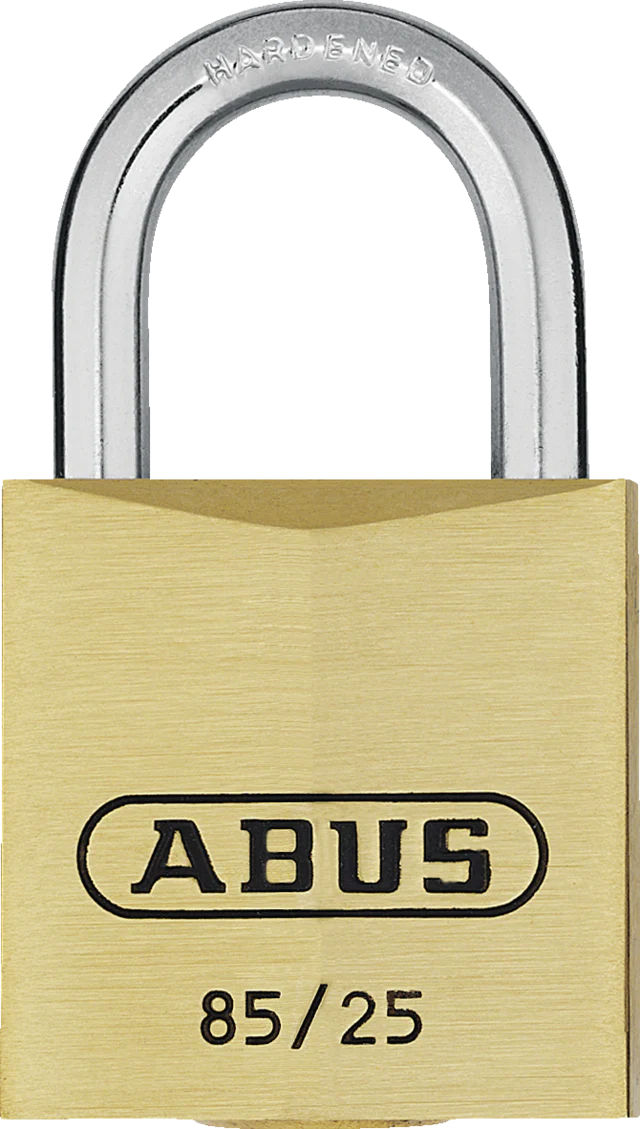

• 85/25: Standard shackle (25 mm body)

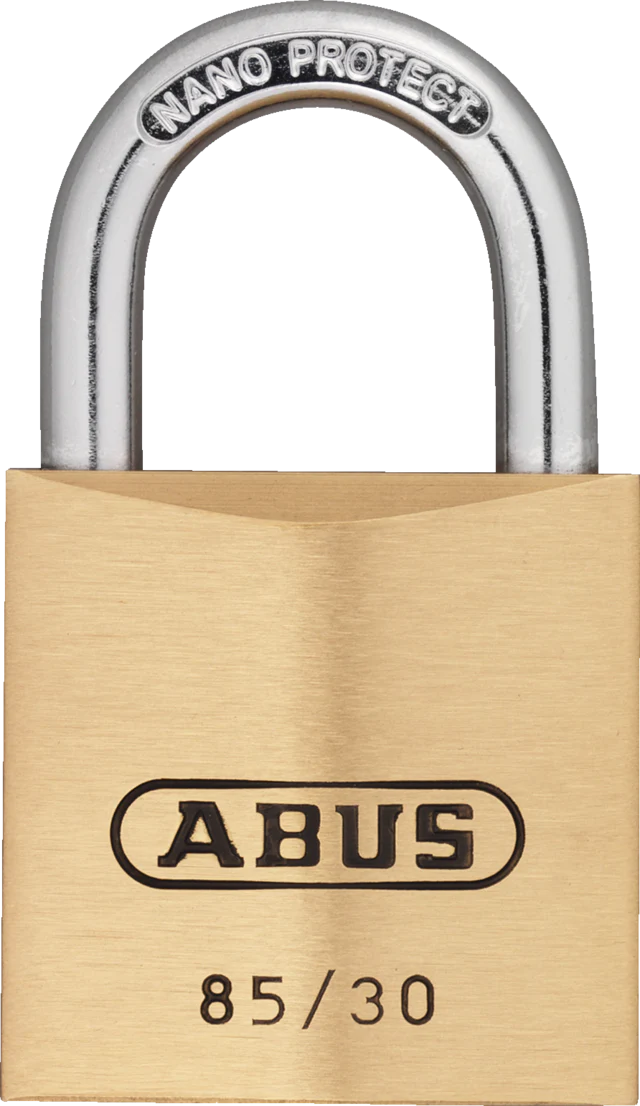

• 85/30: Standard shackle (30 mm body)

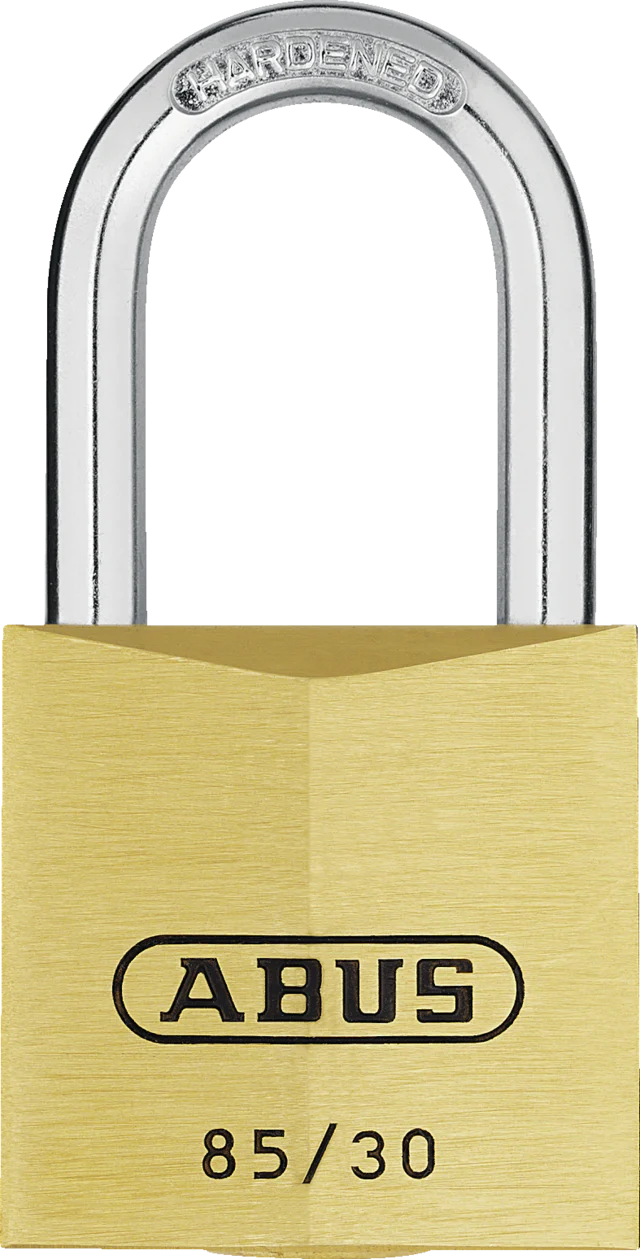

• 85/30HB24: Long shackle (24 mm vertical clearance)

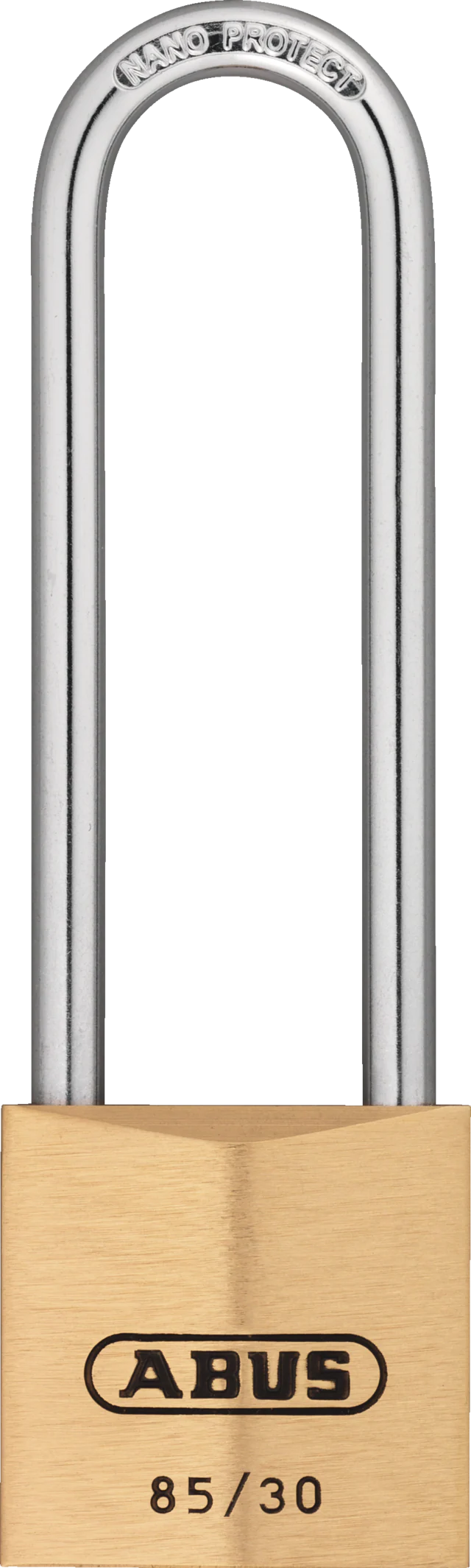

• 85/30HB65: Long shackle (65 mm vertical clearance)

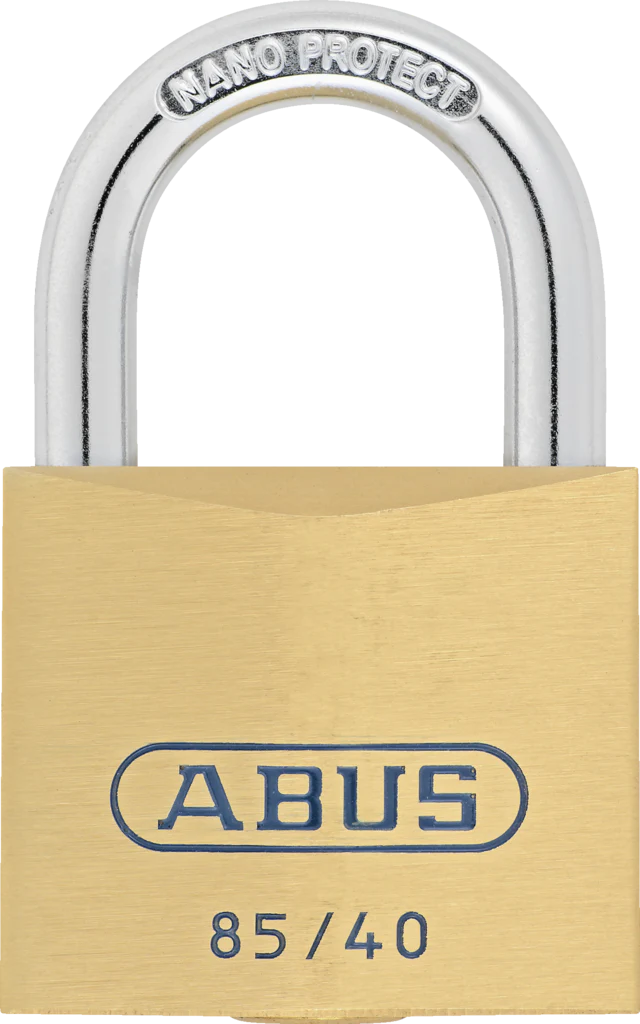

• 85/40: Standard shackle (40 mm body)

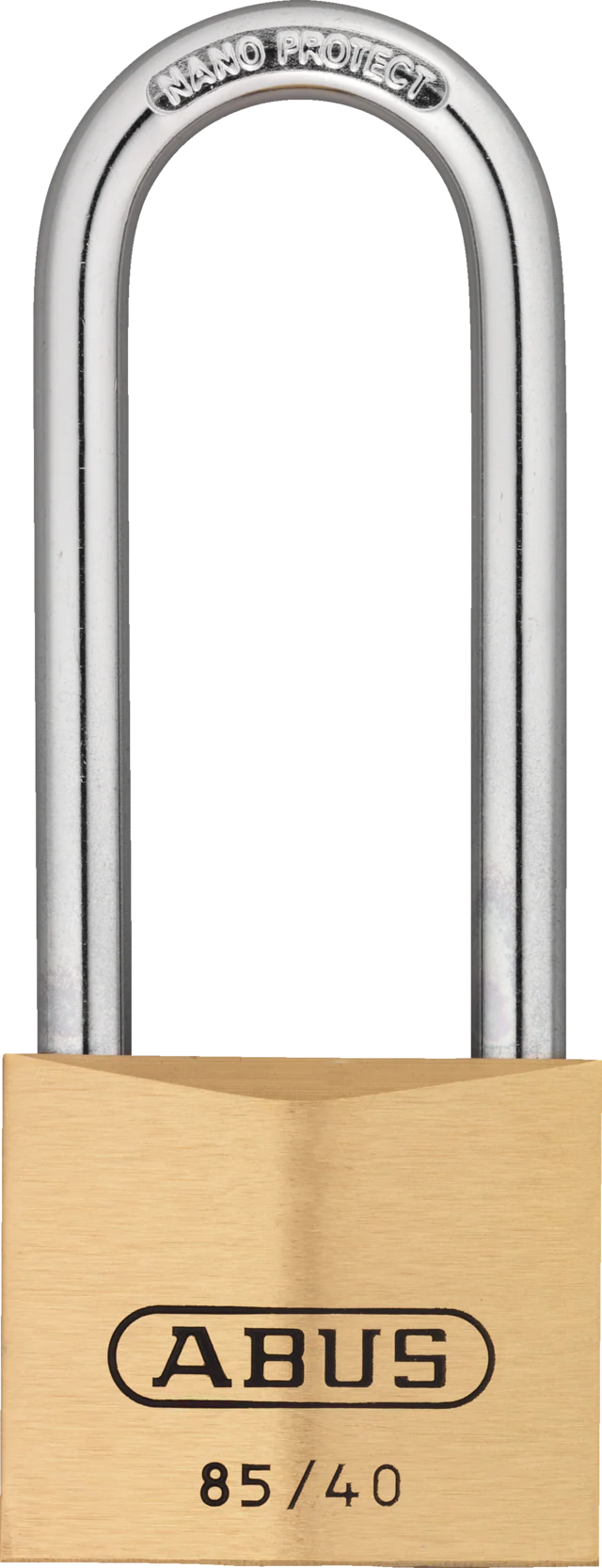

• 85/40HB40: Long shackle (40 mm vertical clearance)
• 85/40HB63: Long shackle (63 mm vertical clearance)

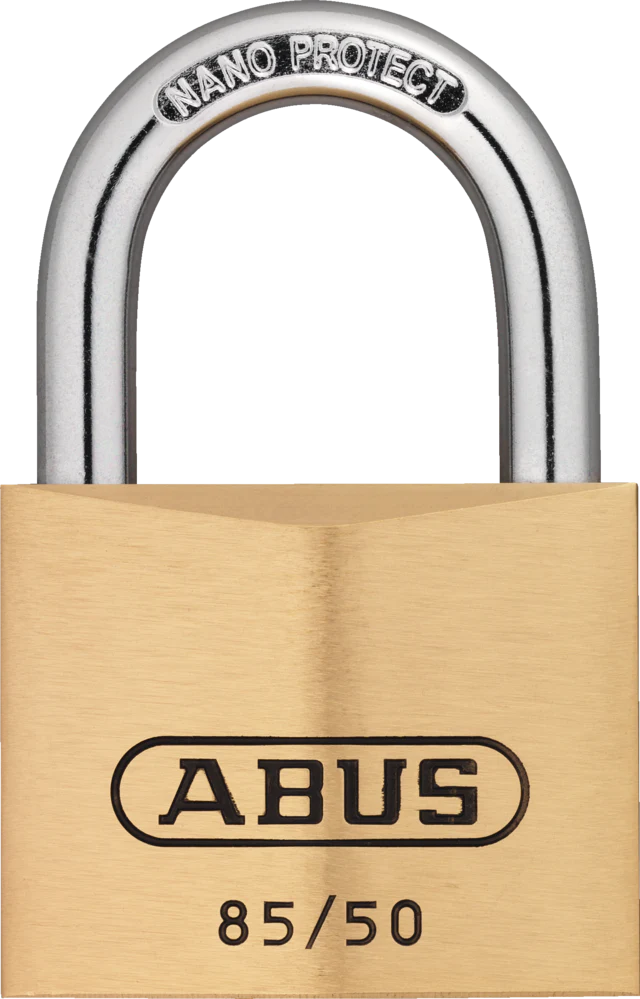

• 85/50: Standard shackle (50 mm body)

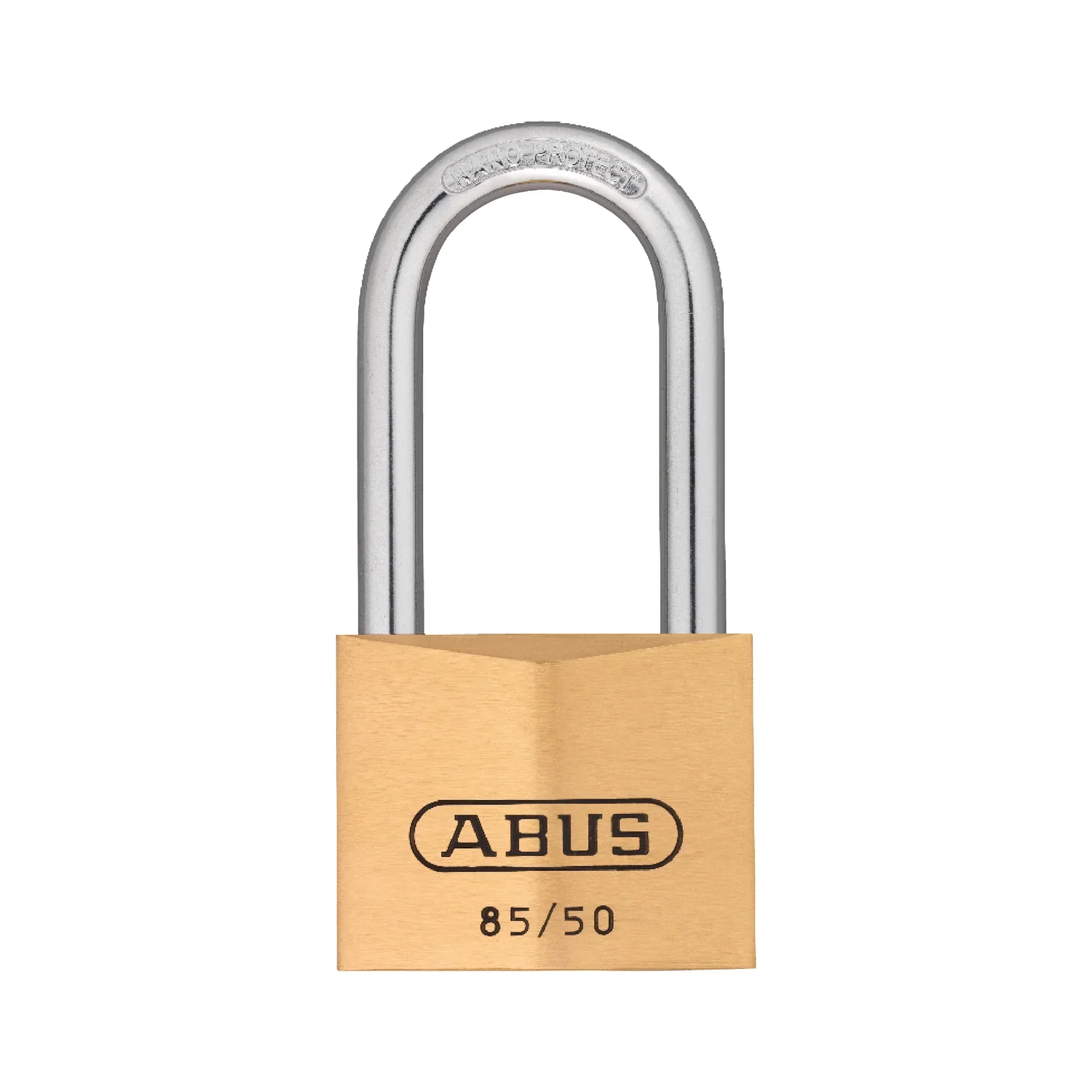

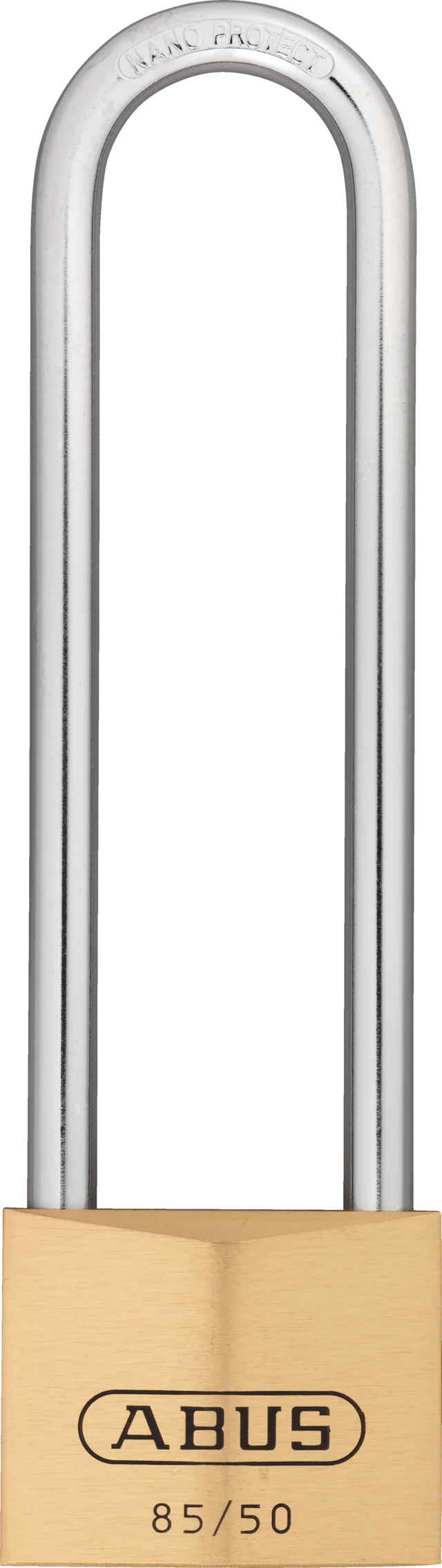

• 85/50HB80: Long shackle (80 mm vertical clearance)
• 85/50HB127: Long shackle (127 mm vertical clearance)

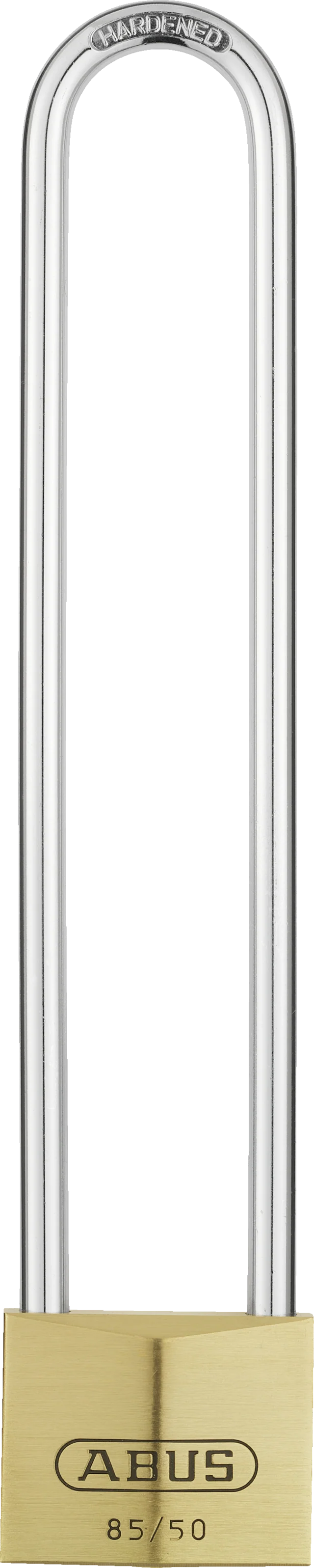

• 85/50HB200: Long shackle (200 mm vertical clearance)
• 85/60: Standard shackle (60 mm body)
• 85/70: Standard shackle (70 mm body)

85IB Series (Brass Body / Stainless Steel Shackle — Marine Grade):

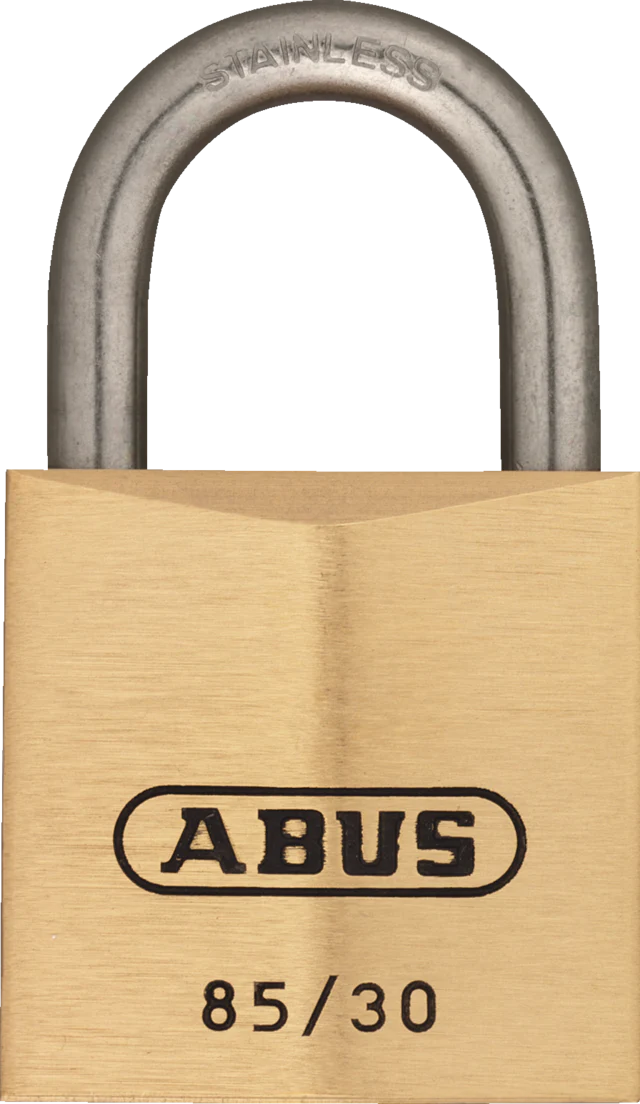

• 85IB/30: Standard shackle (30 mm body)
• 85IB/40: Standard shackle (40 mm body)

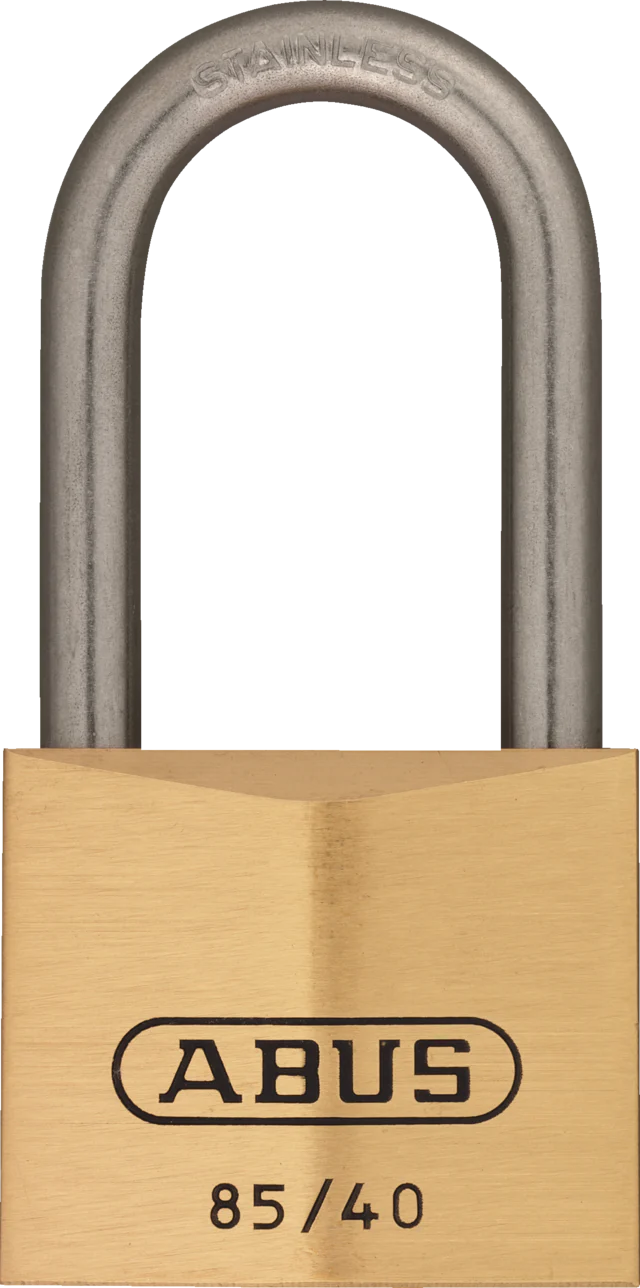

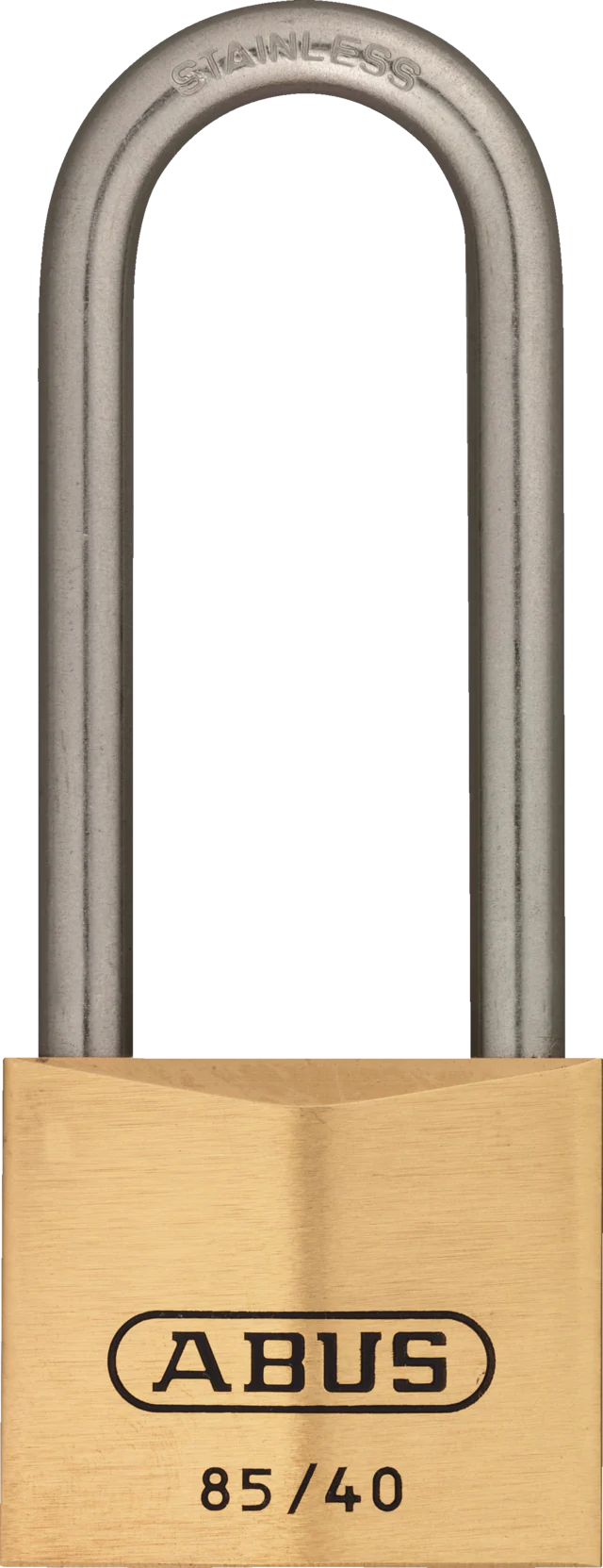

• 85IB/40HB40: Long shackle (40 mm vertical clearance)
• 85IB/40HB63: Long shackle (63 mm vertical clearance)

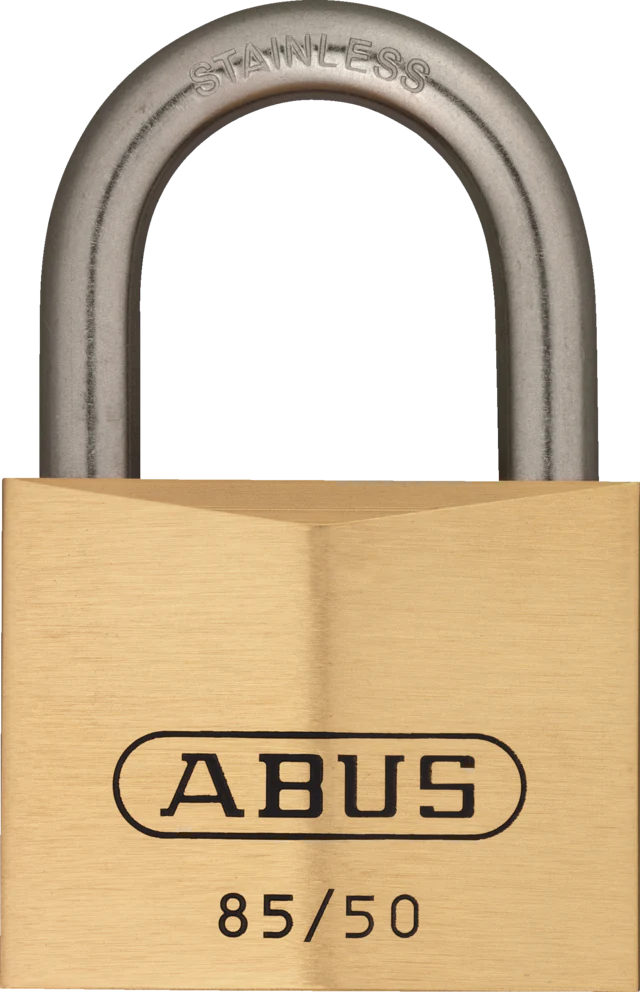

• 85IB/50: Standard shackle (50 mm body)

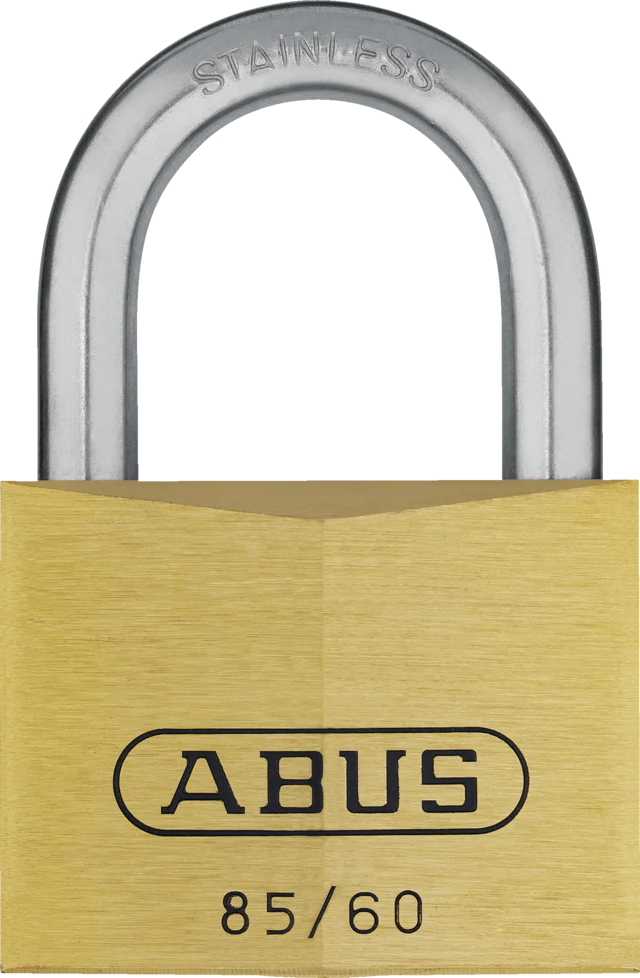

• 85IB/60: Standard shackle (60 mm body)

Ideal Applications

• Outdoor gates, sheds, and storage units
• Marine and coastal environments (85IB Series)
• Lockers, cabinets, and utility enclosures
• Extended reach applications requiring long shackle variants
• International and export applications requiring corrosion-resistant locking
• General indoor and outdoor security across a wide range of sizes

Specifications

• Product Type: Traditional Brass Padlock with NANO PROTECT™ Shackle
• Locking Type: Keyed (Paracentric Cylinder)
• Security Rating: Level 4 (85/20, 85/20HB22, 85/25) | Level 5 (85/30, 85/30HB24, 85/30HB65, 85IB/30) | Level 6 (85/40, 85/40HB40, 85/40HB63, 85IB/40, 85IB/40HB40, 85IB/40HB63) | Level 7 (85/50, 85/50HB80, 85/50HB127, 85/50HB200, 85/60, 85IB/50, 85IB/60) | Level 8 (85/70)
• Indoor Use: Yes
• Outdoor Use: Yes
• Marine Use: No (85 Series) | Yes (85IB Series)
• Safety Use: No
• High Security Use: No
• Material – Body: Solid Brass (all variants)
• Colour: Brass (all variants)
• Material – Shackle: Hardened Steel with NANO PROTECT™ (85 Series) | Stainless Steel (85IB Series)
• Shackle Type: Standard (Open) | Long (HB variants)
• Removable Shackle: No
• Keyed Alike Option: Yes (all variants)
• Master Key Option: Yes (all variants)
• Key Retaining: No
• Key Type: 02700 (20 mm variants) | 02701 (25 mm and 30 mm variants) | 02702 (40 mm variants) | 02703 (50 mm and 60 mm variants) | 02698 (85/70) | 02701 (85IB/30) | 02702 (85IB/40 variants) | 02703 (85IB/50, 85IB/60)
• Keys Supplied: 2

Dimensions & Weight (All Variants)

85 Series:

• 85/20: 21 × 39 × 13 mm | 55 g | Ø 3 mm | Clearance: 12 × 12 mm
• 85/20HB22: 21 × 48 × 13 mm | 58 g | Ø 4 mm | Clearance: 12 × 22 mm
• 85/25: 25 × 44 × 13 mm | 65 g | Ø 4 mm | Clearance: 14 × 15 mm
• 85/30: 30 × 51 × 14 mm | 93 g | Ø 5 mm | Clearance: 16 × 16.5 mm
• 85/30HB24: 30 × 58 × 12.5 mm | 94 g | Ø 5 mm | Clearance: 16 × 23.5 mm
• 85/30HB65: 30 × 99 × 12.5 mm | 107 g | Ø 5 mm | Clearance: 16 × 65.5 mm
• 85/40: 40 × 62 × 16 mm | 170 g | Ø 6.5 mm | Clearance: 22 × 22.5 mm
• 85/40HB40: 40 × 79 × 16 mm | 175 g | Ø 6.5 mm | Clearance: 22 × 39 mm
• 85/40HB63: 40 × 103 × 16 mm | 193 g | Ø 6.5 mm | Clearance: 22 × 62.5 mm
• 85/50: 50 × 77 × 18 mm | 272 g | Ø 8 mm | Clearance: 28 × 28.5 mm
• 85/50HB80: 50 × 129 × 18 mm | 324 g | Ø 8 mm | Clearance: 28 × 80 mm
• 85/50HB127: 50 × 176 × 18 mm | 351 g | Ø 8 mm | Clearance: 28 × 127 mm
• 85/50HB200: 50 × 248 × 17 mm | 421 g | Ø 8 mm | Clearance: 29 × 200 mm
• 85/60: 60 × 90 × 19.5 mm | 460 g | Ø 10 mm | Clearance: 33.5 × 34 mm
• 85/70: 70 × 98 × 19 mm | 582 g | Ø 11 mm | Clearance: 38.5 × 25.5 mm

85IB Series:

• 85IB/30: 30 × 51 × 14 mm | 93 g | Ø 5 mm | Clearance: 16 × 16.5 mm
• 85IB/40: 40 × 62 × 16 mm | 170 g | Ø 6.5 mm | Clearance: 22 × 22.5 mm
• 85IB/40HB40: 40 × 79 × 16 mm | 175 g | Ø 6.5 mm | Clearance: 22 × 40 mm
• 85IB/40HB63: 40 × 102 × 15 mm | 188 g | Ø 6.5 mm | Clearance: 22 × 63 mm
• 85IB/50: 50 × 77 × 17 mm | 279 g | Ø 8 mm | Clearance: 28 × 28.5 mm
• 85IB/60: 60 × 91 × 19 mm | 417 g | Ø 10 mm | Clearance: 35 × 37 mm

Design & Finish

• Colour: Brass (all variants)
• Classic solid brass construction with timeless padlock aesthetic trusted across international markets for decades
• NANO PROTECT™ shackle plating delivers superior corrosion resistance even in harsh outdoor conditions
• Stainless steel shackle on 85IB variants provides maximum resistance to saltwater and marine corrosion
• Extensive size range from 20 mm to 70 mm body width covers the broadest possible spectrum of security applications

Additional Information

• Compatible with ABUS hasps: 200 Series (85/20, 85/20HB22, 85/25, 85/30 variants) | 100 Series (85/40 and above, all 85IB variants)
• Compatible with ABUS chains: 6KS (20 mm to 40 mm variants and 85IB/30, 85IB/40 variants) | 8KS (50 mm and 60 mm variants and 85IB/50) | 10KS (85/70)
• Long shackle (HB) variants ideal for extended reach applications up to 200 mm vertical clearance
• Brass shackle (MB) variants available in 30, 40, 50, and 60 mm body sizes on special request
• Serviceable padlocks and pinning kits available for maintenance and key system flexibility
• Solid brass body eliminates the risk of rust in outdoor and humid environments

Packaging Information

• 1 × ABUS Brass 85 or 85IB Series Padlock (selected variant)
• 2 × Keys included
