Brass 70 Series – Sealed Weatherproof Padlock

ABUS Brass 70 Series – Sealed Weatherproof Padlock with Plastic Coating (All Variants)

The ABUS Brass 70 Series Padlock delivers reliable security and outstanding weather resistance, making it an excellent choice for protection in extreme weather conditions and harsh environments. Built from a solid brass lock body with a shock-absorbing plastic coating, each lock is engineered to withstand corrosion and physical wear for long-term dependable performance.

Designed with a hardened steel shackle — also plastic coated — and a sealed lock body featuring a special protective cap and drainage channels, the Brass 70 Series ensures that water spray and dirt cannot penetrate the locking mechanism. A paracentric key profile provides increased resistance to picking and manipulation, while the self-locking function allows convenient locking without a key. Multiple sizes and a long shackle (HB) variant ensure flexibility across a wide range of demanding applications.

Key Features

• Solid brass lock body with shock-absorbing plastic coating for surface protection
• Hardened steel shackle with plastic sleeve for corrosion resistance
• Sealed lock body with special protective cap and drainage channels
• Prevents water spray and dirt from penetrating the locking mechanism
• Paracentric key profile for increased protection against manipulation
• Inner components made from rust-free materials
• Self-locking function (push-down shackle, no key required)
• Suitable for indoor, outdoor, and marine use
• Available in standard and long shackle (HB) variants

Variant Options

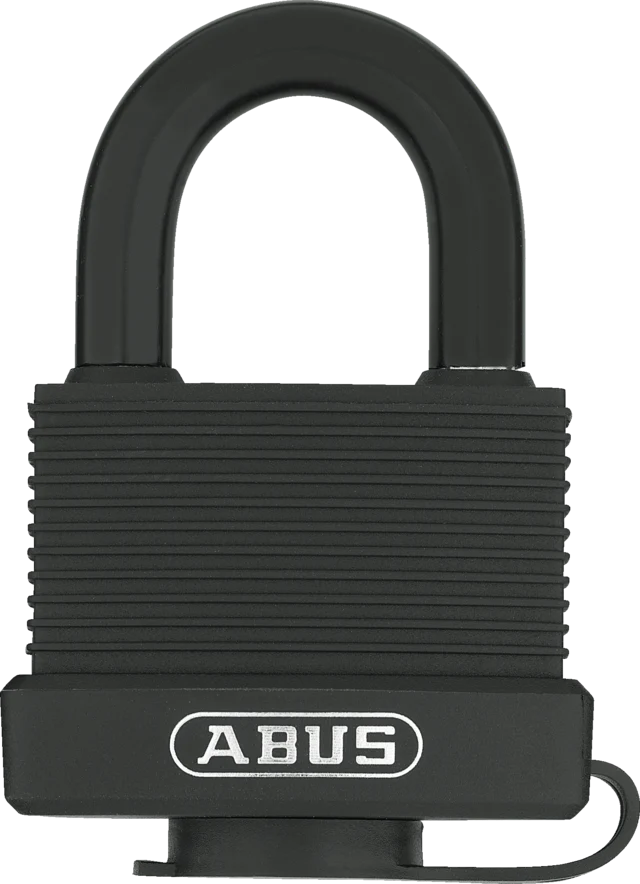

• 70/45: Standard shackle (45 mm body)

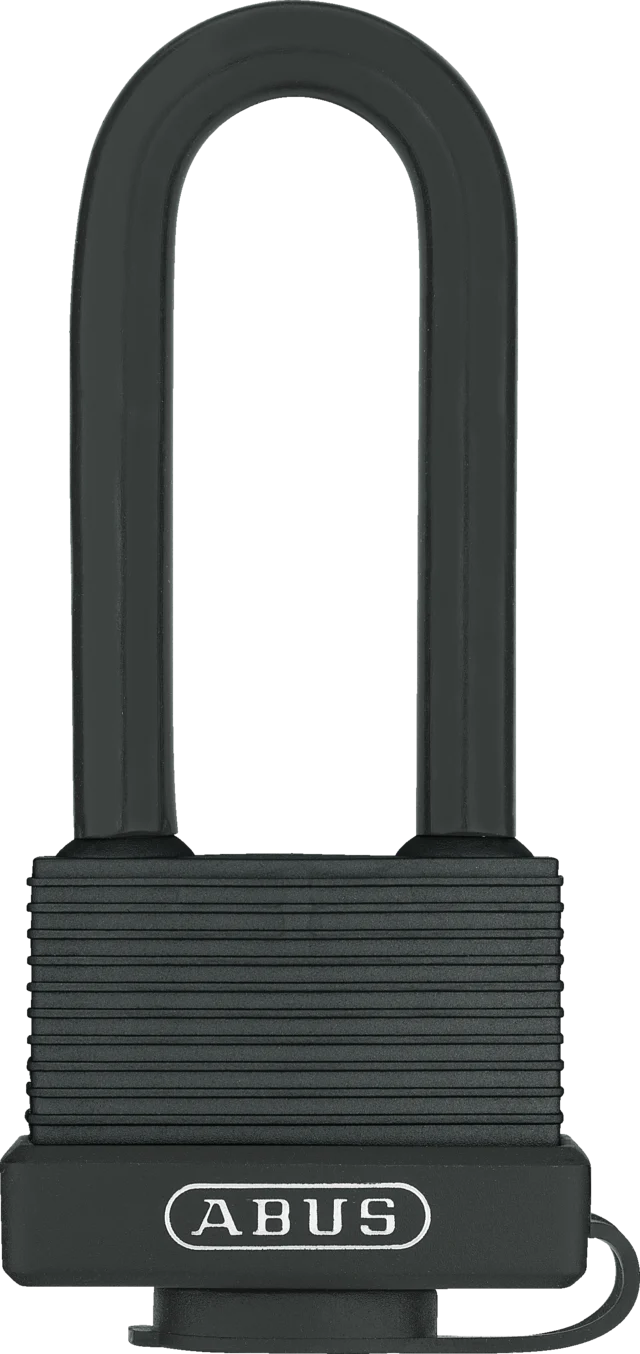

• 70/45HB63: Long shackle (63 mm vertical clearance)
• 70/50: Standard shackle (50 mm body)

Ideal Applications

• Marine and coastal environments
• Outdoor gates, sheds, and storage units
• Extreme weather and harsh industrial environments
• Equipment, containers, and utility enclosures

Specifications

• Product Type: Sealed Weatherproof Padlock
• Locking Type: Keyed (Paracentric Cylinder)
• Security Rating: Level 5 (70/45, 70/45HB63) | Level 6 (70/50)
• Indoor Use: Yes
• Outdoor Use: Yes
• Marine Use: Yes
• Safety Use: No
• High Security Use: No
• Material – Body: Solid Brass / Plastic Coated
• Colour: Black
• Material – Shackle: Hardened Steel / Plastic Coated
• Removable Shackle: No
• Keyed Alike Option: No (70/45, 70/45HB63) | Yes (70/50)
• Master Key Option: No
• Key Retaining: No
• Key Type: 12022
• Keys Supplied: 2

Dimensions & Weight (All Variants)

• 70/45: 49 × 74 × 27.5 mm | 180 g | Ø 8 mm | Clearance: 20 × 24 mm
• 70/45HB63: 49 × 112 × 28 mm | 210 g | Ø 8 mm | Clearance: 20 × 63 mm
• 70/50: 55 × 81.5 × 31 mm | 232 g | Ø 9 mm | Clearance: 23.5 × 27.5 mm

Design & Finish

• Colour: Black
• Solid brass construction with full plastic over-moulding for surface and corrosion protection
• Purpose-built for durability in wet, coastal, and weather-exposed environments

Additional Information

• Compatible with ABUS hasps: 100 Series
• Compatible with ABUS chains: 8KS
• Long shackle (HB) variant ideal for extended reach applications
• Plastic coating protects sensitive surfaces from scratching and impact damage

Packaging Information

• 1 × ABUS Brass 70 Series Padlock (selected variant)
• 2 × Keys included
