Brass 65 Series – Premium Brass Padlock

BRASS 65 Series Padlock – Traditional Brass Security with NANO PROTECT™

The BRASS 65 Series is a trusted, all-purpose padlock range built with a solid brass body and hardened steel shackle. Designed for both indoor and outdoor applications, it offers dependable corrosion resistance and flexible configurations including long shackle, closed shackle, marine-grade, and anti-spark variants.

Key Features

• Solid brass lock body – naturally corrosion resistant
• Hardened steel shackle with NANO PROTECT™ coating
• Precision pin tumbler cylinder
• Self-locking mechanism (push-down locking)
• Available in multiple sizes from 20 mm to 60 mm
• Long shackle (HB), closed shackle (CS), and marine (IB) variants
• Brass shackle option (MB) for anti-spark environments
• Keyed alike options available on selected variants

Available Variants

• Standard Sizes: 65/20, 65/25, 65/30, 65/35, 65/40, 65/45, 65/50, 65/60
• Long Shackle: 65/30HB60, 65/40HB40, 65/40HB63, 65/50HB80
• Closed Shackle: 65CS/40, 65CS/50
• Marine Grade (Stainless Shackle): 65IB/30, 65IB/40, 65IB/40HB63, 65IB/50
• Anti-Spark Brass Shackle: 65MB/15, 65MB/30HB70

Dimensions & Weight

• 65/20: 20×34×10 mm | Shackle Ø 4 mm | Weight 36 g
• 65/25: 25×42×12 mm | Shackle Ø 4 mm | Weight 63 g

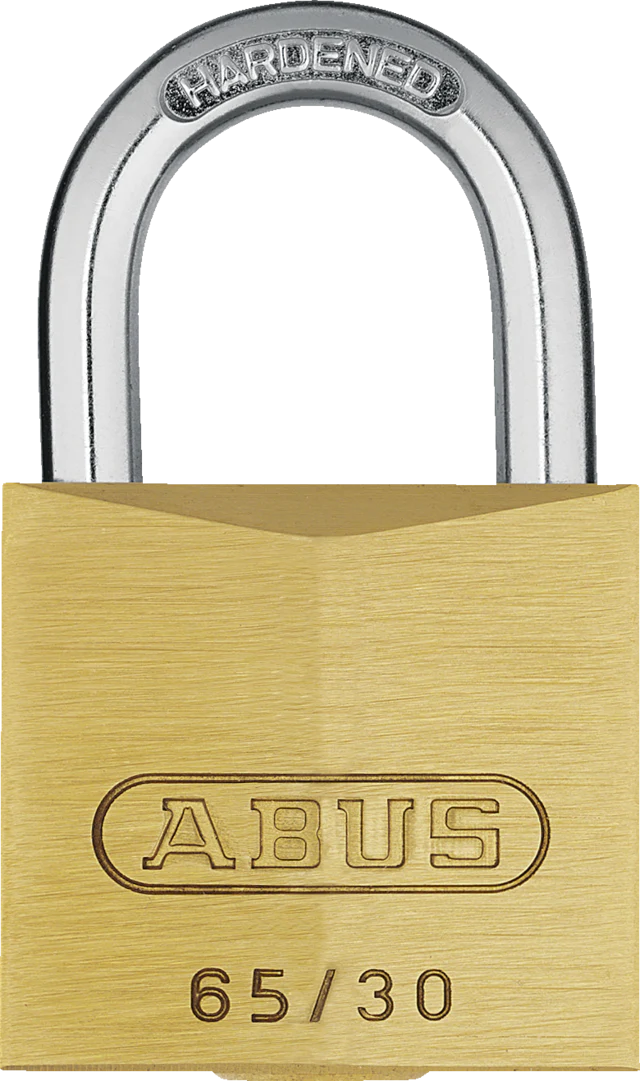

• 65/30: 30×50×14 mm | Shackle Ø 5 mm | Weight 92 g

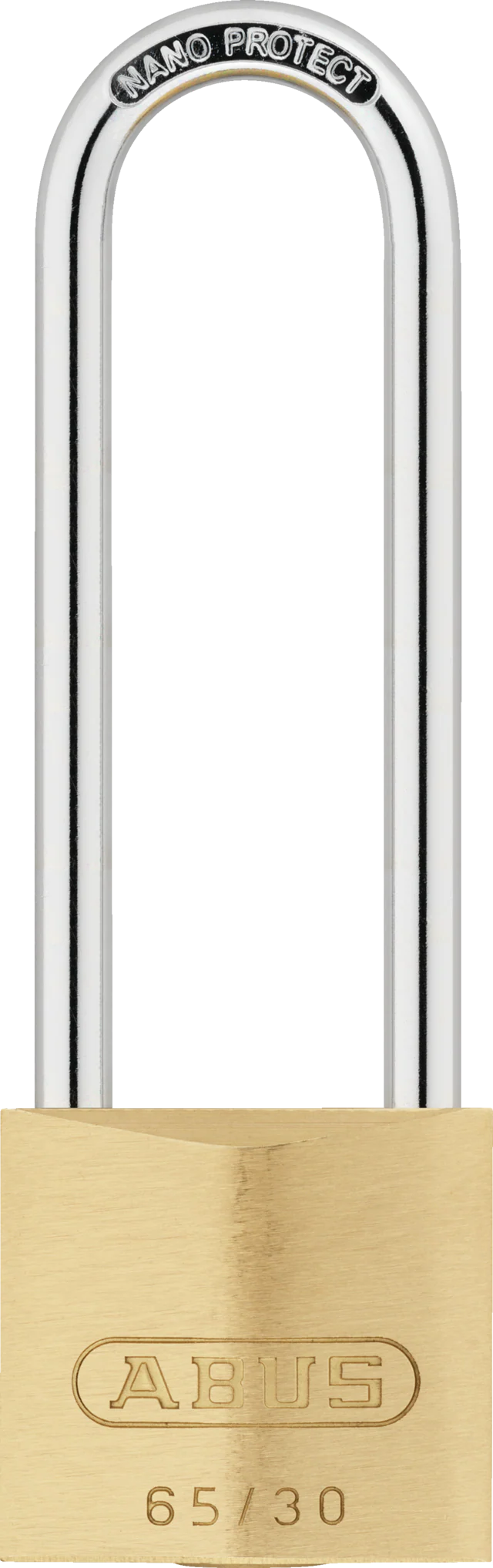

• 65/30HB60: 30×93×14 mm | Clearance 60 mm | Weight 110 g
• 65/35: 35×55×15 mm | Shackle Ø 6 mm | Weight 118 g
• 65/40: 40×62×15 mm | Shackle Ø 6.5 mm | Weight 160 g
• 65/40HB40: 40×77×15 mm | Clearance 40 mm | Weight 171 g

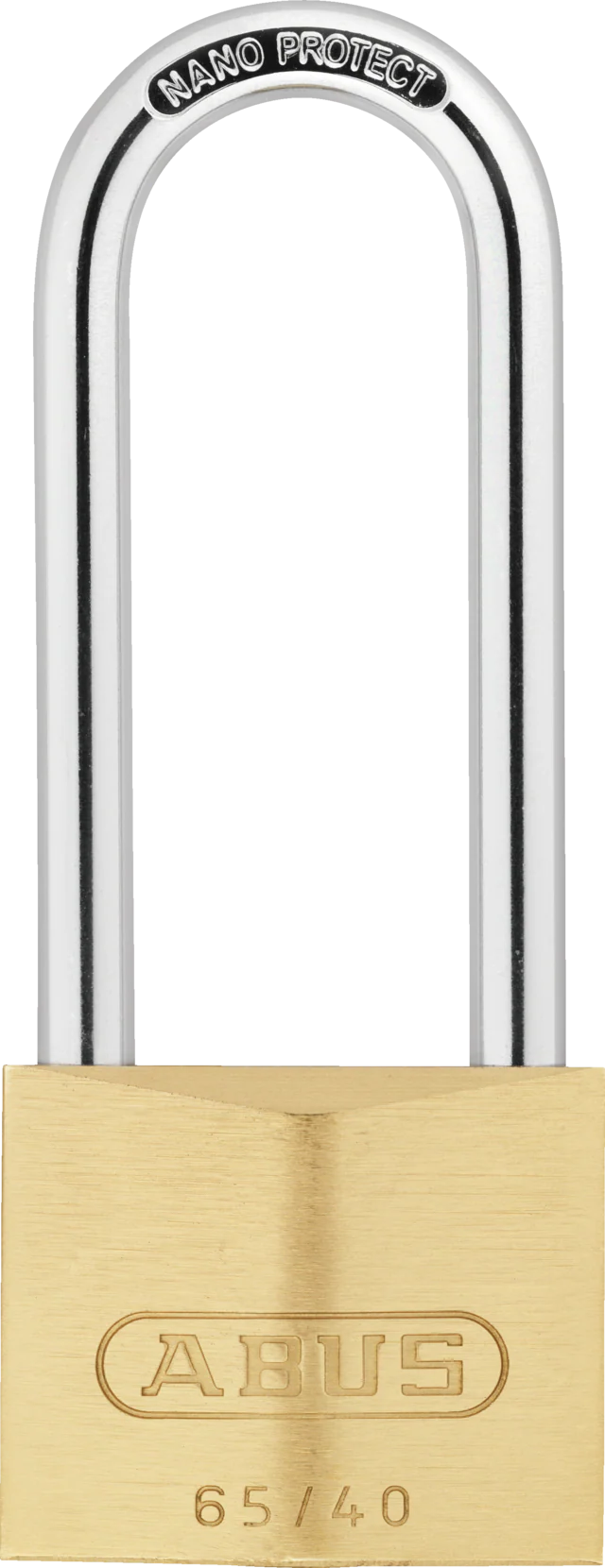

• 65/40HB63: 40×103×15 mm | Clearance 63 mm | Weight 183 g
• 65CS/40: 40×60×15 mm | Closed shackle | Weight 216 g

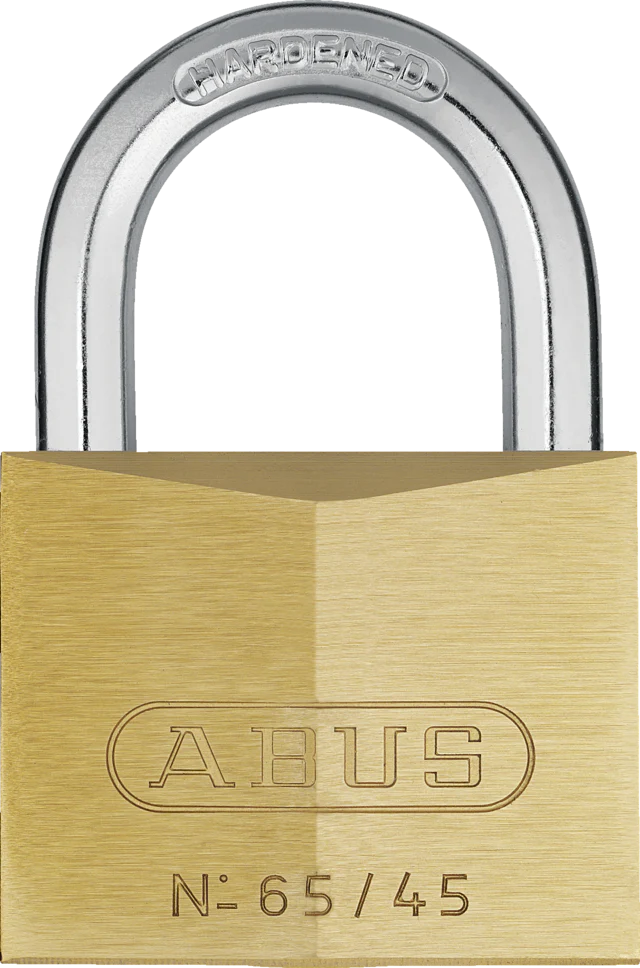

• 65/45: 45×68×16 mm | Shackle Ø 7 mm | Weight 201 g

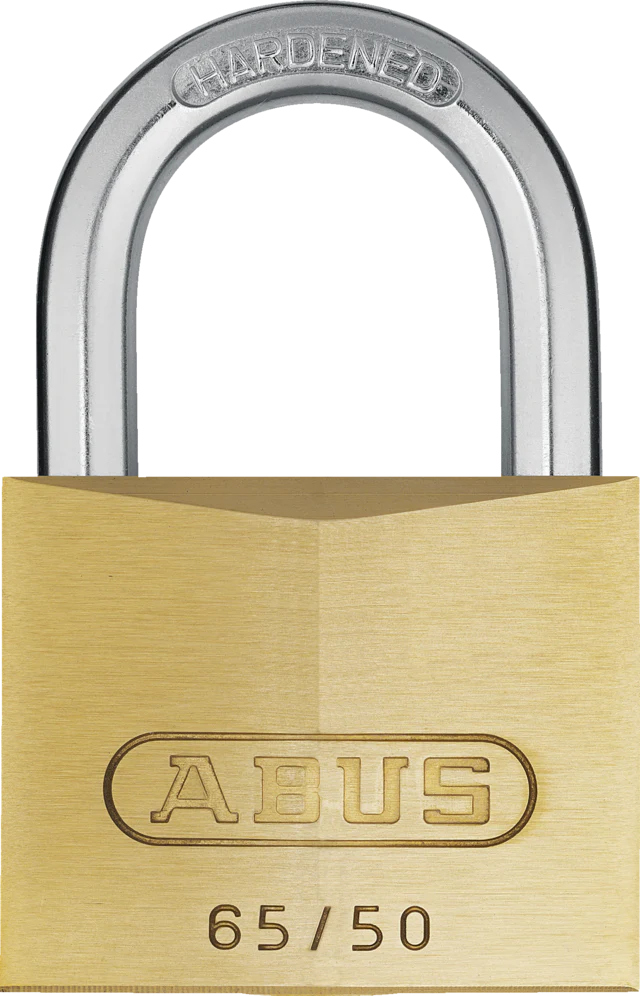

• 65/50: 50×77×18 mm | Shackle Ø 8 mm | Weight 293 g

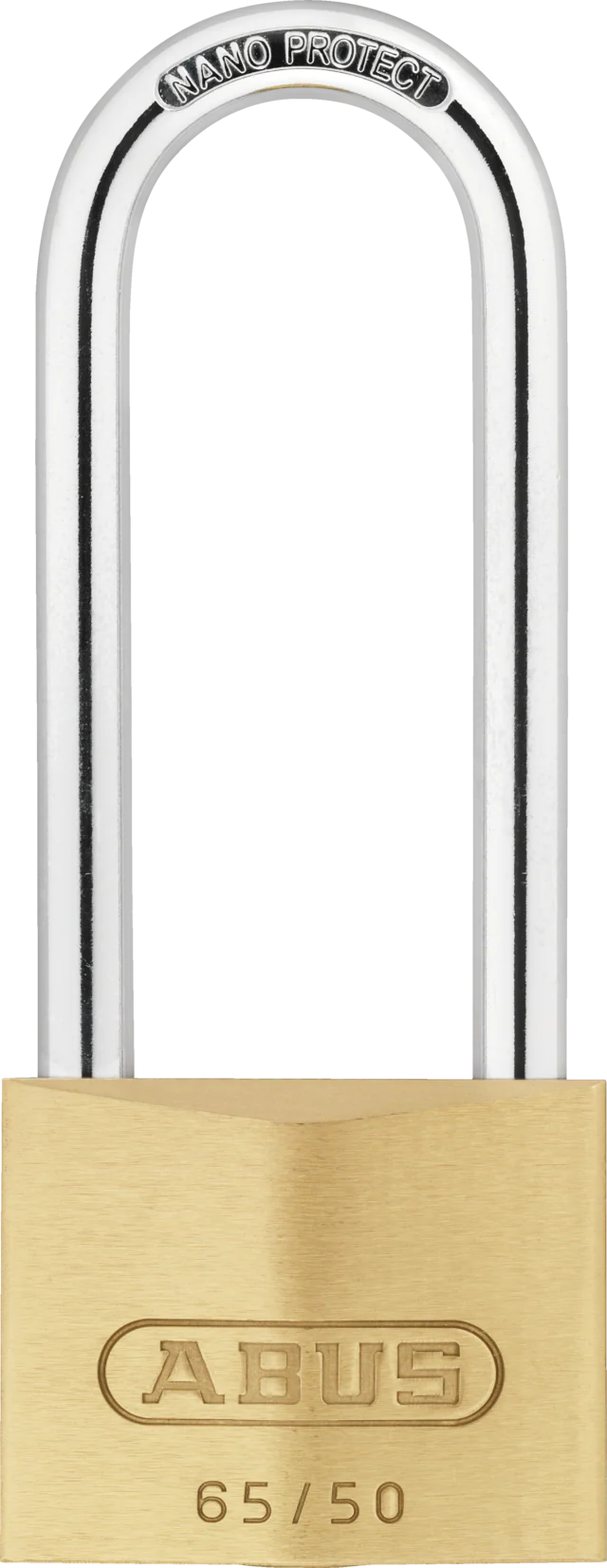

• 65/50HB80: 50×129×18 mm | Clearance 80 mm | Weight 323 g
• 65CS/50: 50×60×18 mm | Closed shackle | Weight 363 g

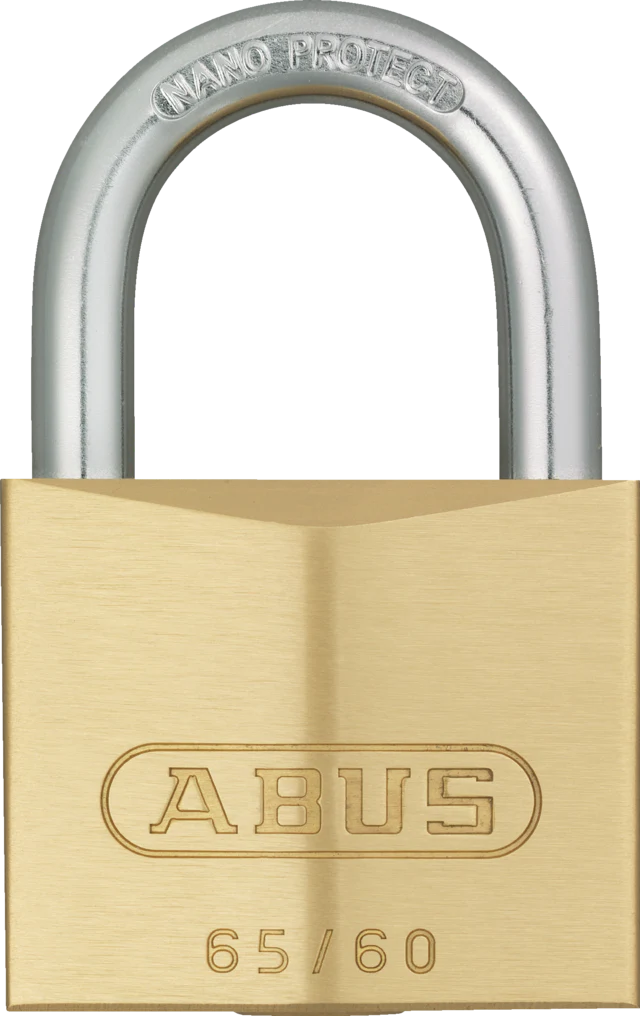

• 65/60: 60×91×19 mm | Shackle Ø 10 mm | Weight 433 g

Marine & Special Variants

• 65IB/30: Stainless steel shackle | 30×50×14 mm | 96 g

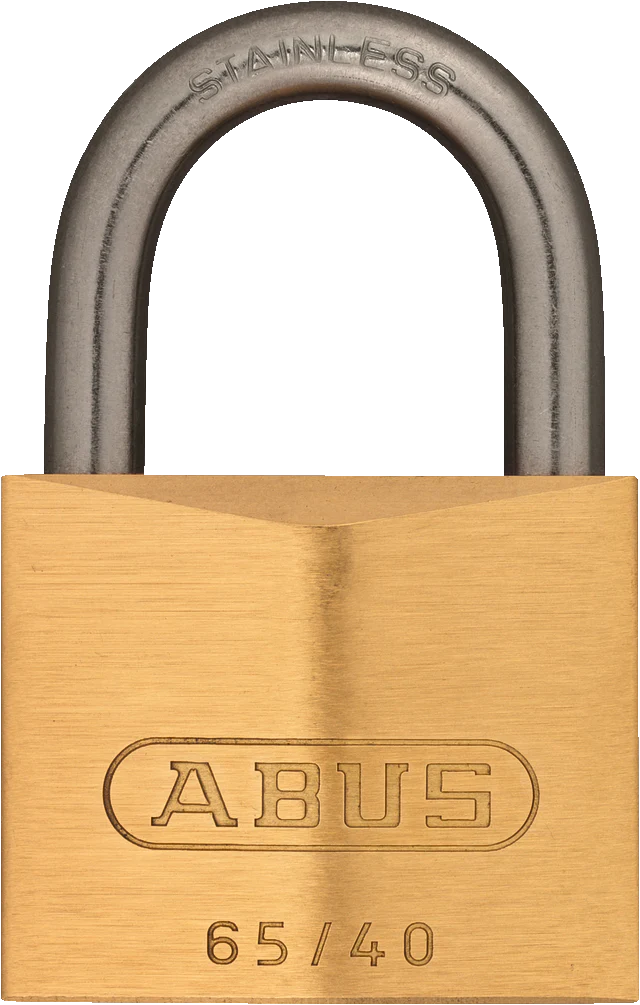

• 65IB/40: Stainless steel shackle | 40×62×15 mm | 162 g
• 65IB/40HB63: Long stainless shackle | 40×103×15 mm | 183 g
• 65IB/50: Stainless steel shackle | 50×77×18 mm | 293 g

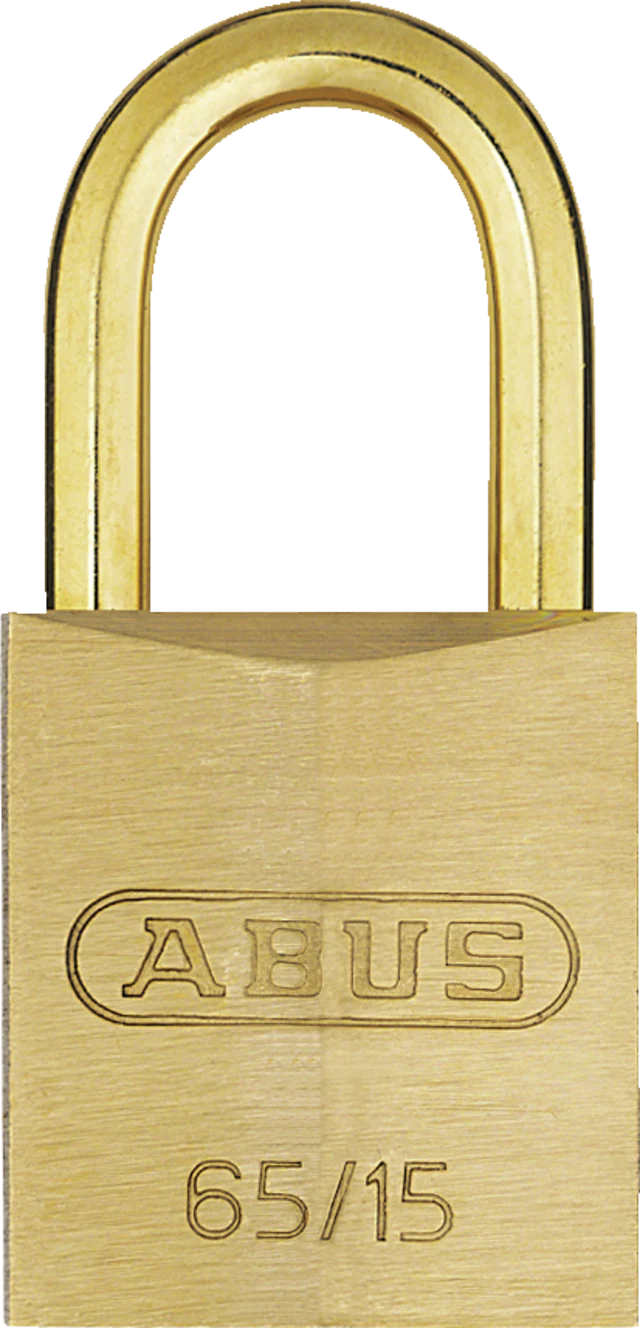

• 65MB/15: Brass shackle (anti-spark) | 16×32×10 mm | 27 g
• 65MB/30HB70: Brass long shackle | 30×93×14 mm | 125 g

Specifications

• Material (Body): Solid Brass
• Material (Shackle): Hardened Steel / Stainless Steel / Brass
• Lock Type: Keyed (Pin Tumbler Cylinder)
• Security Rating: 3 – 6 (depending on size)
• Indoor Use: Yes
• Outdoor Use: Yes
• Marine Use: IB variants only
• Keyed Alike: Available on selected models
• Keys Supplied: 2 Keys

Applications

• Gates and fences
• Lockers and cupboards
• Toolboxes and storage units
• Industrial and residential use

Why Choose BRASS 65 Series?

With a wide range of sizes and configurations, the BRASS 65 Series offers a perfect balance between durability, corrosion resistance, and everyday security. Whether you need a compact indoor lock or a robust outdoor solution, this range provides flexibility without compromise.
