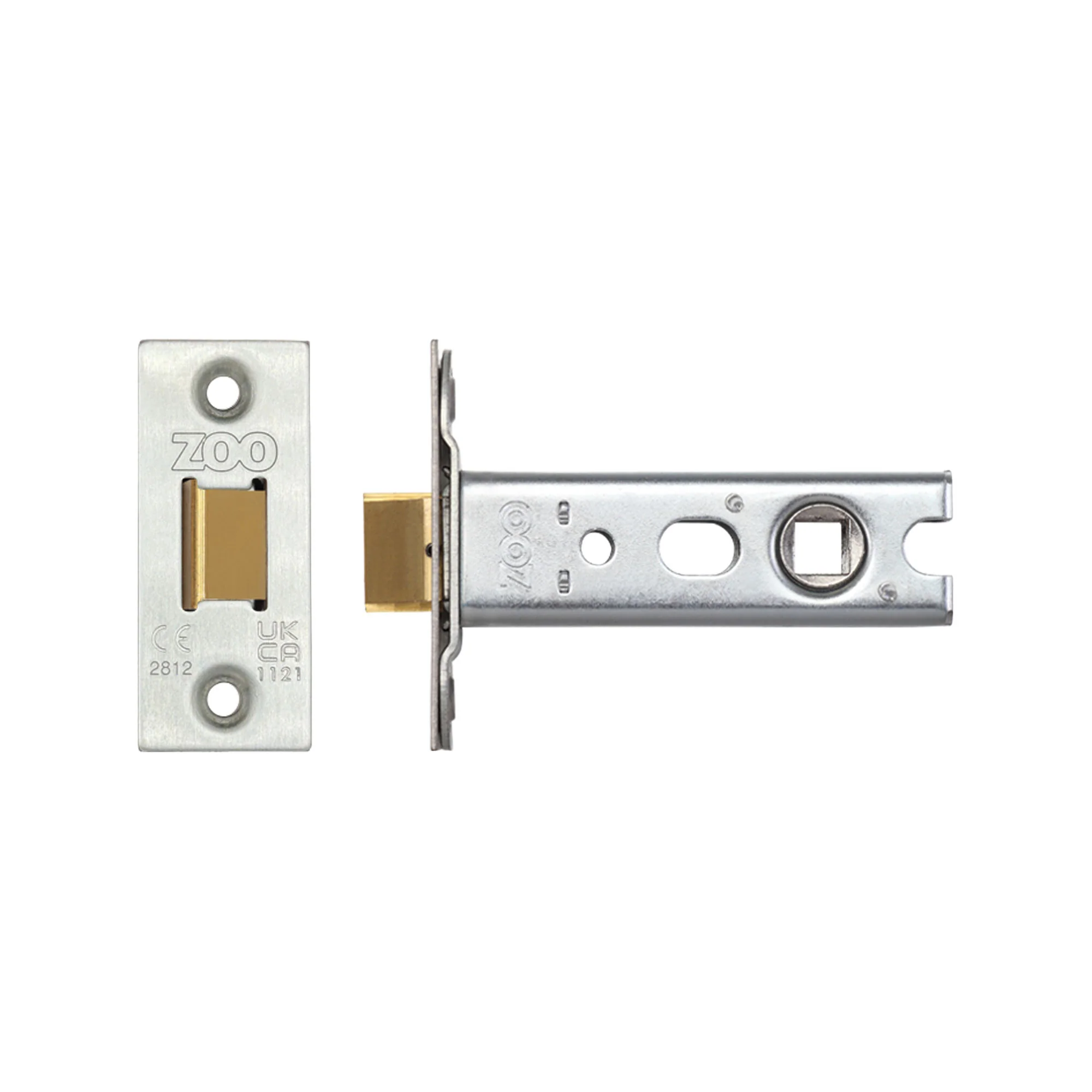

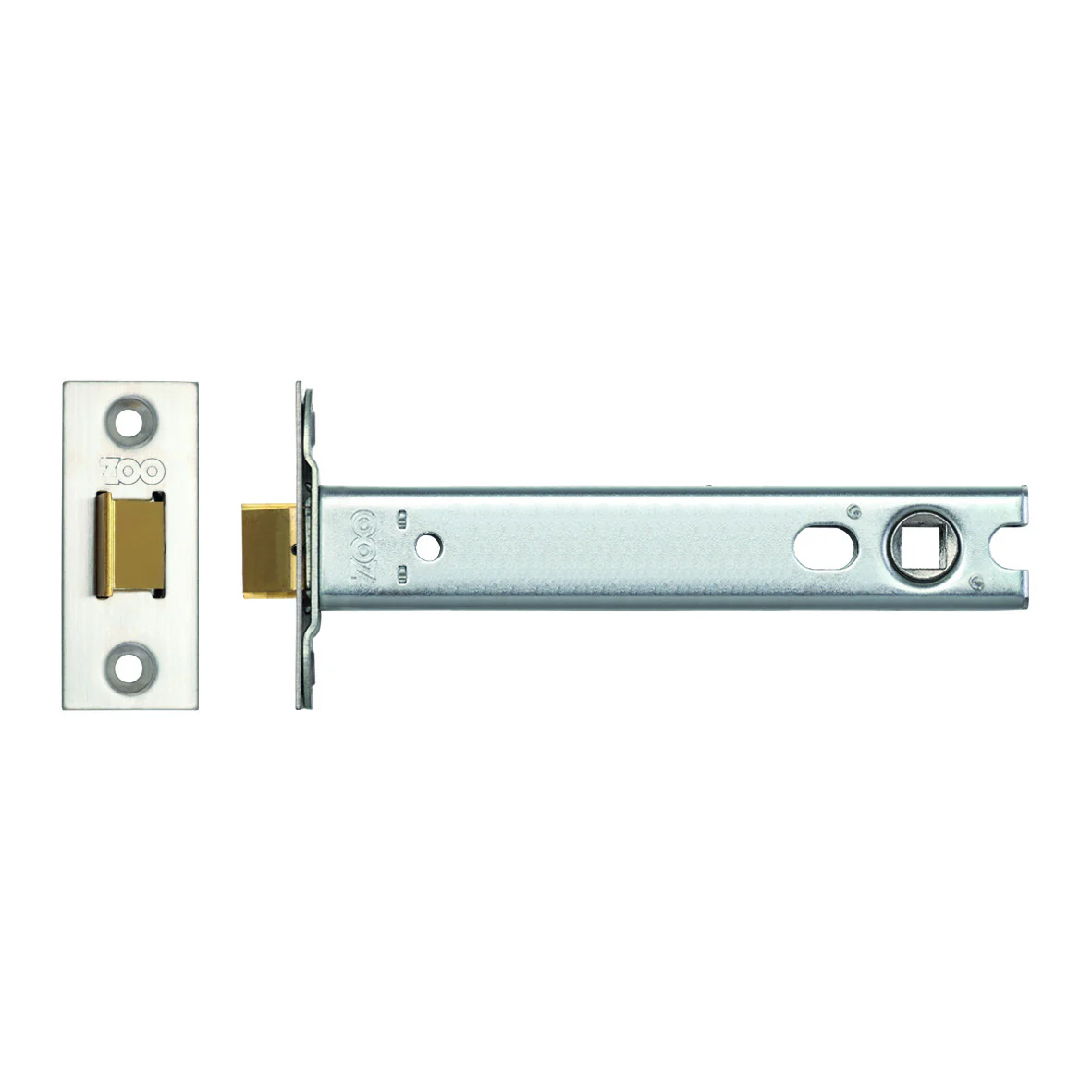

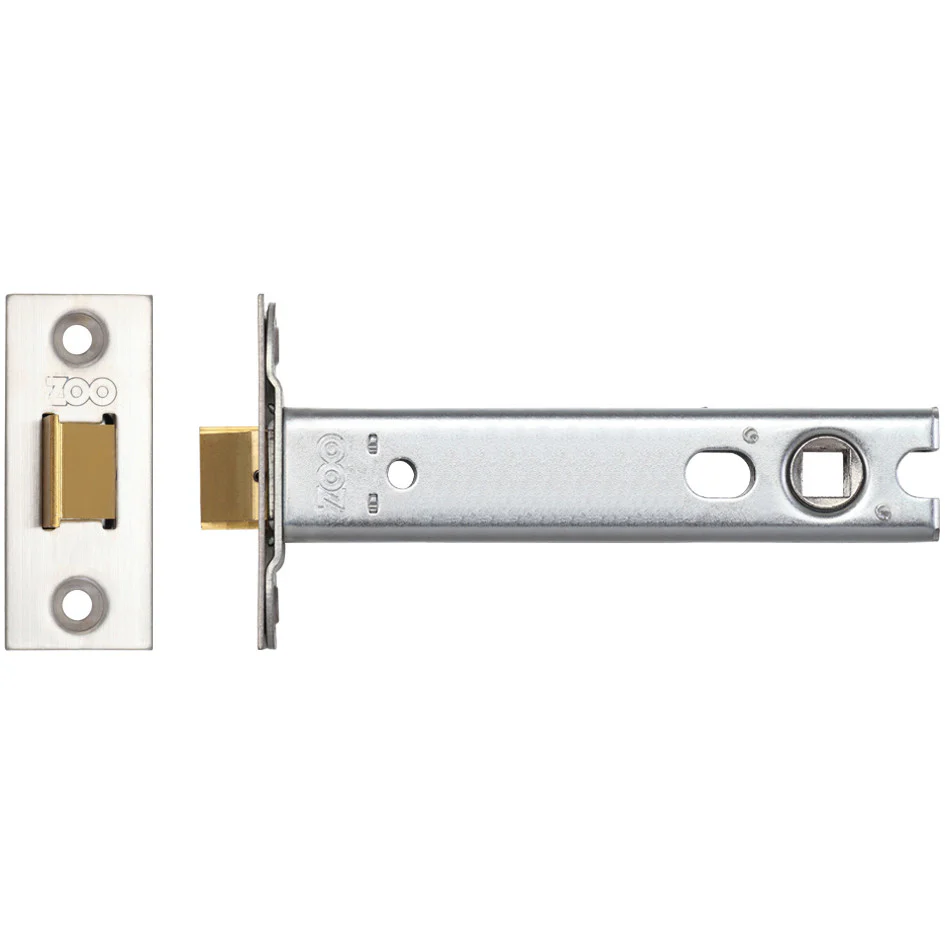

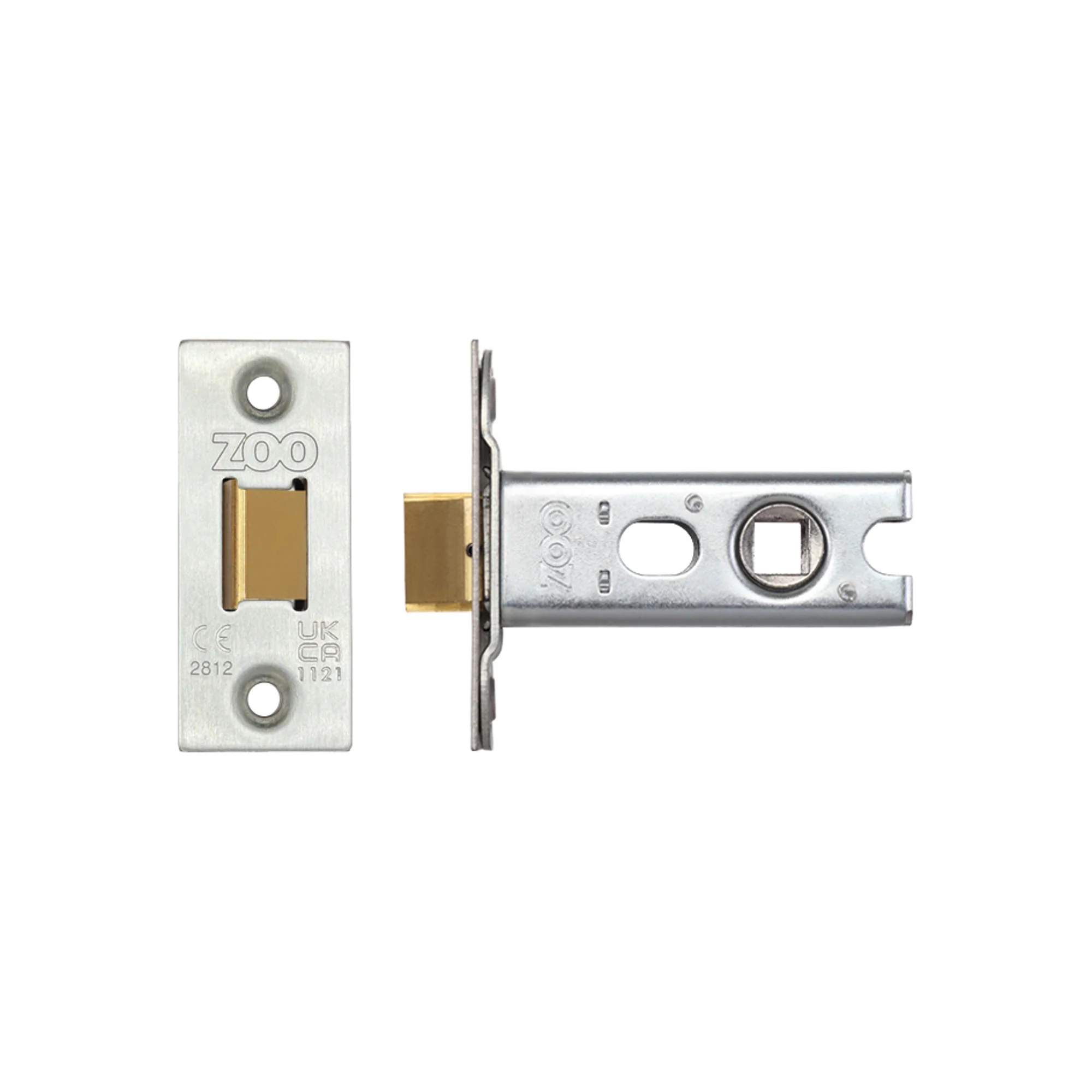

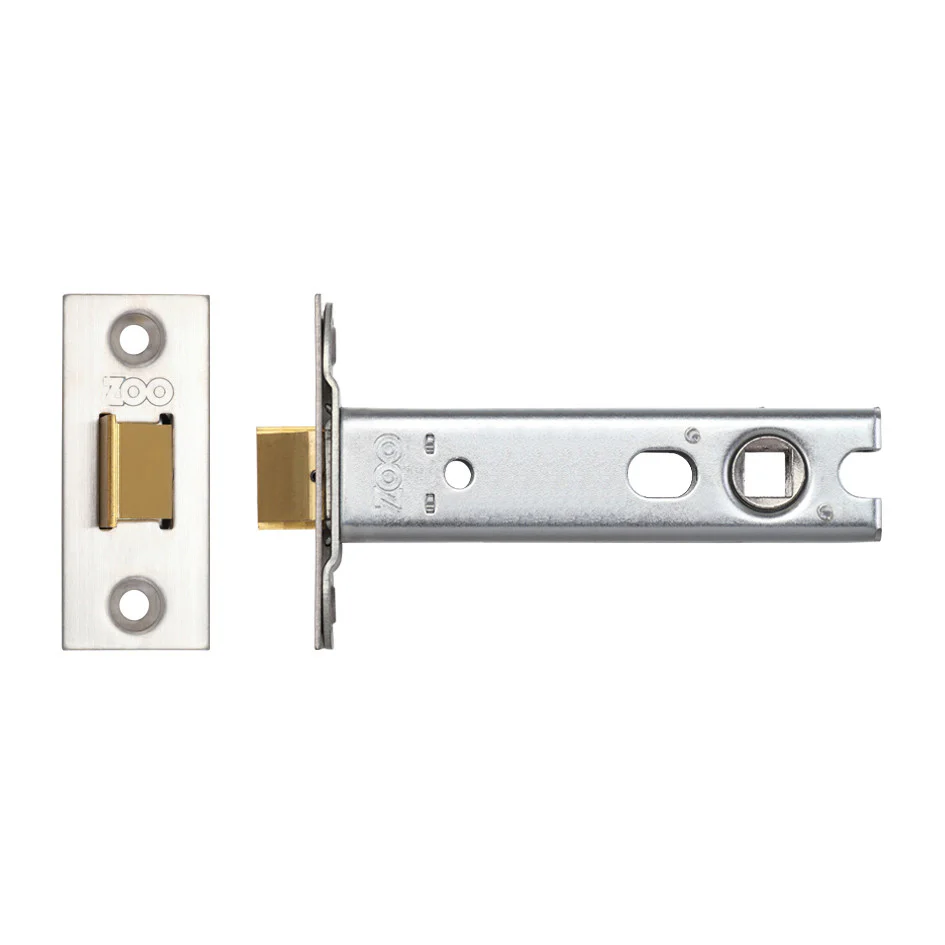

Zoo Hardware Tubular Latch 76mm — Square Forend, Satin Stainless (for Knobs)

Architectural Tubular Latch (Knobs) – 45° Travel

The Architectural Tubular Latch (Knobs) is a high-performance bolt-through latch designed specifically for use with knob furniture. Featuring a 45° handle travel, the latch delivers smooth, controlled operation and reliable engagement, making it ideal for high-use residential and commercial environments.

Manufactured to architectural standards and supplied with a satin stainless steel forend, this latch is tested to BS EN 1634-1 and complies with BS EN 12209. It is suitable for use on FD30 and FD60 fire-rated doors, providing dependable performance where fire compliance is required.

Key Features

• Architectural tubular latch for knob furniture
• 45° handle travel for smooth operation
• Bolt-through fixing for secure installation
• Guided latch bolt for consistent alignment
• Available with adjustable strike (size dependent)
• Satin stainless steel forend
• Suitable for residential and commercial use

Latch Size Options

• 64mm (2.5") – One-way action
• 76mm (3")
• 102mm (4")
• 127mm (5")
• 152mm (6")

Finish

• Satin Stainless Steel

Standards & Certification

• BS EN 12209
• Tested to BS EN 1634-1
• CE Marked – CE 1121
• Fire Rated: FD30 / FD60

Specifications

• Product Type: Tubular Latch (Knobs)
• Handle Travel: 45°
• Fixing Type: Bolt Through
• Forend: Satin Stainless Steel
• Latch Bolt: Guided
• Application: Fire-rated and standard internal doors

Packaging Information

• Pack Quantity: 1 tubular latch per pack
