Aluminium T65AL Series – Colour-Coded Aluminium Padlock - T65AL/40 Datasheet

ABUS Aluminium T65AL Series – Colour-Coded Aluminium Padlock with Inscribable Body (All Variants)

The ABUS Aluminium T65AL Series Padlock delivers a versatile combination of lightweight construction, reliable everyday security, and personalisation capability, making it an excellent choice for colour-coded security management, safety lockout applications, and personal identification use. Built from high quality aluminium and fitted with a hardened steel shackle featuring NANO PROTECT™ plating for increased corrosion resistance, the T65AL Series provides dependable protection in a compact, lightweight package available in a wide range of vibrant colours.

Designed with a smooth aluminium lock body that can be easily inscribed with a name or identification marking, a precision 5-pin tumbler cylinder with a paracentric keyway for increased protection against manipulation, and a self-locking function allowing convenient locking without a key, the T65AL Series is equally suited to practical security management and personalised applications. The T65AL/40 myLove variant features a distinctive white body with red heart detail, making it an ideal choice for decorative love lock installations. Both variants share identical dimensions, key type, and hardware specification for consistent performance across the range.

Key Features

• Lock body made from high quality aluminium for lightweight everyday use
• Hardened steel shackle with NANO PROTECT™ plating for increased corrosion resistance
• Smooth aluminium body can be easily inscribed with names or identification markings
• Precision 5-pin tumbler cylinder for reliable and consistent locking performance
• Paracentric keyway for increased protection against picking and manipulation
• Self-locking function (push-down shackle, no key required)
• Available in a wide range of colours for colour-coded identification and management
• T65AL/40 myLove variant available in white with red heart detail for decorative use
• Available keyed alike across multiple locks
• Safety lockout use supported on standard T65AL/40 variants
• Supplied with two keys
• Suitable for indoor and outdoor use

Variant Options

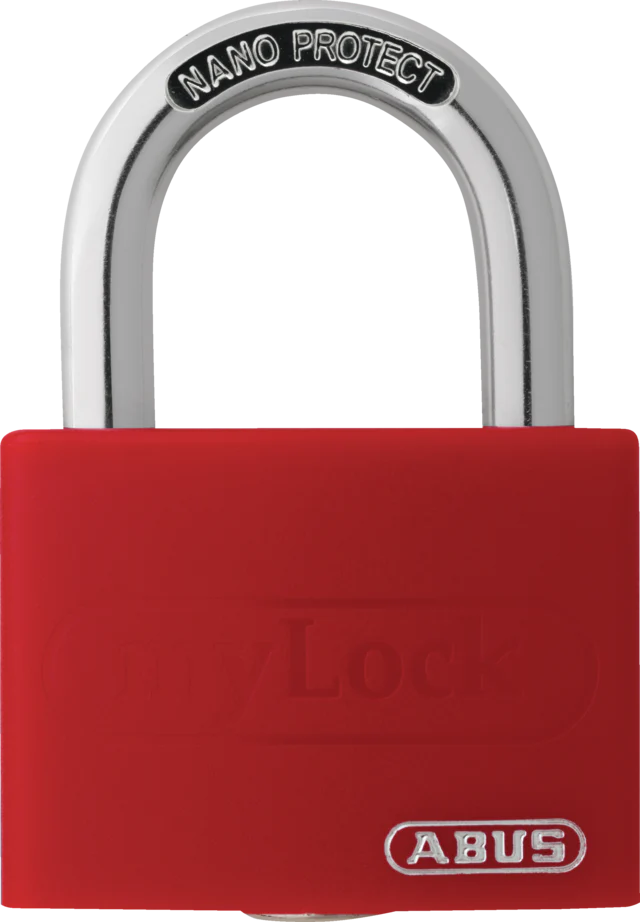

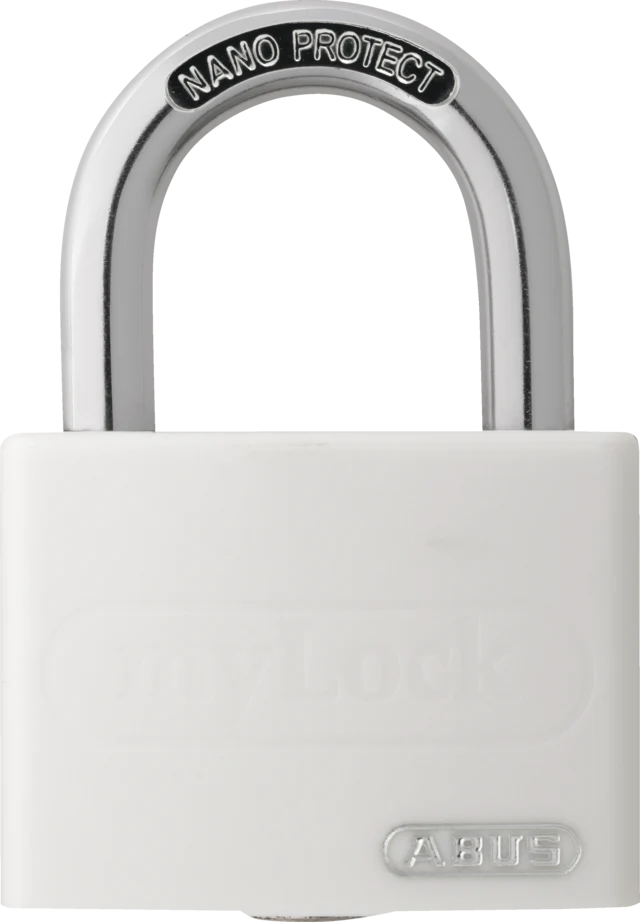

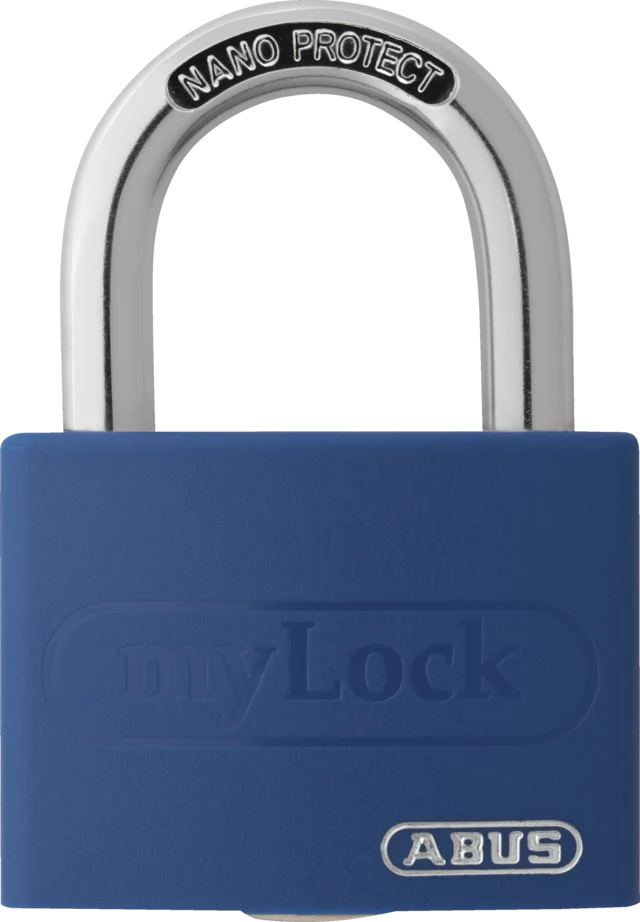

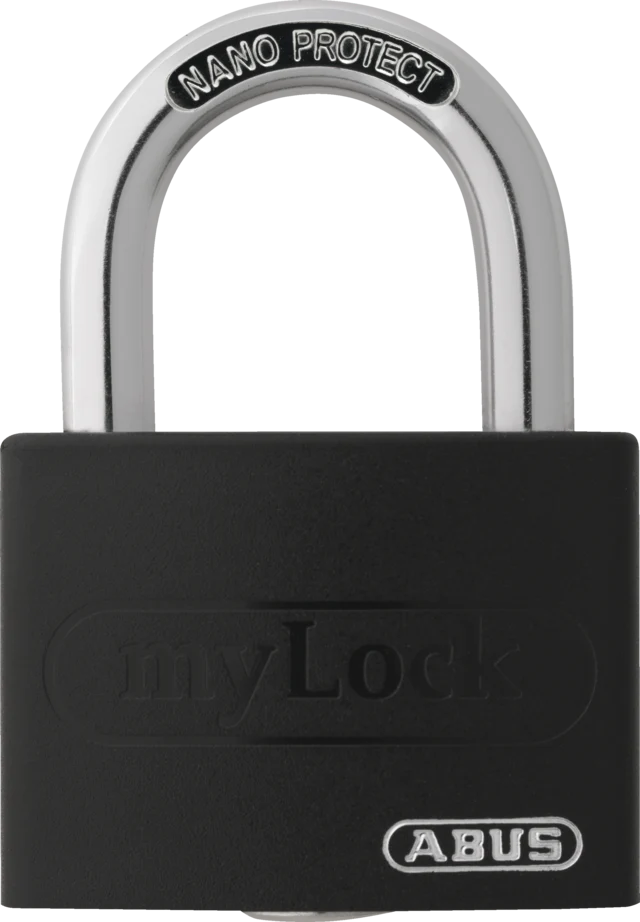

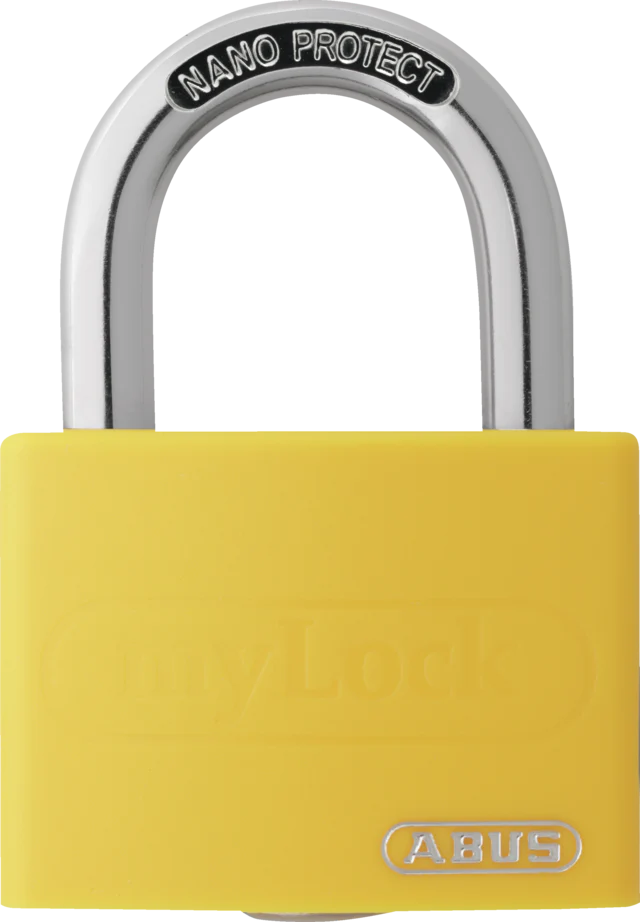

• T65AL/40: Standard aluminium body — available in red, black, blue, purple, white, and yellow
• T65AL/40 myLove: White body with red heart detail — decorative love lock variant

Ideal Applications

• Colour-coded key and lock management systems
• Safety lockout and tagout (LOTO) procedures (T65AL/40)
• Personal identification and name inscription applications
• Love lock installations and decorative use (T65AL/40 myLove)
• Gates, lockers, and storage units
• General indoor and outdoor everyday security

Specifications

• Product Type: Colour-Coded Inscribable Aluminium Padlock
• Locking Type: Keyed (Precision 5-Pin Tumbler Cylinder)
• Security Rating: Level 5 (all variants)
• Indoor Use: Yes
• Outdoor Use: Yes
• Marine Use: No
• Safety Use: Yes (T65AL/40) | No (T65AL/40 myLove)
• High Security Use: No
• Material – Body: High Quality Aluminium
• Colours Available: Red, Black, Blue, Purple, White, Yellow (T65AL/40) | White with Red Heart (T65AL/40 myLove)
• Material – Shackle: Hardened Steel with NANO PROTECT™ Plating
• Shackle Type: Standard (Open)
• Removable Shackle: No
• Keyed Alike Option: Yes (all variants)
• Master Key Option: No
• Key Retaining: No
• Key Type: 12022 (all variants)
• Keys Supplied: 2

Dimensions & Weight (All Variants)

• T65AL/40 and T65AL/40 myLove: 43 × 62 × 18 mm | 98 g | Ø 6.5 mm | Clearance: 22 × 23 mm

Design & Finish

• Colours: Red, Black, Blue, Purple, White, Yellow (T65AL/40) | White with Red Heart (T65AL/40 myLove)
• High quality aluminium construction provides a lightweight yet durable platform ideal for inscription and personalisation
• NANO PROTECT™ shackle plating delivers reliable corrosion resistance for outdoor and general use
• Compact 40 mm body size provides an ideal surface area for name and identification inscription

Additional Information

• Compatible with ABUS hasps: 200 Series (all variants)
• Compatible with ABUS chains: 6KS (all variants)
• Aluminium body can be inscribed using standard engraving tools for personalisation and identification
• Colour-coded variants allow simple visual differentiation across multiple locks and access points
• myLove variant designed for decorative love lock bridges, fences, and personalised gift applications

Packaging Information

• 1 × ABUS Aluminium T65AL Series Padlock (selected variant and colour)
• 2 × Keys included
