Aluminium 72 Series – TITALIUM™ Lightweight High-Security Padlock

ABUS Aluminium 72 Series – TITALIUM™ Lightweight High-Security Padlock (All Variants)

The ABUS Aluminium 72 Series Padlock delivers an outstanding combination of high security, lightweight construction, and exceptional corrosion resistance, making it an excellent choice for everyday security across a wide range of indoor, outdoor, and safety applications. Built from TITALIUM™ special aluminium — a proprietary high-strength, low-weight alloy — and finished with NANO PROTECT™ plating, the 72 Series is engineered to resist corrosion and withstand demanding conditions while remaining remarkably light in hand.

Designed with a hardened steel shackle also featuring NANO PROTECT™ plating, and an ABUS precision 6-pin cylinder that can be rekeyed to match an existing key, the 72 Series provides dependable protection against common attack methods. Integration into master key systems is supported, and serviceable padlocks with pinning kits are available across the range. The self-locking function allows convenient locking without a key, and a wide selection of colours — including the ABUS LoveLock red variant — combined with standard and long shackle (HB) options ensures flexibility and easy identification across a broad variety of applications.

Key Features

• Lock body made from TITALIUM™ special aluminium for high security with low weight
• Hardened steel shackle with NANO PROTECT™ plating for extreme corrosion resistance
• ABUS precision 6-pin cylinder for reliable and consistent locking performance
• Cylinder can be rekeyed to match an existing key for flexible key management
• Integration into master key systems possible
• Serviceable padlocks and pinning kits available across the range
• Self-locking function (push-down shackle, no key required)
• Available in a wide range of colours: blue, yellow, green, brown, purple, orange, red, and black
• Also available in ABUS LoveLock red variant
• Available keyed alike across multiple locks
• Suitable for indoor, outdoor, and safety applications
• Available in standard and long shackle (HB) variants

Variant Options

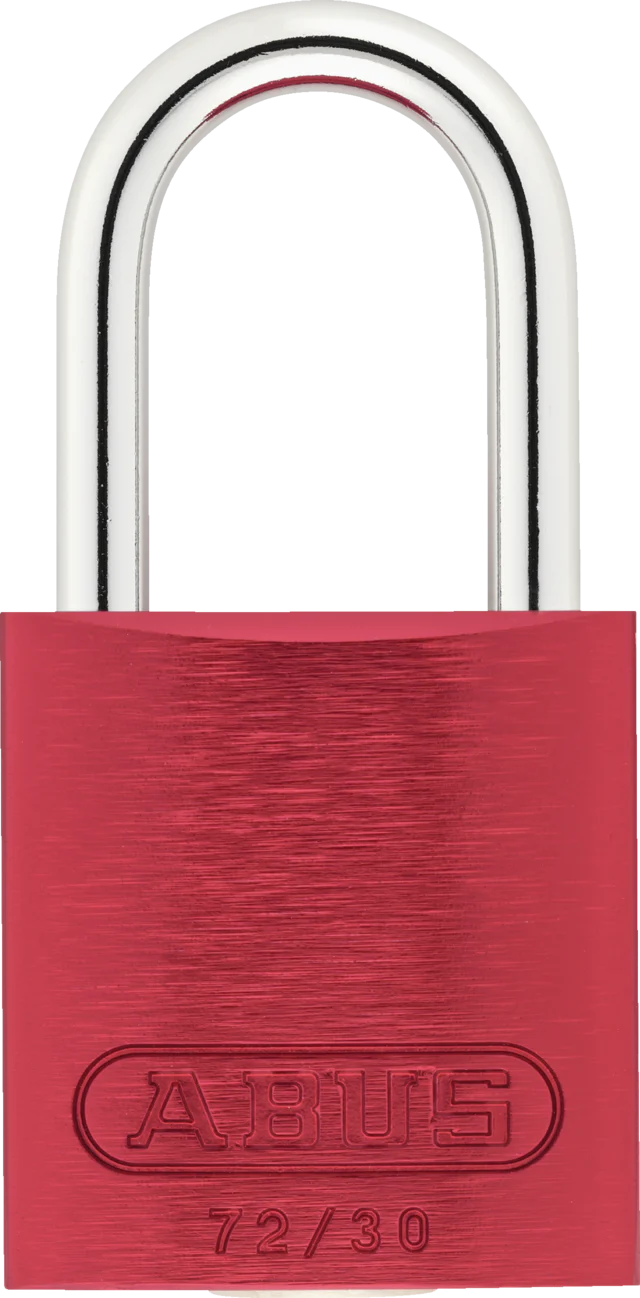

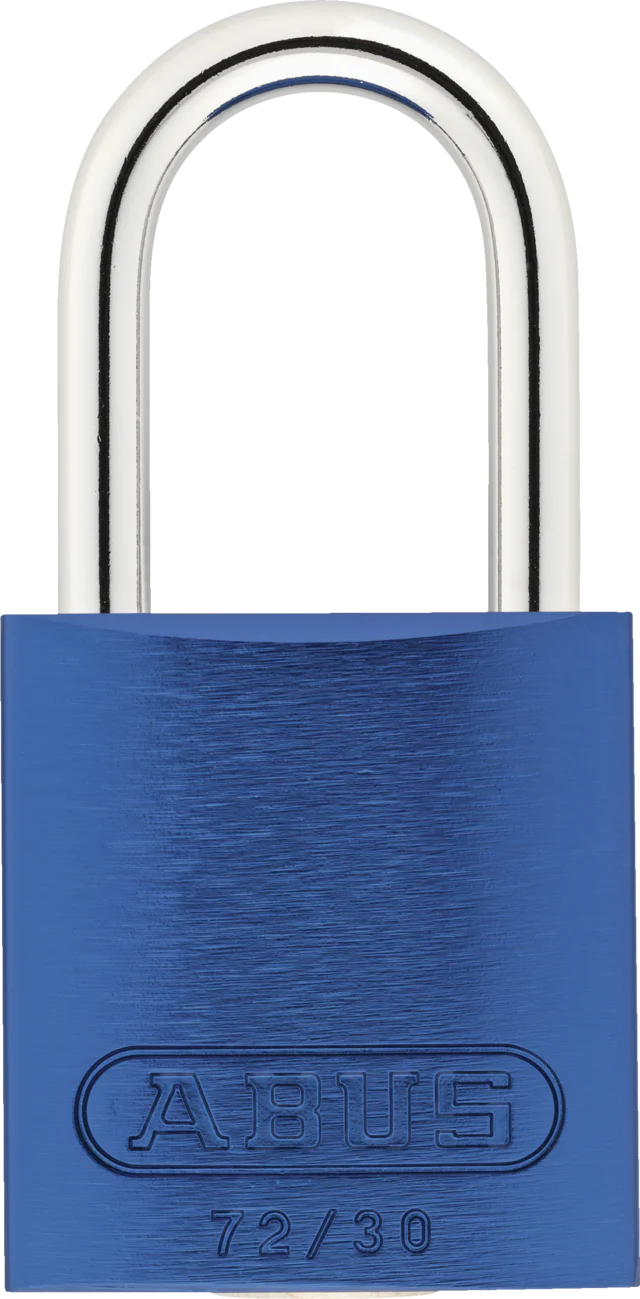

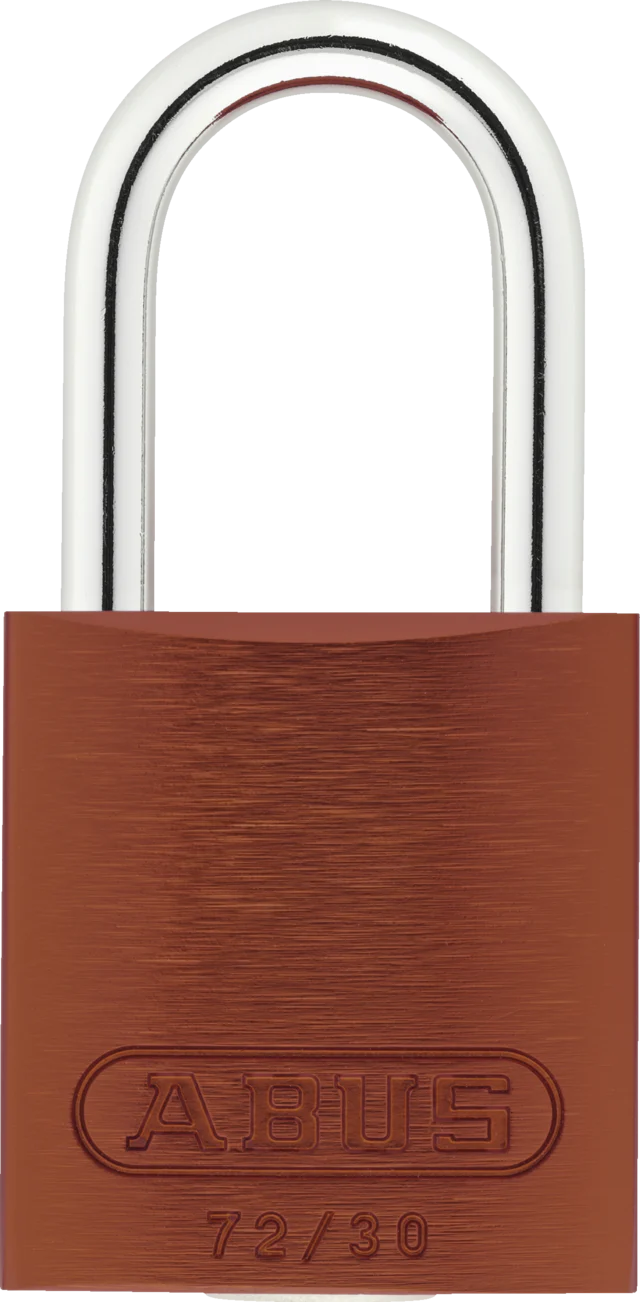

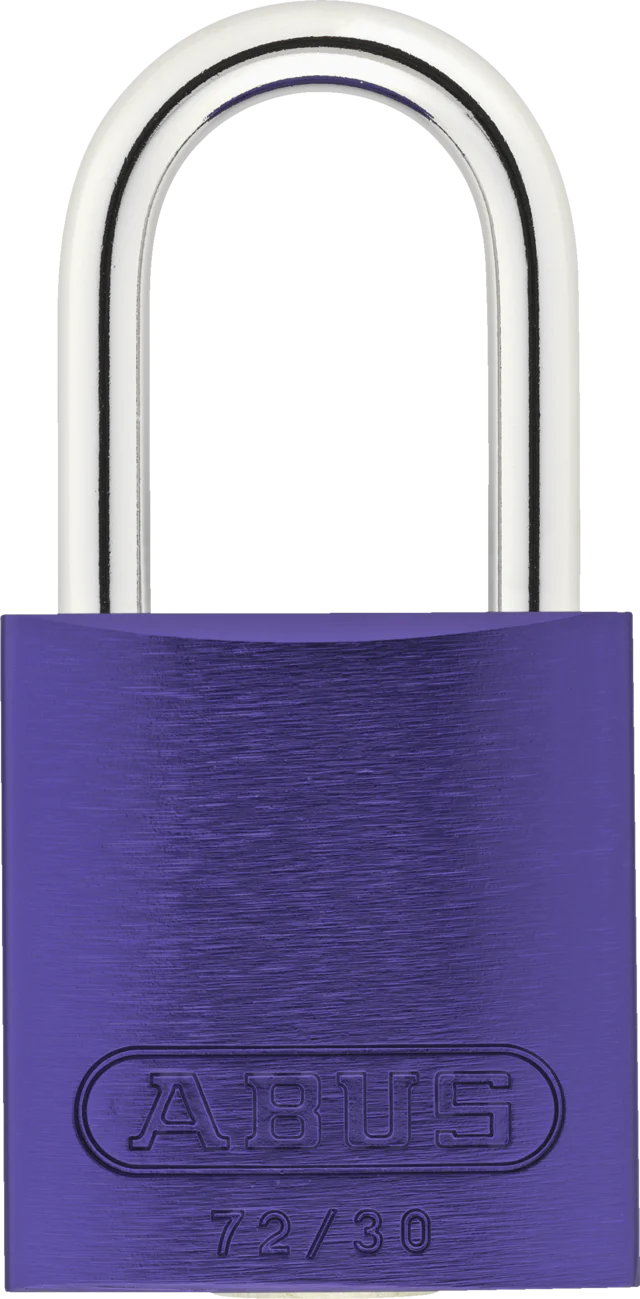

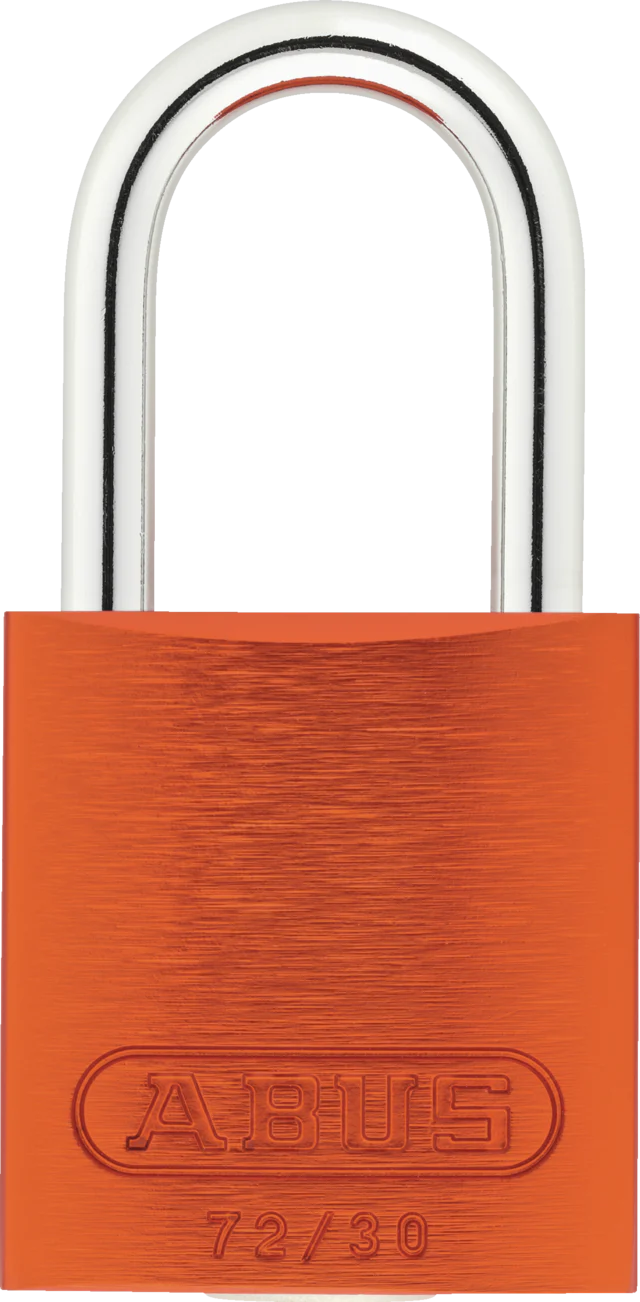

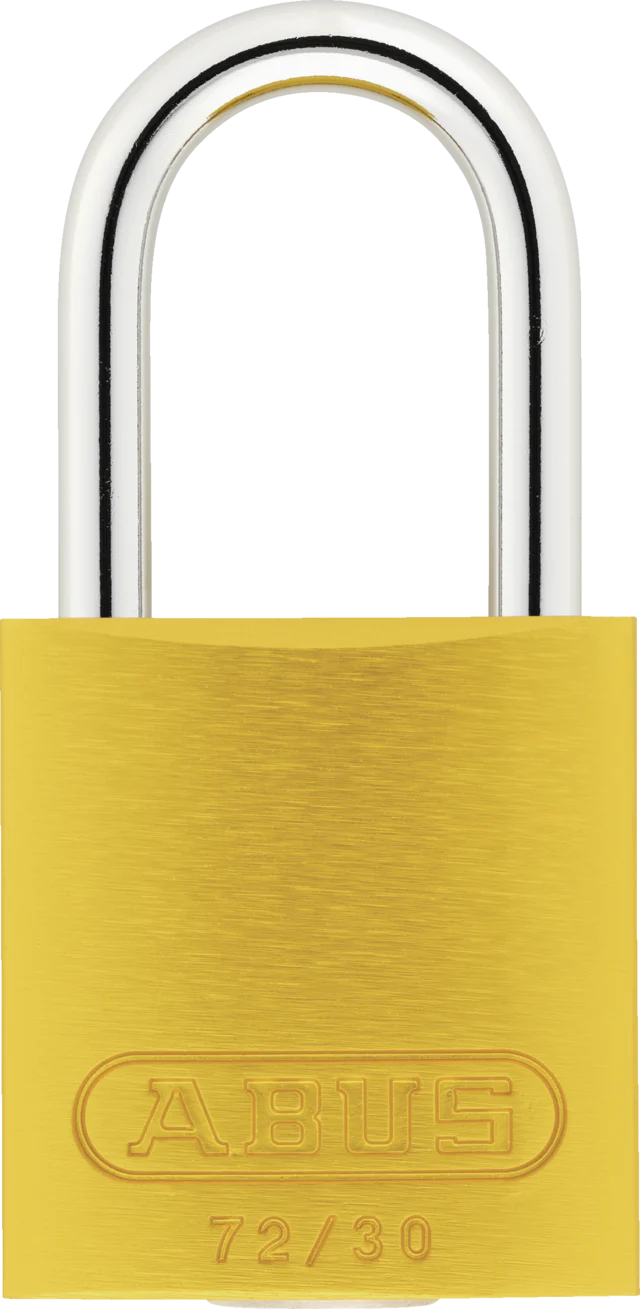

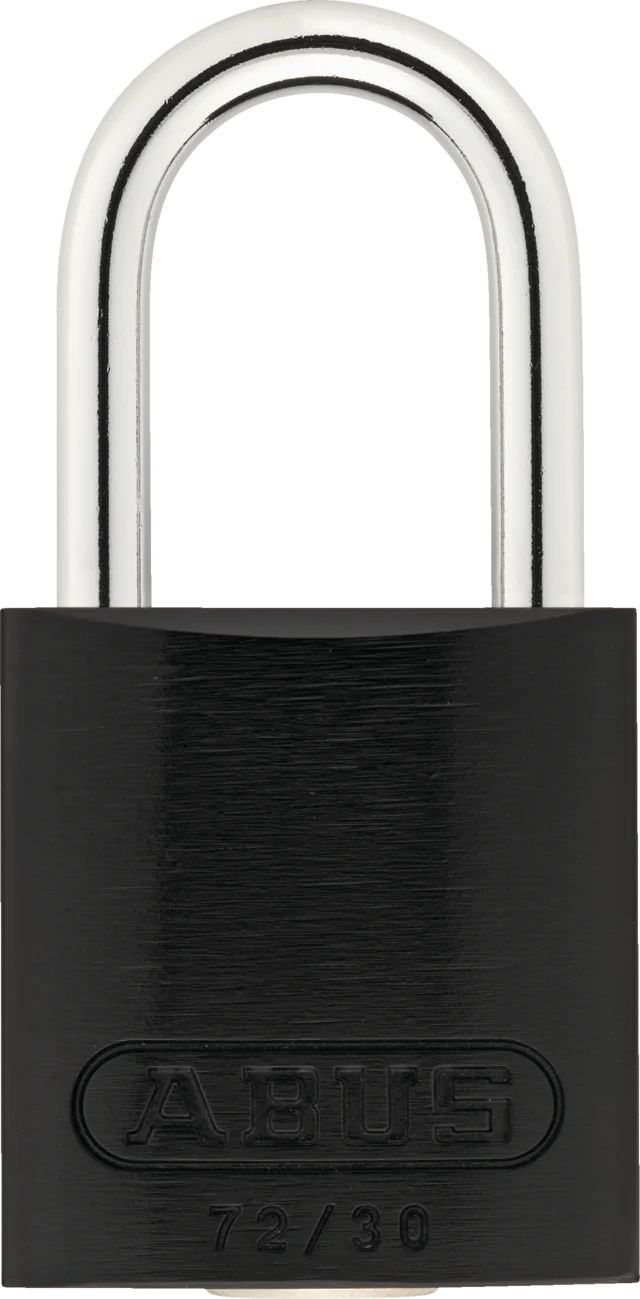

• 72/30: Standard shackle (30 mm body)

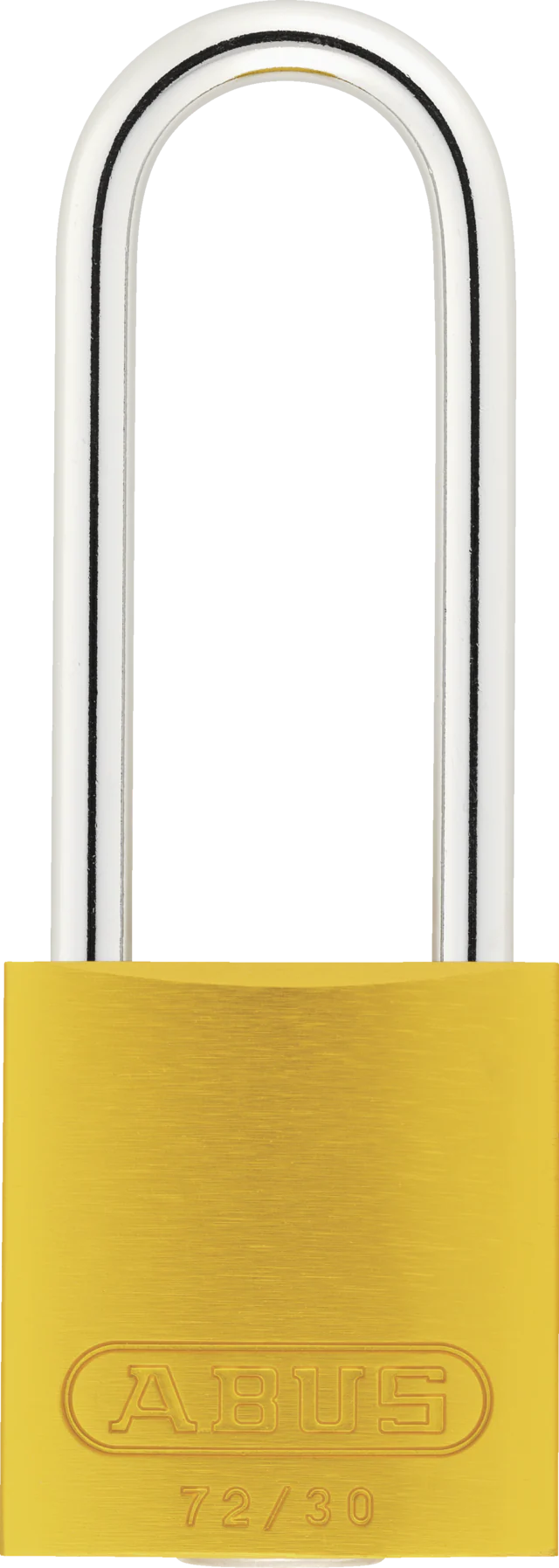

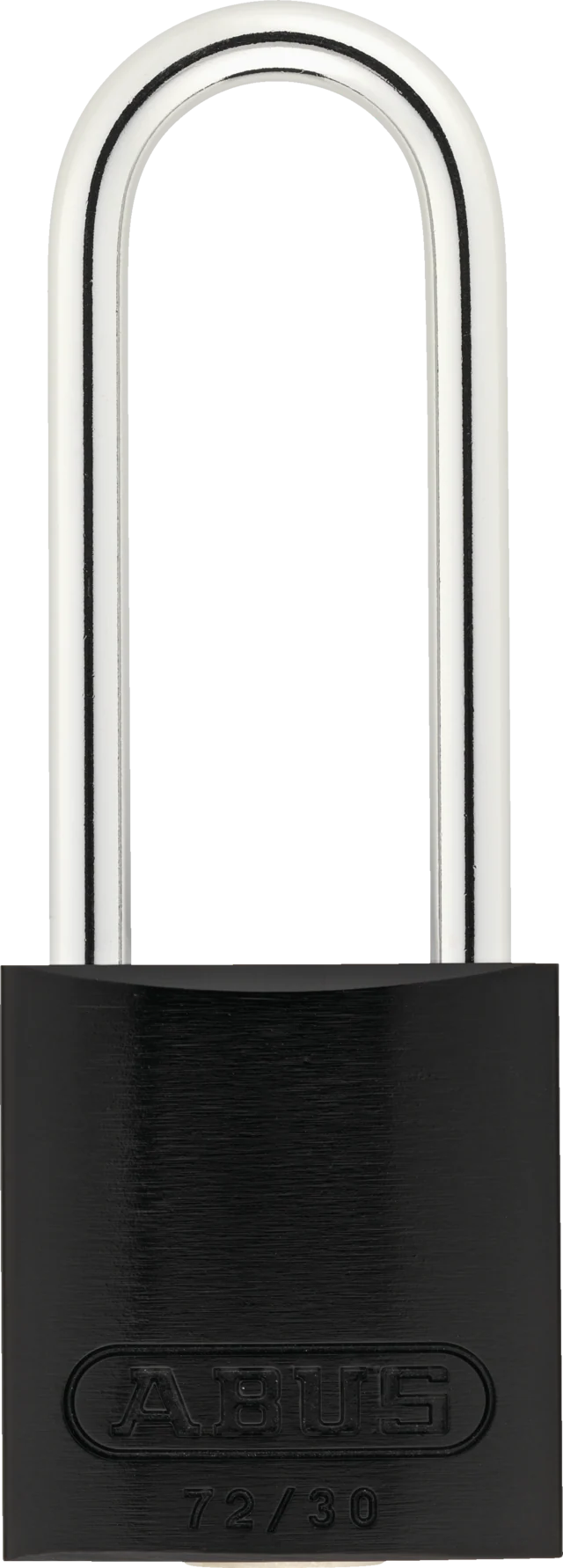

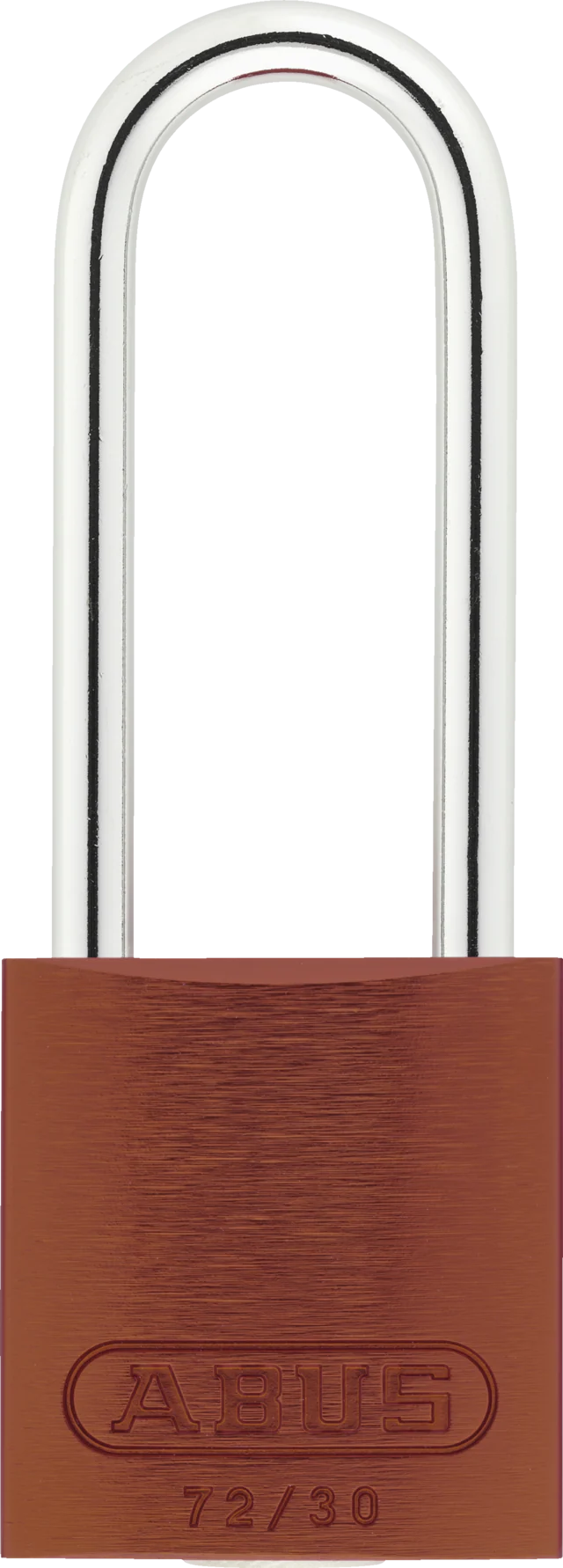

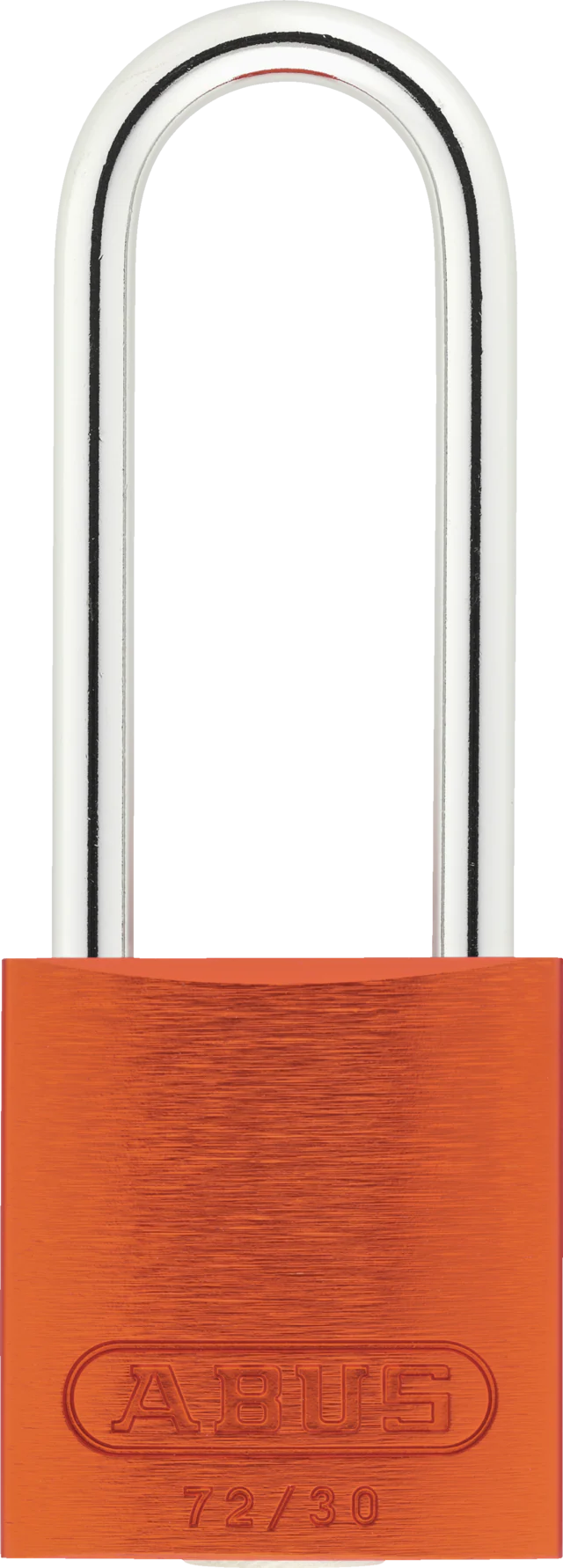

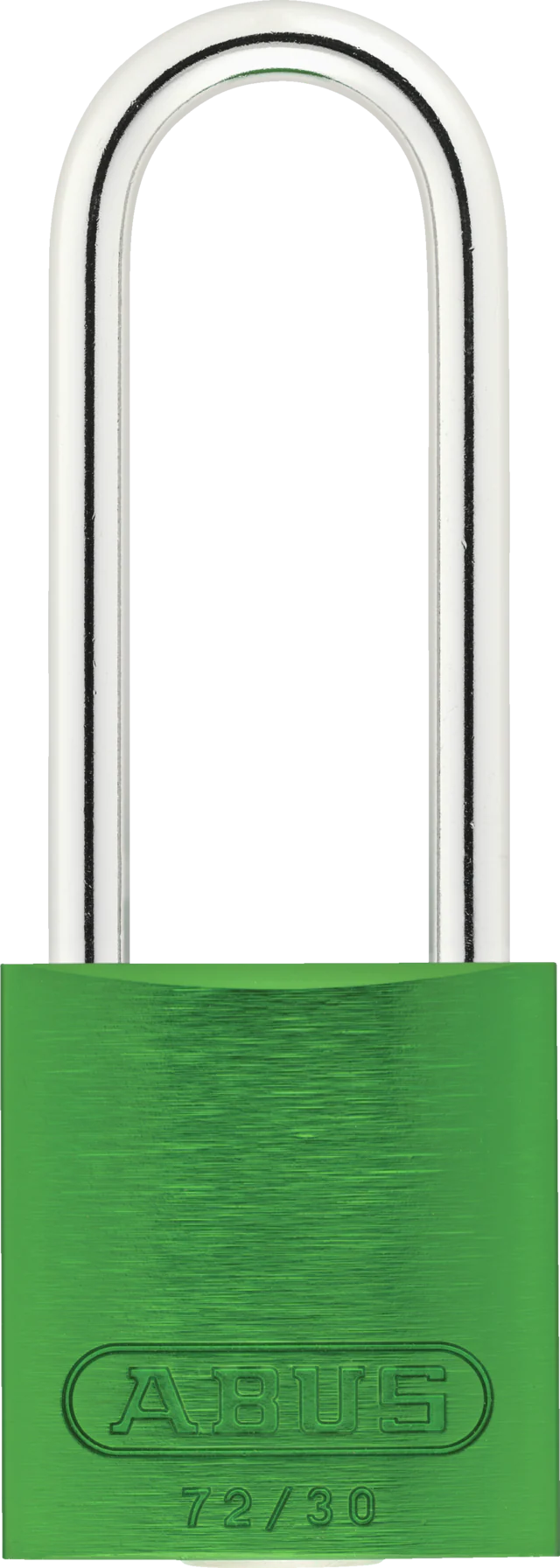

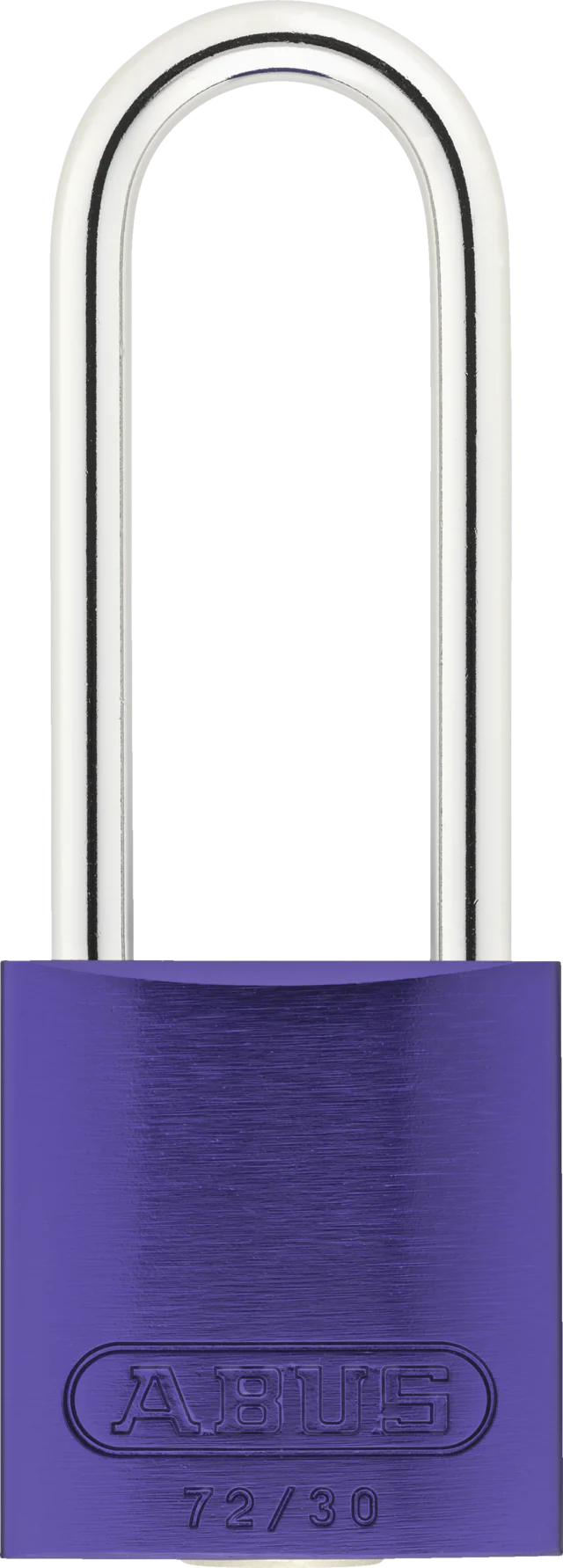

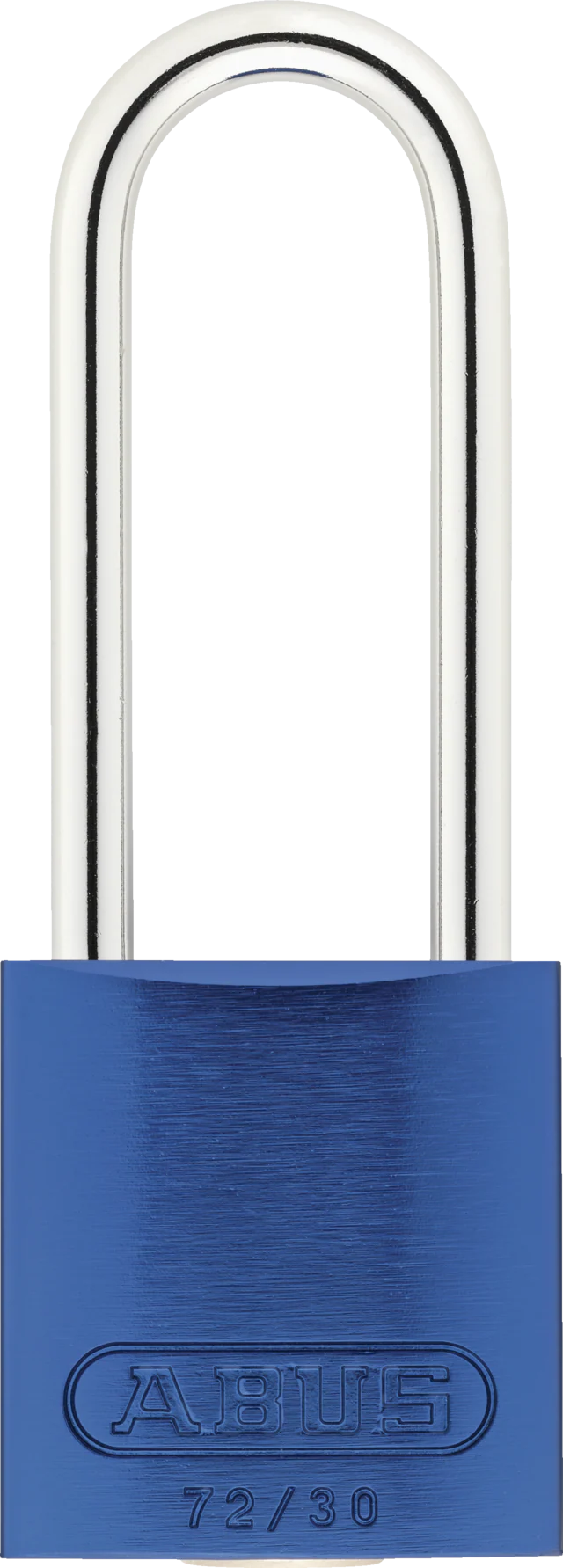

• 72/30HB50: Long shackle (50 mm vertical clearance)

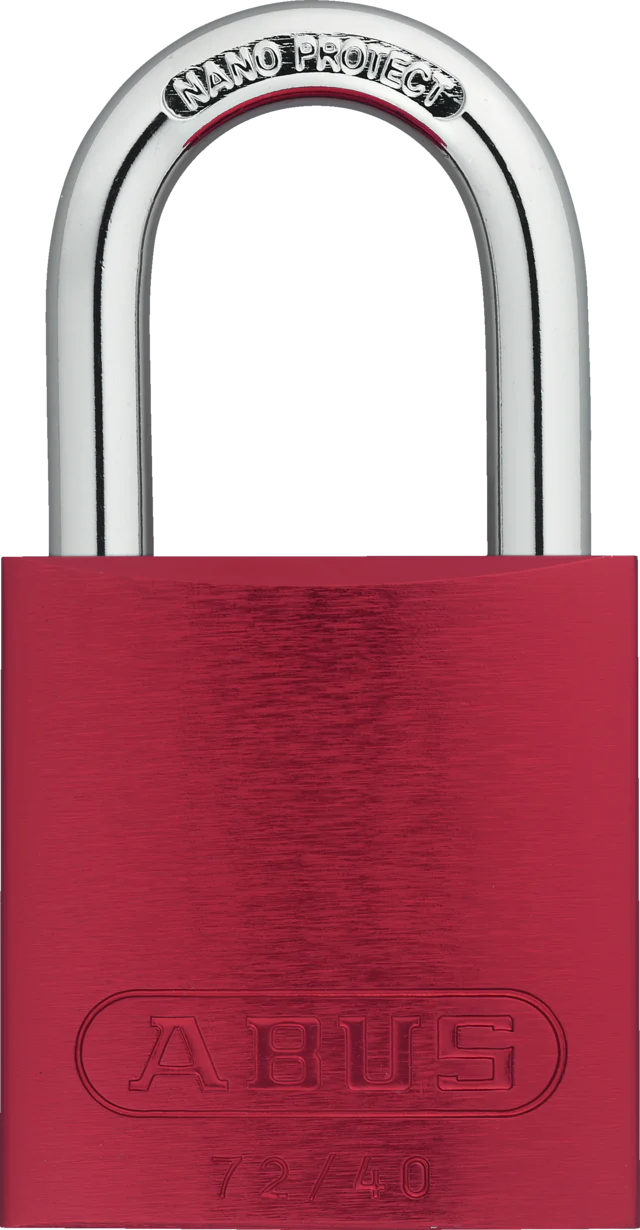

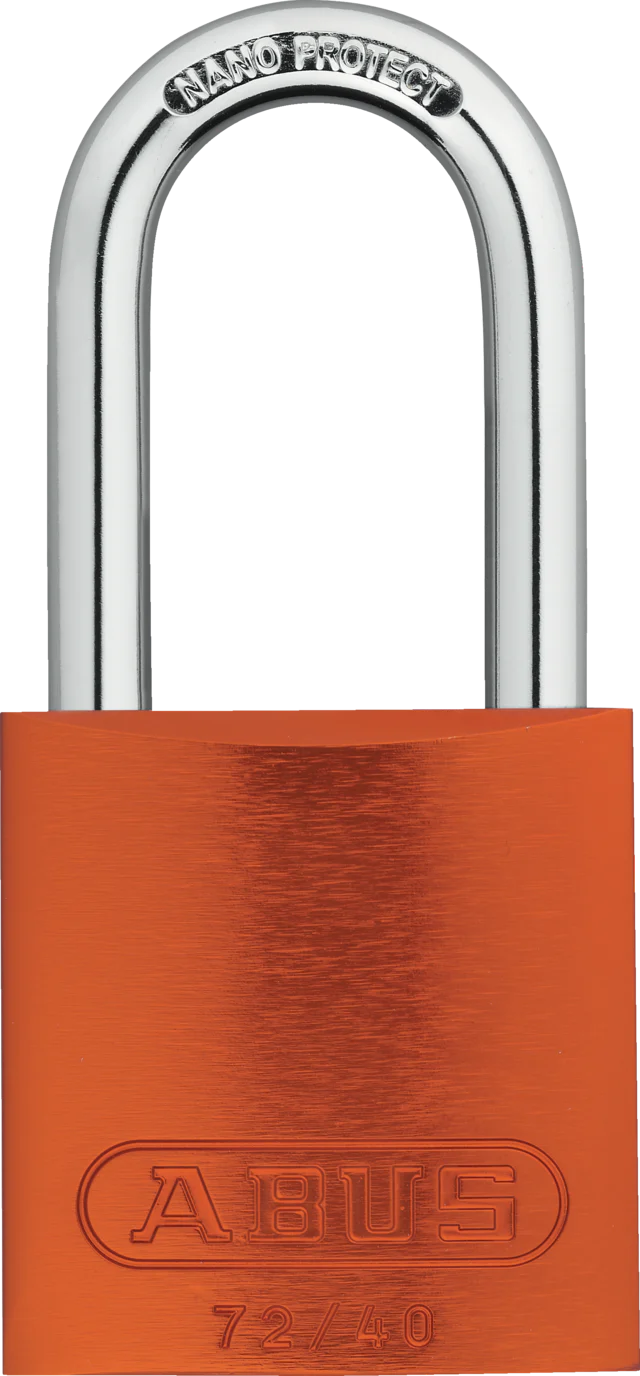

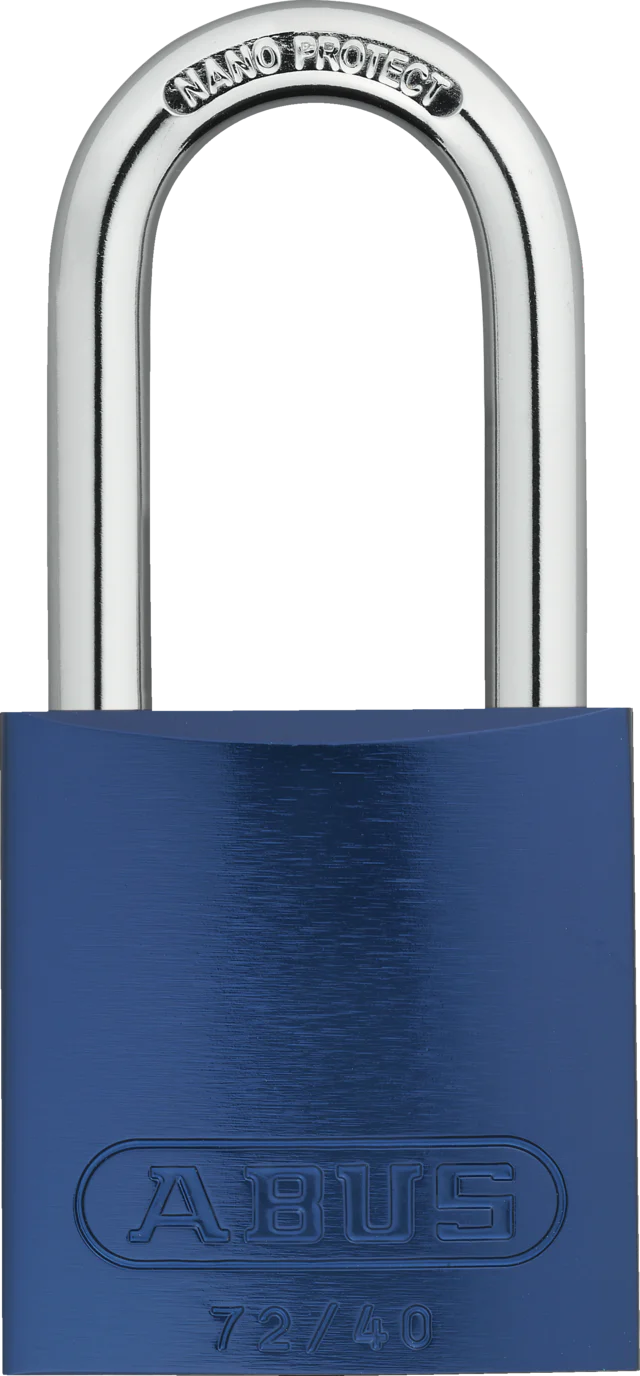

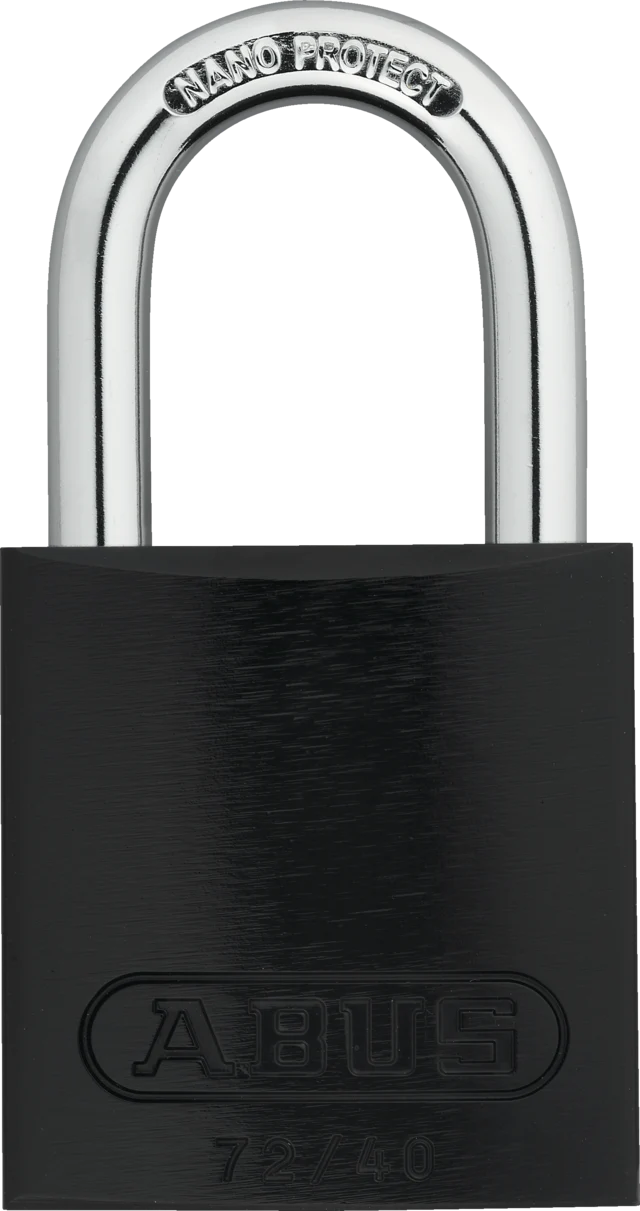

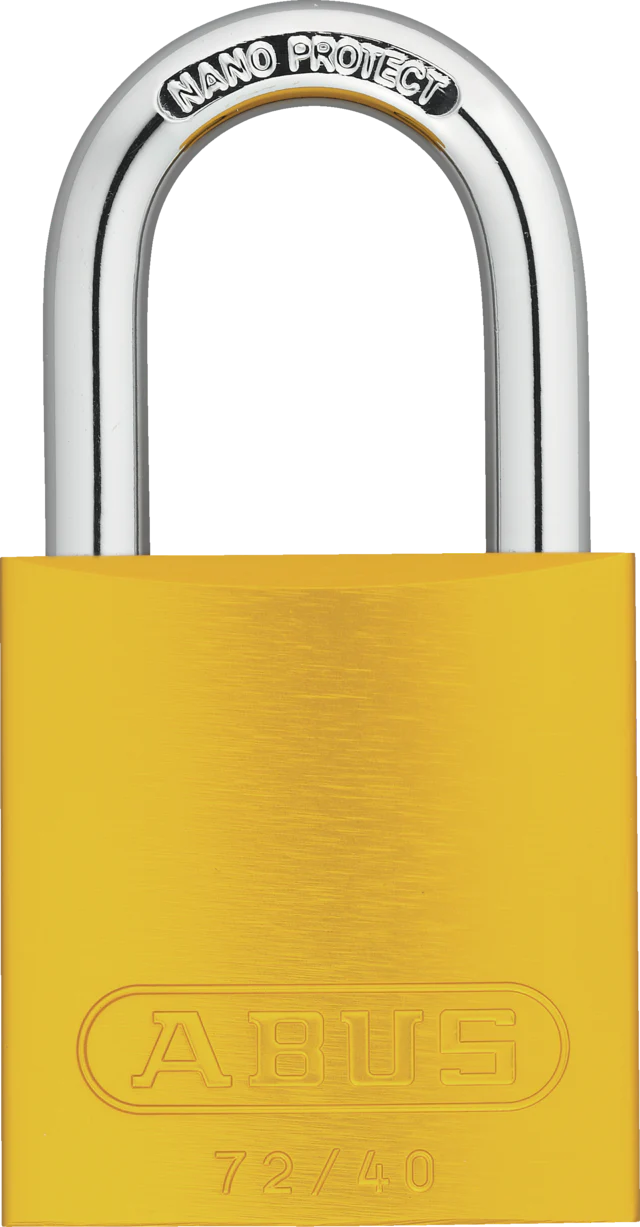

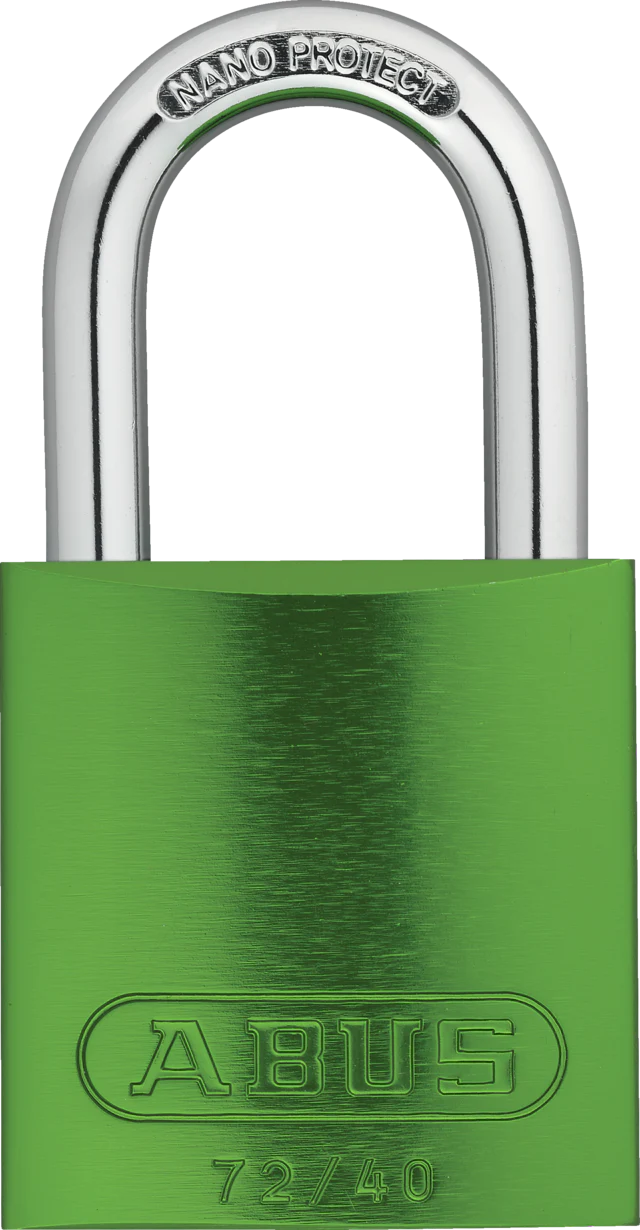

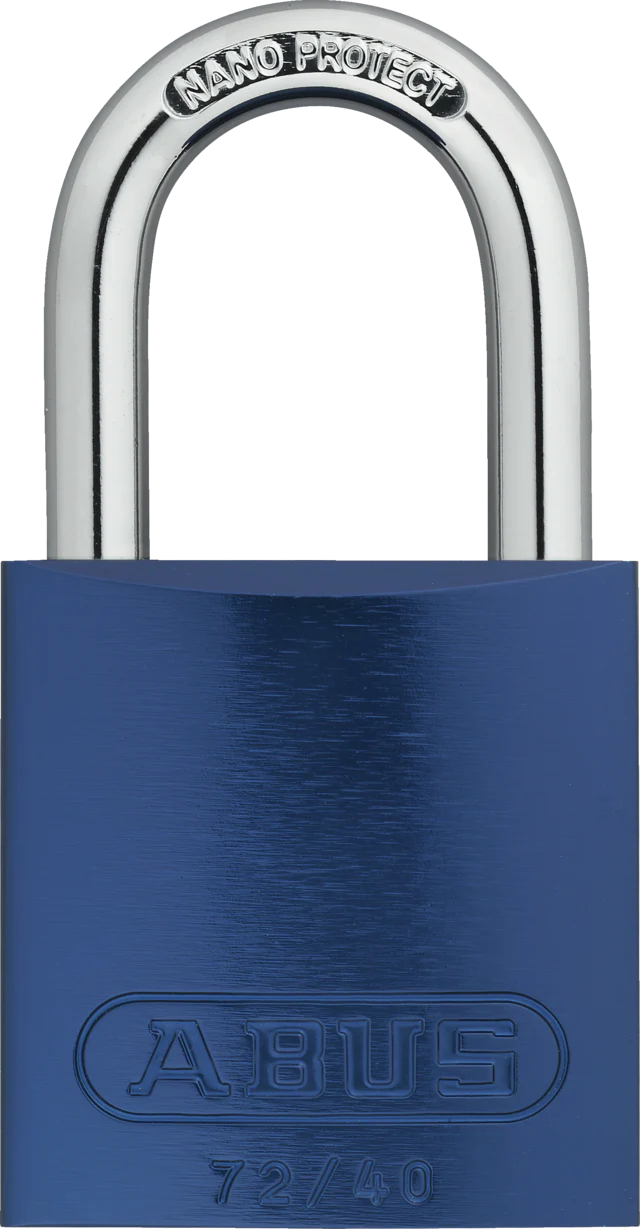

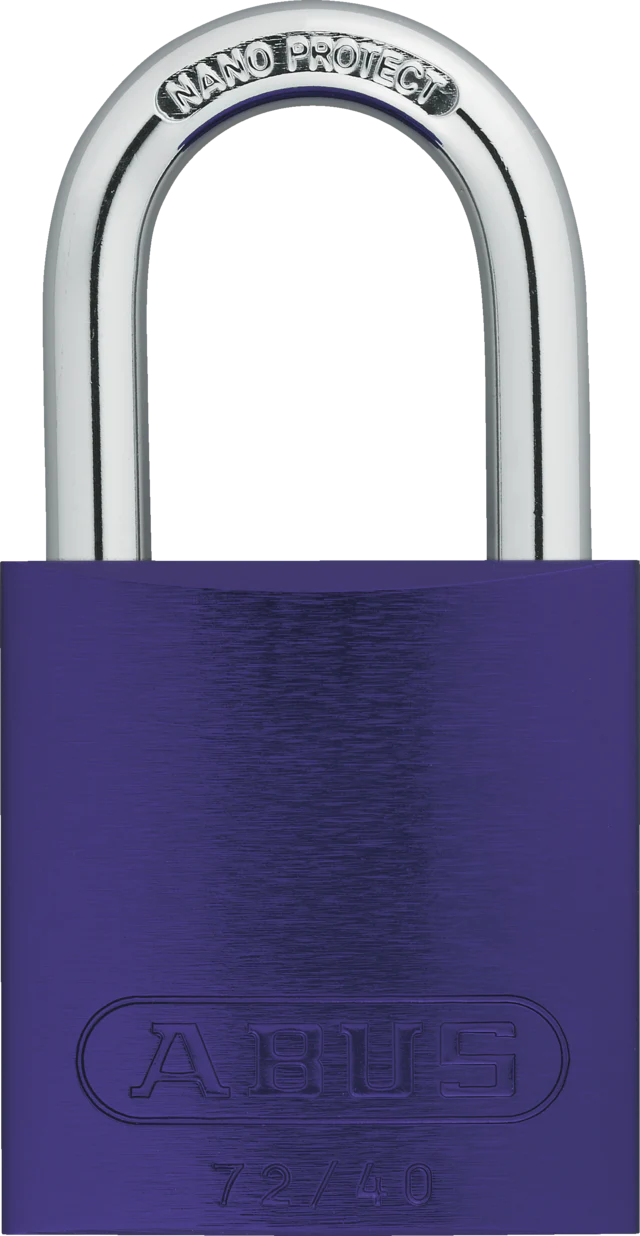

• 72/40: Standard shackle (40 mm body)

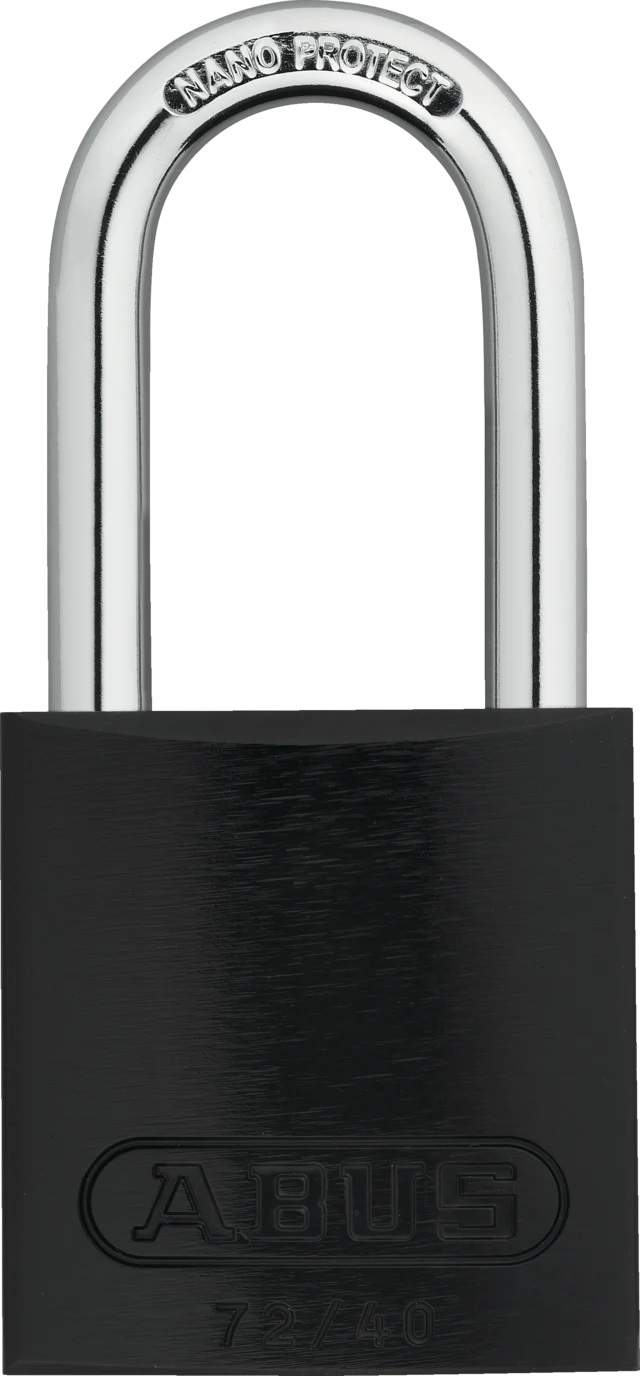

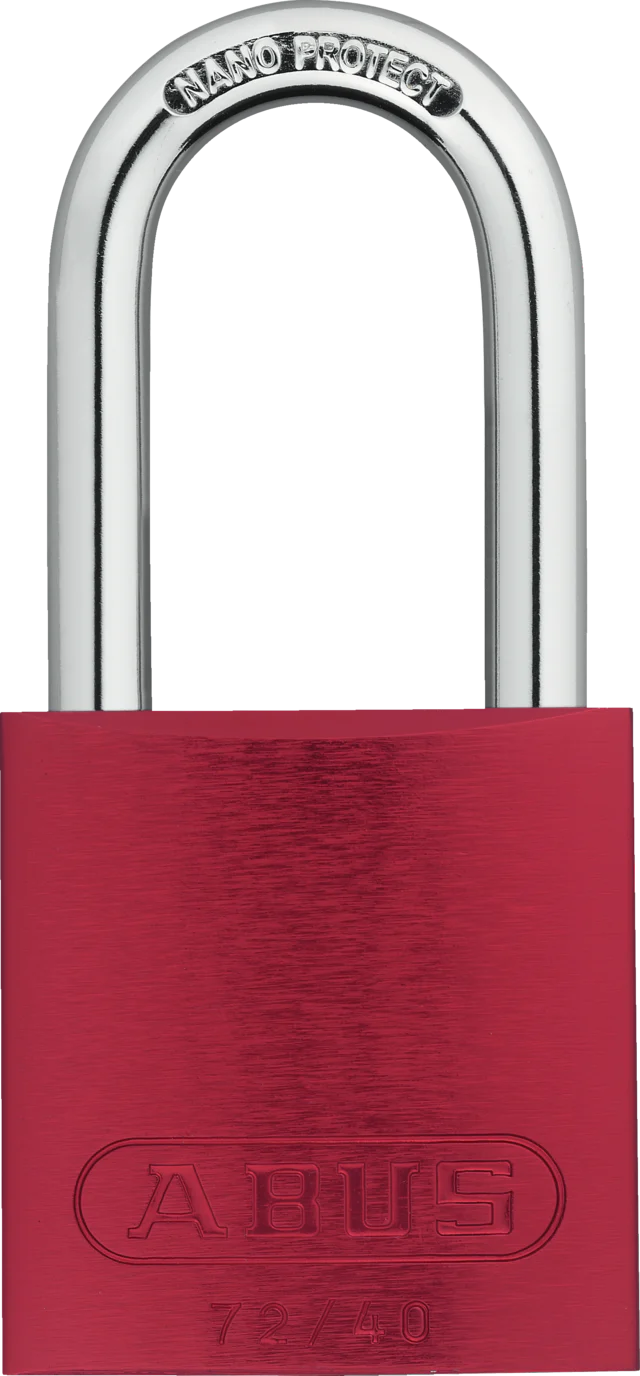

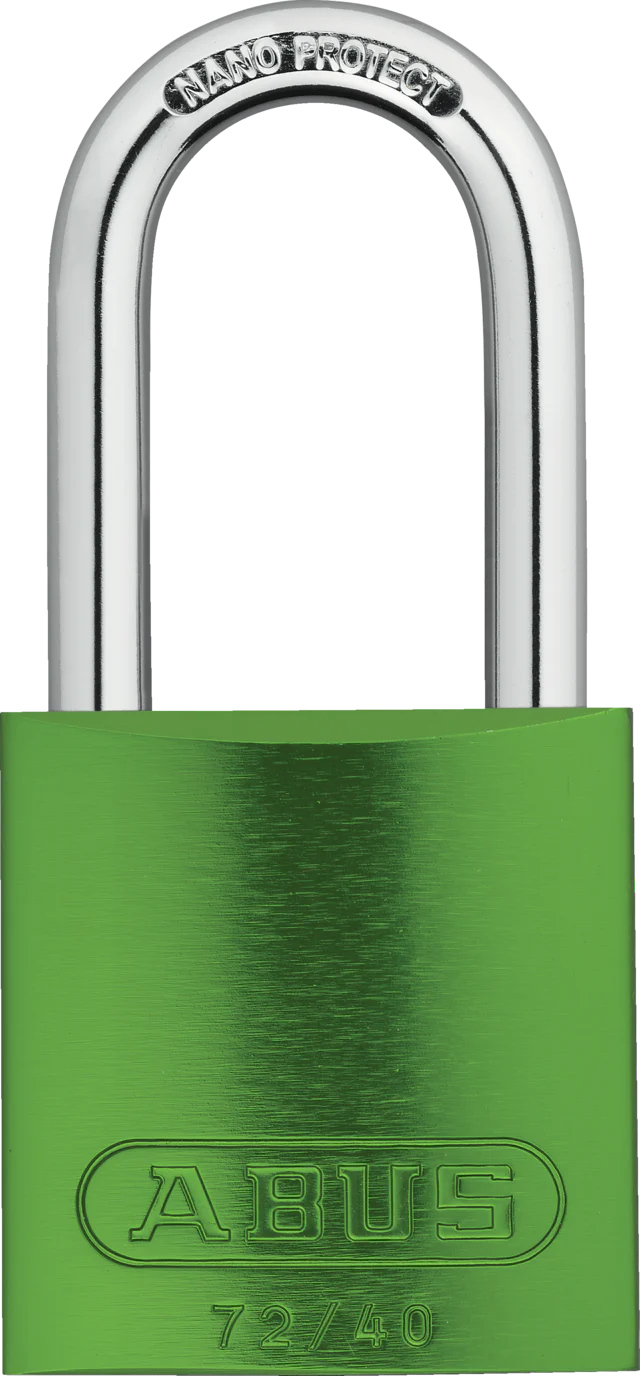

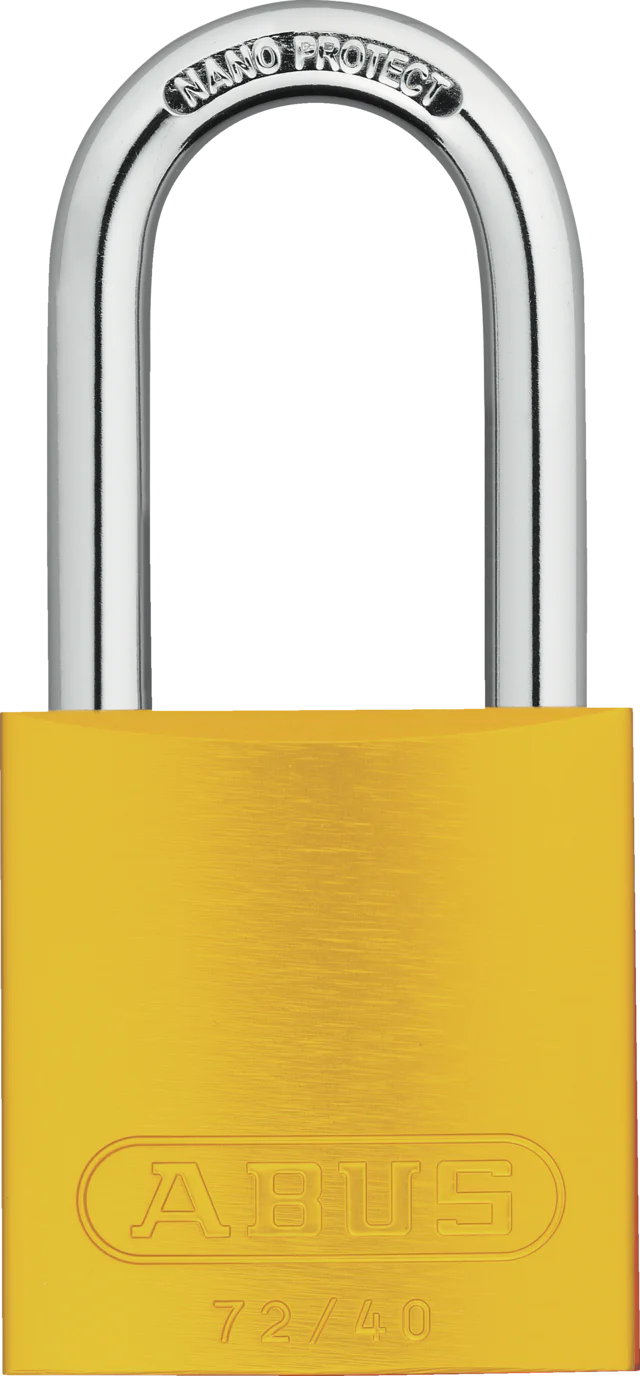

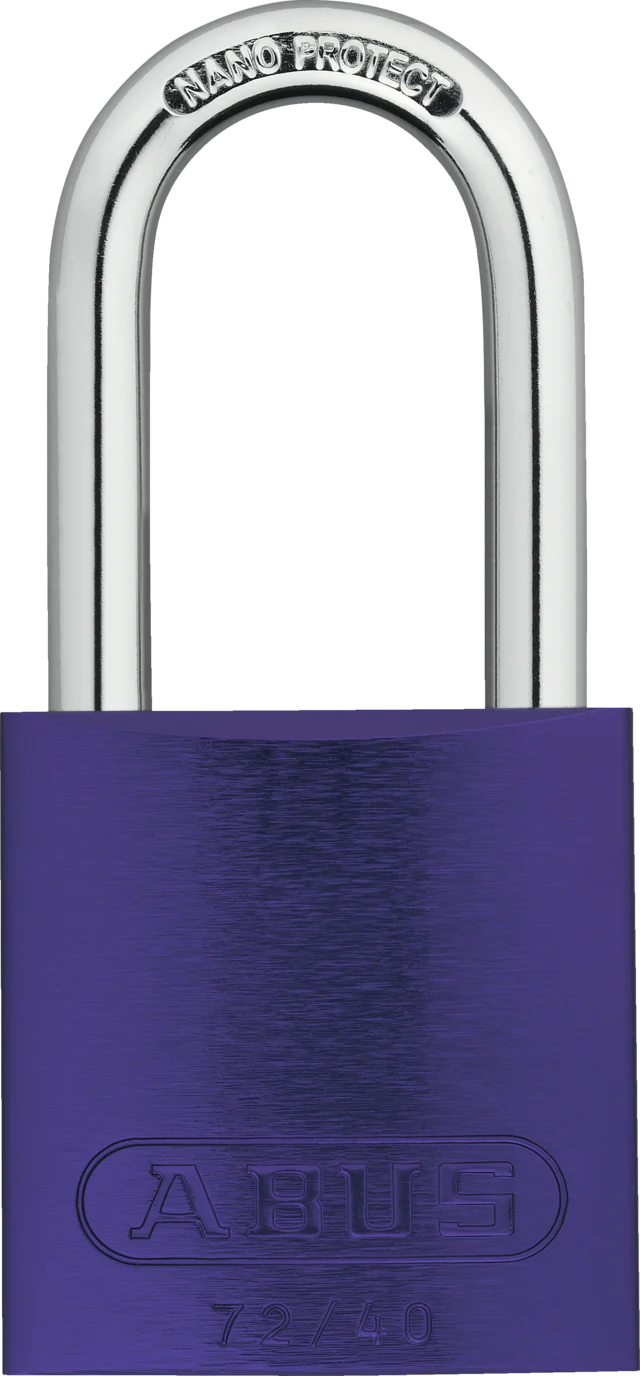

• 72/40HB40: Long shackle (39 mm vertical clearance)

Ideal Applications

• Safety lockout and tagout (LOTO) procedures
• Gates, lockers, and storage units
• Workshops, toolboxes, and utility enclosures
• Colour-coded key and lock management systems
• General indoor and outdoor security

Specifications

• Product Type: Lightweight High-Security Aluminium Padlock
• Locking Type: Keyed (ABUS Precision 6-Pin Cylinder)
• Security Rating: Level 5 (72/30, 72/30HB50) | Level 6 (72/40, 72/40HB40)
• Indoor Use: Yes
• Outdoor Use: Yes
• Marine Use: No
• Safety Use: Yes (all variants)
• High Security Use: No
• Material – Body: TITALIUM™ Special Aluminium
• Colours Available: Blue, Yellow, Green, Brown, Purple, Orange, Red, Black
• Material – Shackle: Hardened Steel with NANO PROTECT™ Plating
• Shackle Type: Standard (Open) | Long (HB variants)
• Removable Shackle: No
• Keyed Alike Option: Yes (all variants)
• Master Key Option: Yes (all variants)
• Key Retaining: No
• Key Type: 01842 (72/30, 72/30HB50) | 20066 (72/40, 72/40HB40)
• Keys Supplied: 2

Dimensions & Weight (All Variants)

• 72/30: 32 × 64.5 × 16 mm | 66 g | Ø 4.5 mm | Clearance: 17 × 26.5 mm
• 72/30HB50: 32 × 89 × 16 mm | 69 g | Ø 4.5 mm | Clearance: 17 × 51 mm
• 72/40: 39 × 74 × 19 mm | 113 g | Ø 6.5 mm | Clearance: 19.5 × 26.5 mm
• 72/40HB40: 39 × 86.5 × 19 mm | 141 g | Ø 6.5 mm | Clearance: 19.5 × 39 mm

Design & Finish

• Colours: Blue, Yellow, Green, Brown, Purple, Orange, Red, Black
• TITALIUM™ aluminium construction combines the strength of steel with a fraction of the weight
• NANO PROTECT™ plating on both body and shackle provides a superior corrosion-resistant barrier
• Slim, modern profile available in vibrant colours for easy visual identification and organisation

Additional Information

• Compatible with ABUS hasps: 100 Series
• Compatible with ABUS chains: 6KS
• Long shackle (HB) variants ideal for extended reach applications
• Rekeying capability allows integration into existing key systems without replacing locks
• Pinning kits and serviceable padlock options available for maintenance and key system flexibility
• LoveLock red variant available as a decorative and gift option

Packaging Information

• 1 × ABUS Aluminium 72 Series Padlock (selected variant and colour)
• 2 × Keys included
