2-Piece DIN Night Latch – 72mm Centres

2-Piece DIN Night Latch – 72mm Centres

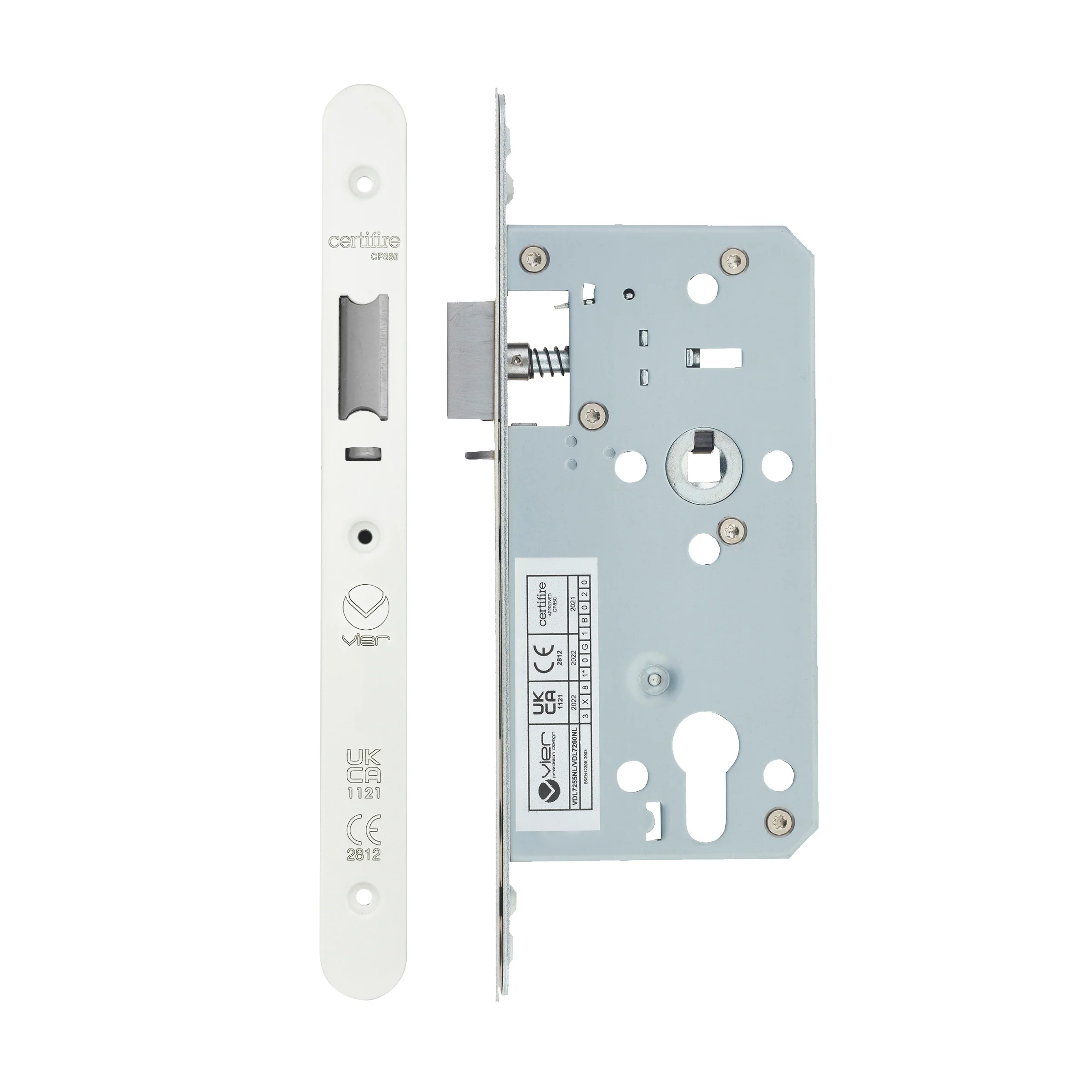

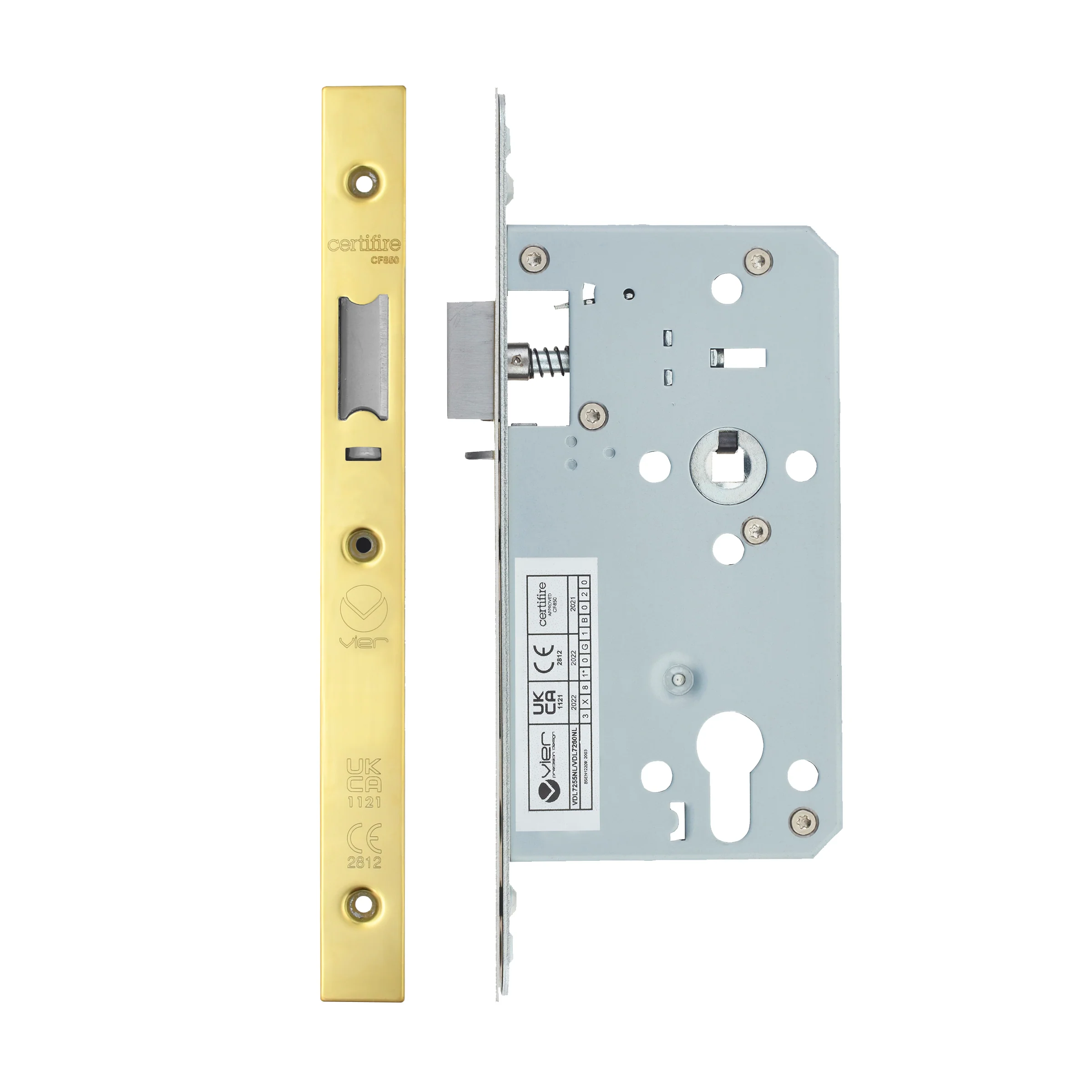

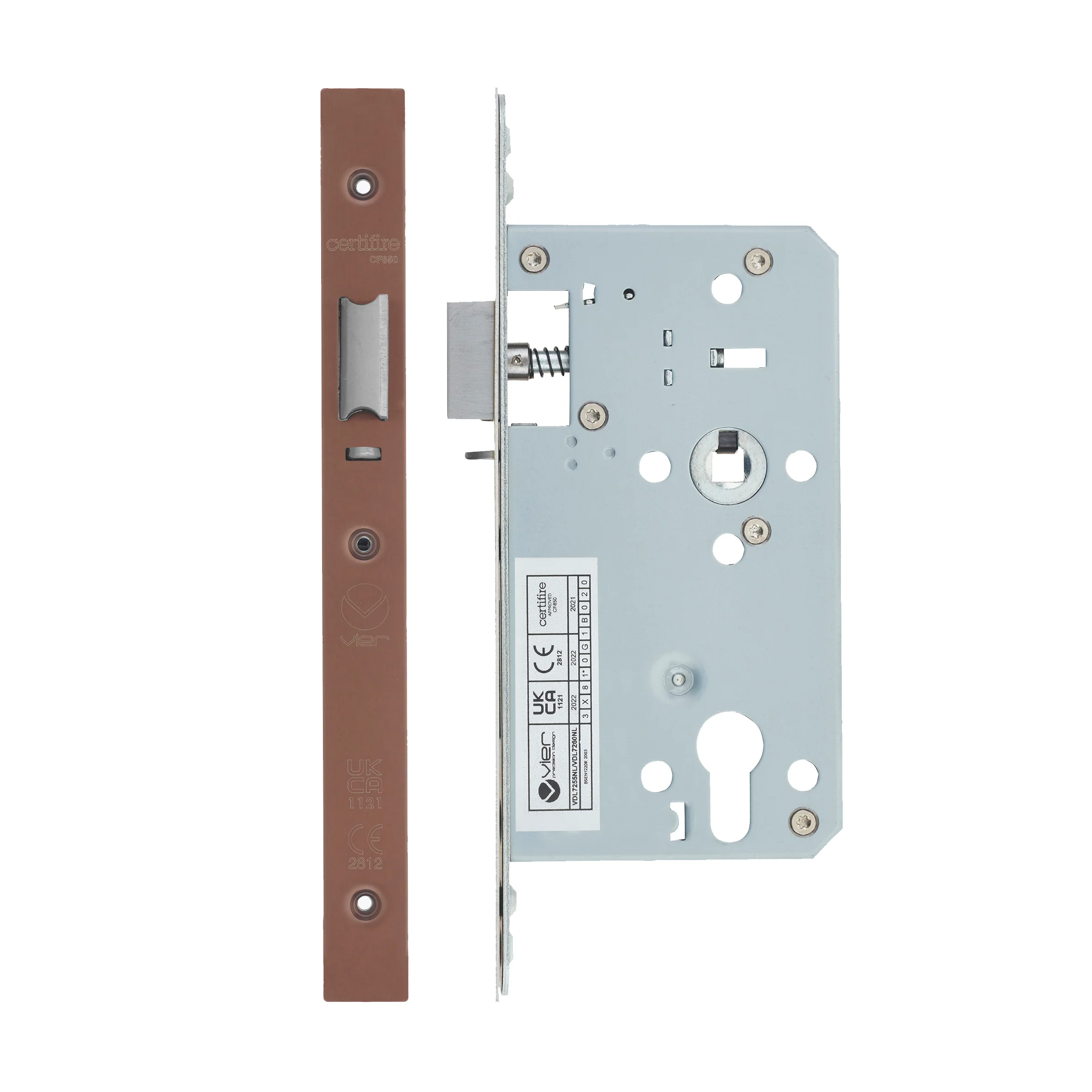

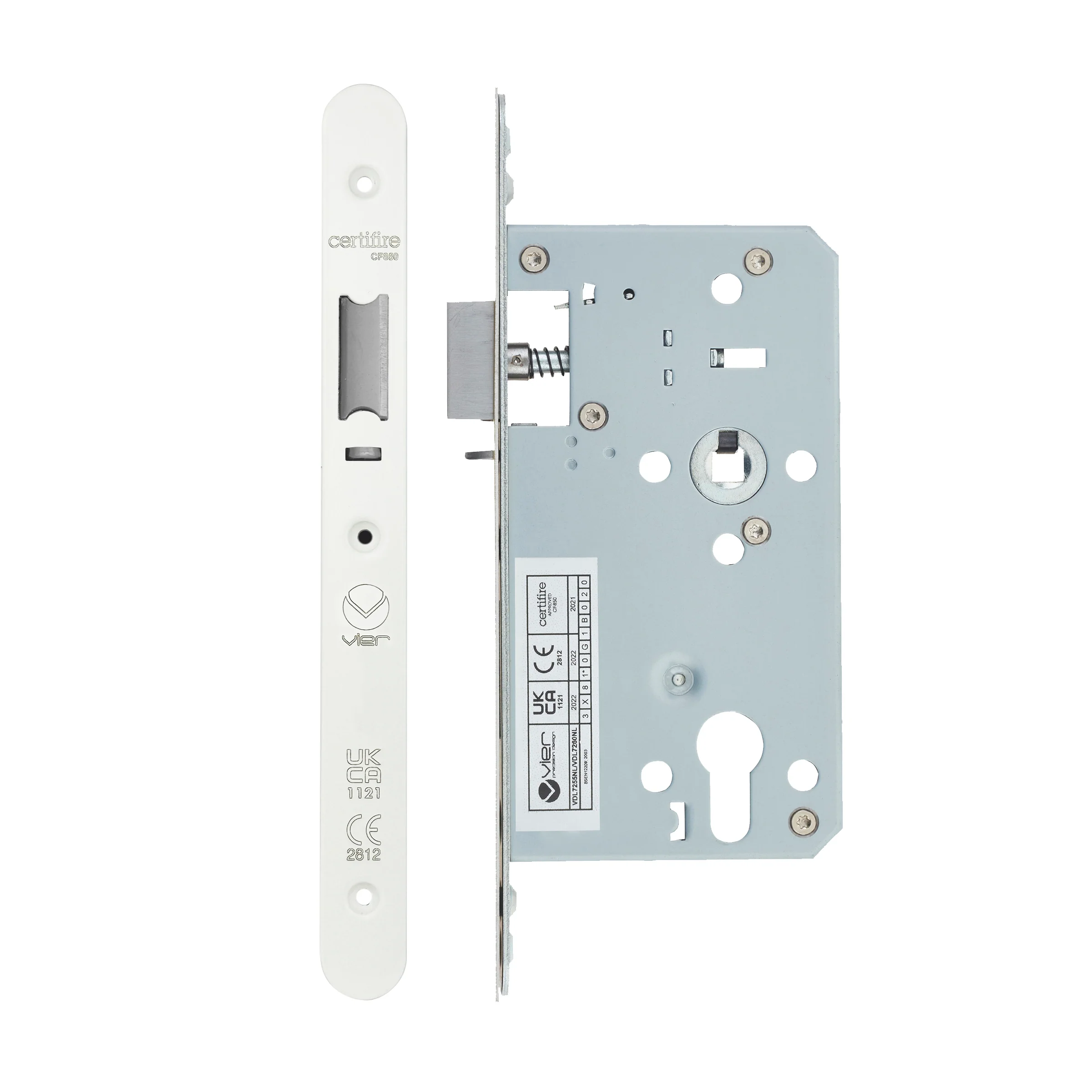

The 2-Piece DIN Night Latch is a robust and reliable locking solution designed for commercial and high-traffic door applications where controlled access and security are essential. Manufactured to BS EN 12209:2003 Grade 3, it offers dependable performance, smooth operation, and long service life.

Constructed with a SS304 two-piece stainless steel forend and precision-engineered internal components, the night latch range is available with 55mm or 60mm backsets and square or radius forend profiles. Select variants include enhanced security features such as anti-thrust pins and double throw deadbolts.

Key Features

• DIN night latch – 2-piece construction
• BS EN 12209:2003 – Grade 3
• 72mm centres (c/c)
• 90mm case size
• Backset options: 55mm or 60mm
• SS304 two-piece stainless steel forend
• Square or radius forend profile (22mm)
• Grade 304 stainless steel latchbolt
• Anti-thrust pin on selected variants
• Double throw deadbolt on selected variants
• Grip-tight follower for consistent handle action

Backset Options

• 55mm
• 60mm

Case Size

• 90mm

Centres

• 72mm

Forend Profile

• Square – 22mm
• Radius – 22mm

Finish

• PVD Gold
• PVD Satin Black
• PVD Satin Brass
• PVD Satin Bronze
• Polished Stainless
• Powder Coat Black
• Powder Coat White
• Satin Stainless

Standards & Certification

• BS EN 12209 – Grade 3
• Suitable for commercial applications

Specifications

• Product Type: DIN Night Latch
• Construction: Grade 304 Stainless Steel
• Application: Commercial & high-traffic doors

Packaging Information

• Pack Quantity: 1 night latch per box
