2-Piece DIN Latch Range

2-Piece DIN Latch Range

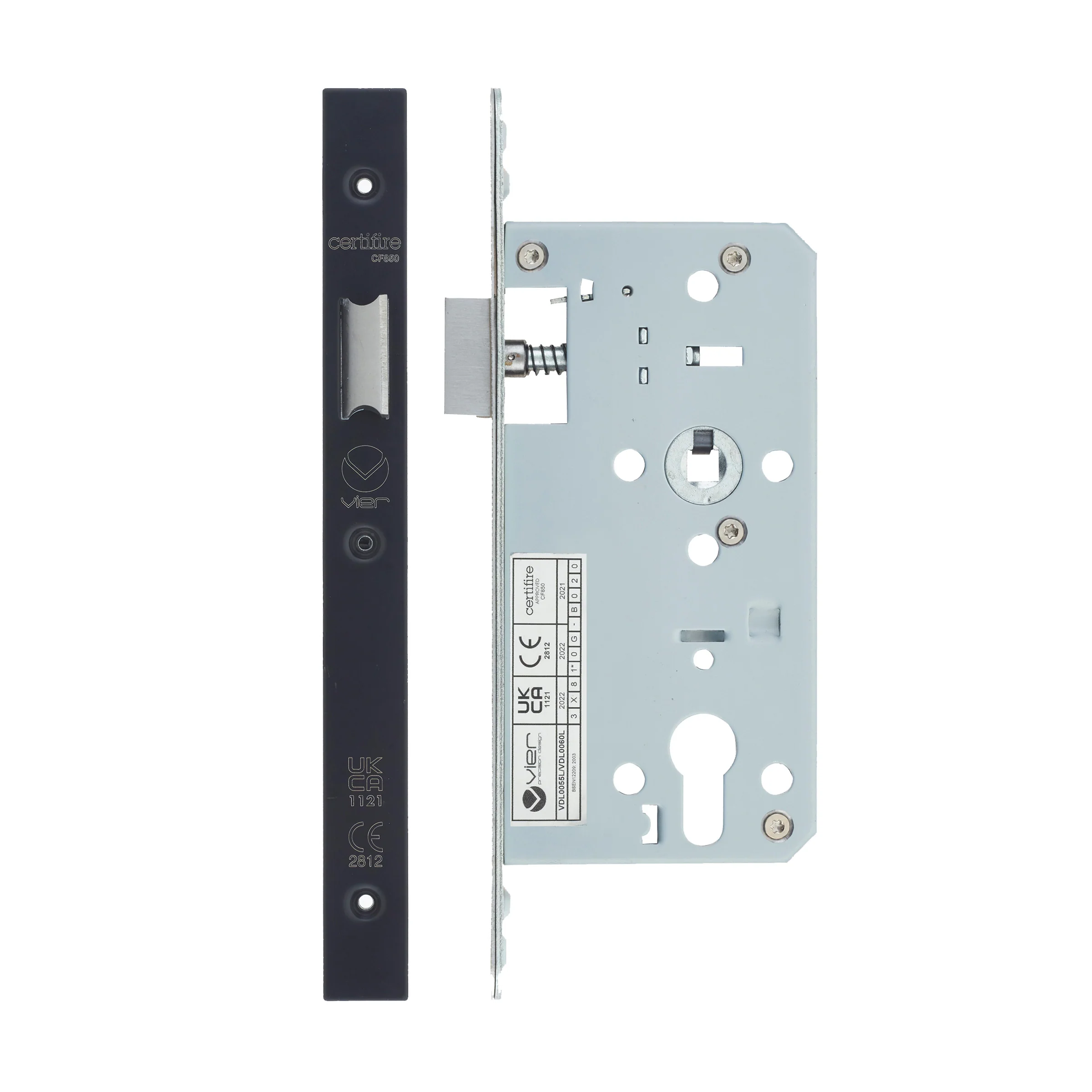

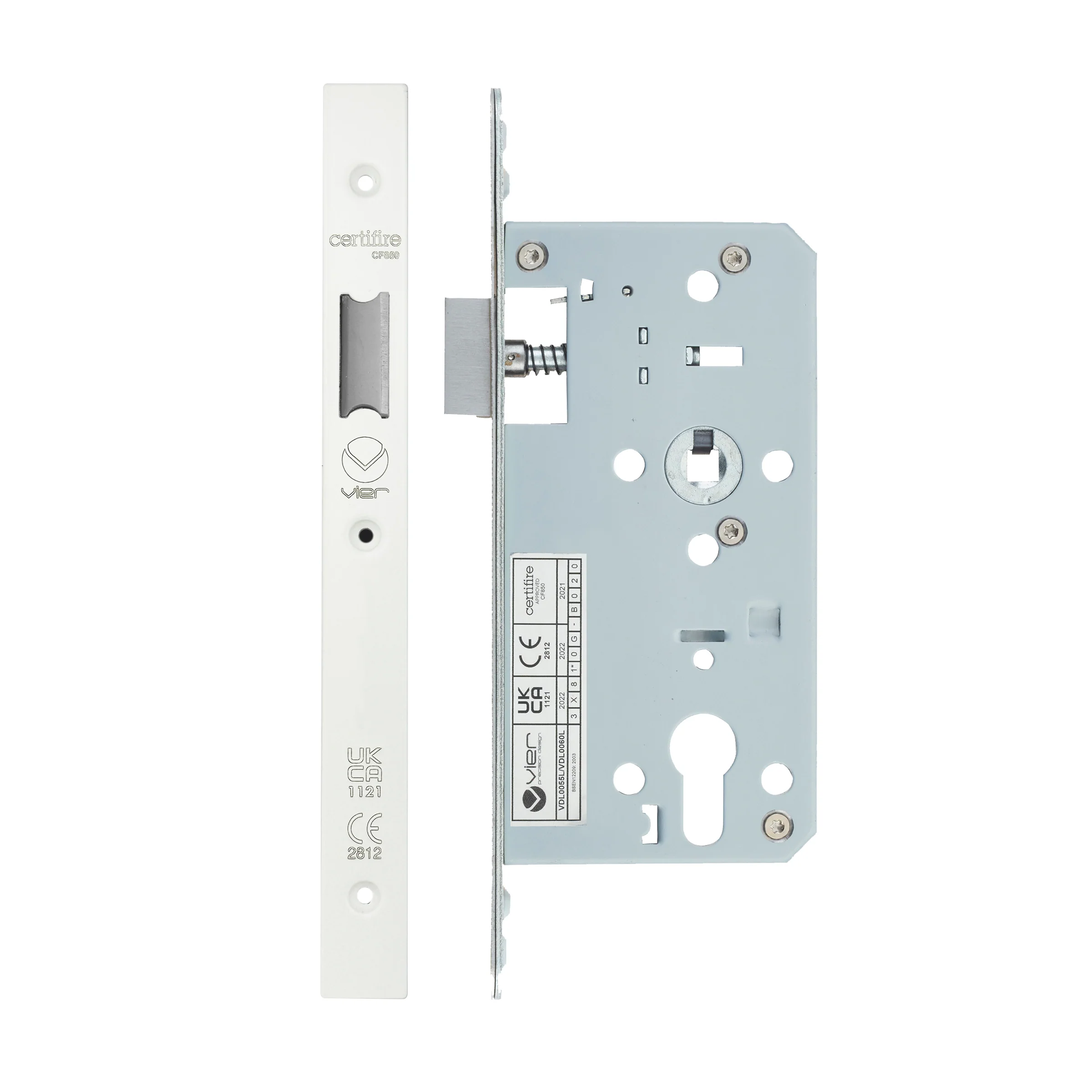

The 2-Piece DIN Latch is a high-performance latch solution designed for commercial and high-traffic door applications. Manufactured to BS EN 12209:2003 Grade 3, it delivers durability, smooth operation, and long-term reliability in demanding environments.

Featuring a two-piece SS304 stainless steel forend, precision-engineered internal components, and a quiet operating mechanism, this DIN latch is suitable for use on FD30 and FD60 fire-rated timber doors. Available in 55mm and 60mm backsets with square or radius forend profiles to suit different door preparations.

Key Features

• DIN latch – 2-piece construction
• BS EN 12209:2003 – Grade 3
• Backset options: 55mm or 60mm
• 90mm case size
• 72mm centres (c/c)
• SS304 two-piece stainless steel forend
• Square or radius forend profile (22mm)
• Grade 304 stainless steel latchbolt
• Anti-rattle strike for quiet operation
• Grip-tight follower for consistent handle action

Backset Options

• 55mm
• 60mm

Case Size

• 90mm

Centres

• 72mm

Forend Profile

• Square – 22mm
• Radius – 22mm

Finish

• PVD Gold
• PVD Satin Black
• PVD Satin Brass
• PVD Satin Bronze
• Polished Stainless
• Powder Coat Black
• Powder Coat White
• Satin Stainless

Standards & Certification

• BS EN 12209 – Grade 3
• CE Marked – CE2812
• UKCA Marked – UKCA1121
• CF850 Tested
• Fire Rated: FD30 / FD60 (Timber Doors)

Specifications

• Product Type: DIN Latch
• Construction: Grade 304 Stainless Steel
• Application: Commercial & fire-rated doors

Packaging Information

• Pack Quantity: 1 latch per box
