145 Series – Solid Aluminium Combination Padlock

145 Series – Solid Aluminium Combination Padlock (Compact, Lightweight & Resettable)

The 145 Series Combination Padlock is a compact and lightweight security solution designed for everyday protection in low to medium risk environments. With a solid aluminium body and corrosion-resistant anodised coating, it is ideal for both indoor and outdoor use, offering reliable durability without added weight.

Equipped with a spring-loaded steel shackle and a resettable combination code, the 145 Series ensures convenient keyless access. Available in three sizes and multiple colour options, it provides flexibility for securing lockers, bags, toolboxes, and personal storage.

Key Features

• Lightweight solid aluminium body with anodised coating
• Corrosion-resistant for indoor and outdoor use
• Resettable combination code (3 or 4 digits)
• Spring-loaded steel shackle for quick locking
• Available in three sizes for different applications
• Wide range of colours for easy identification
• Compact and portable design

Variant Options

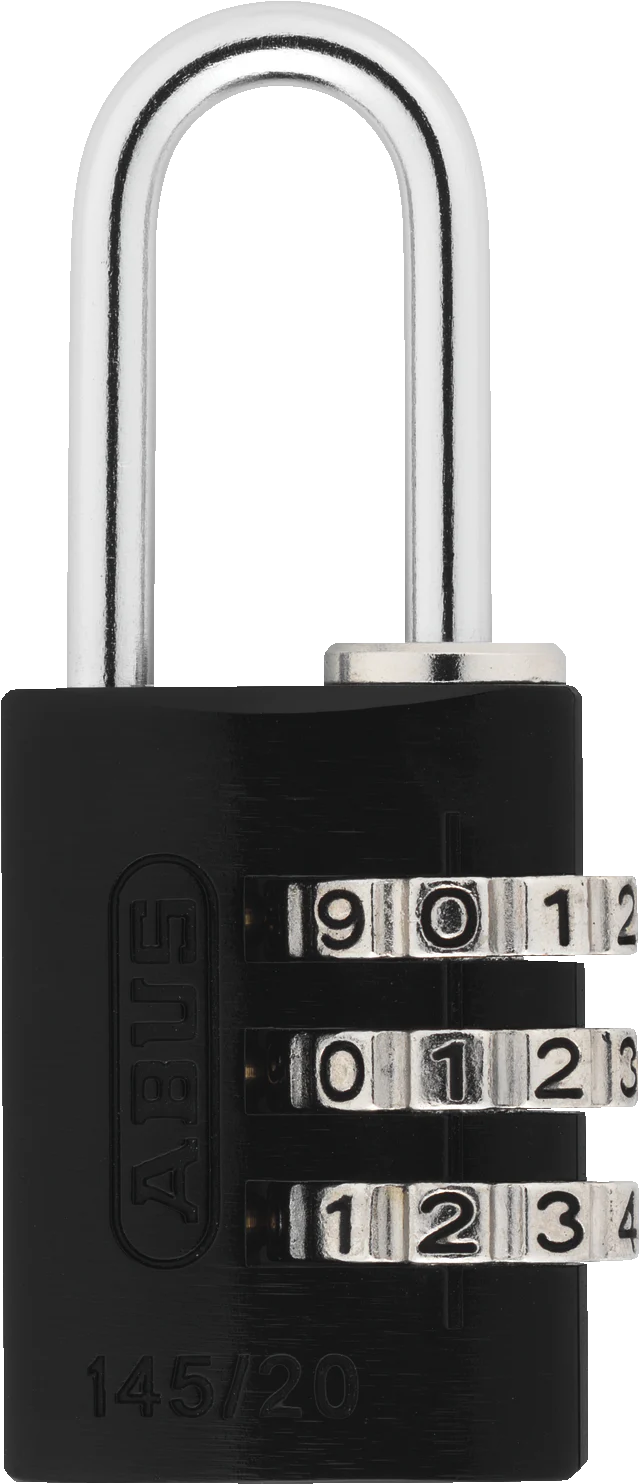

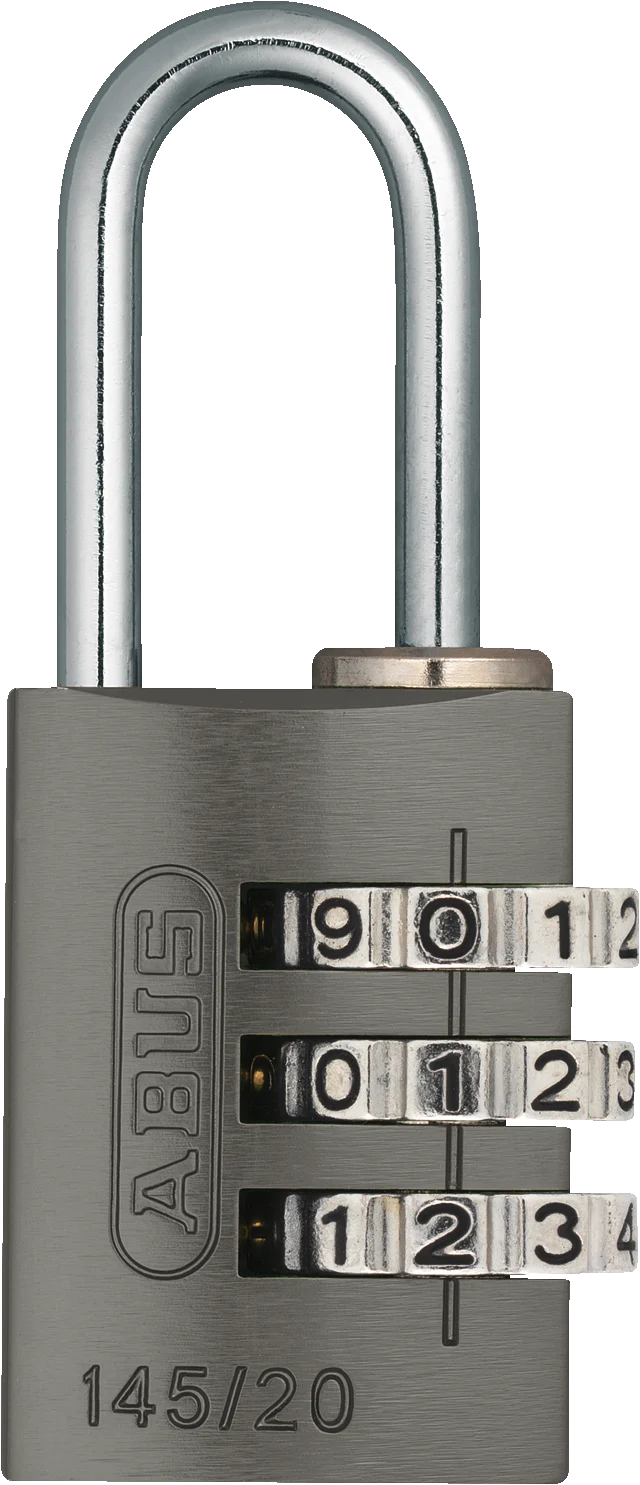

• 145/20: 3-digit code with 1,000 combinations (compact size)

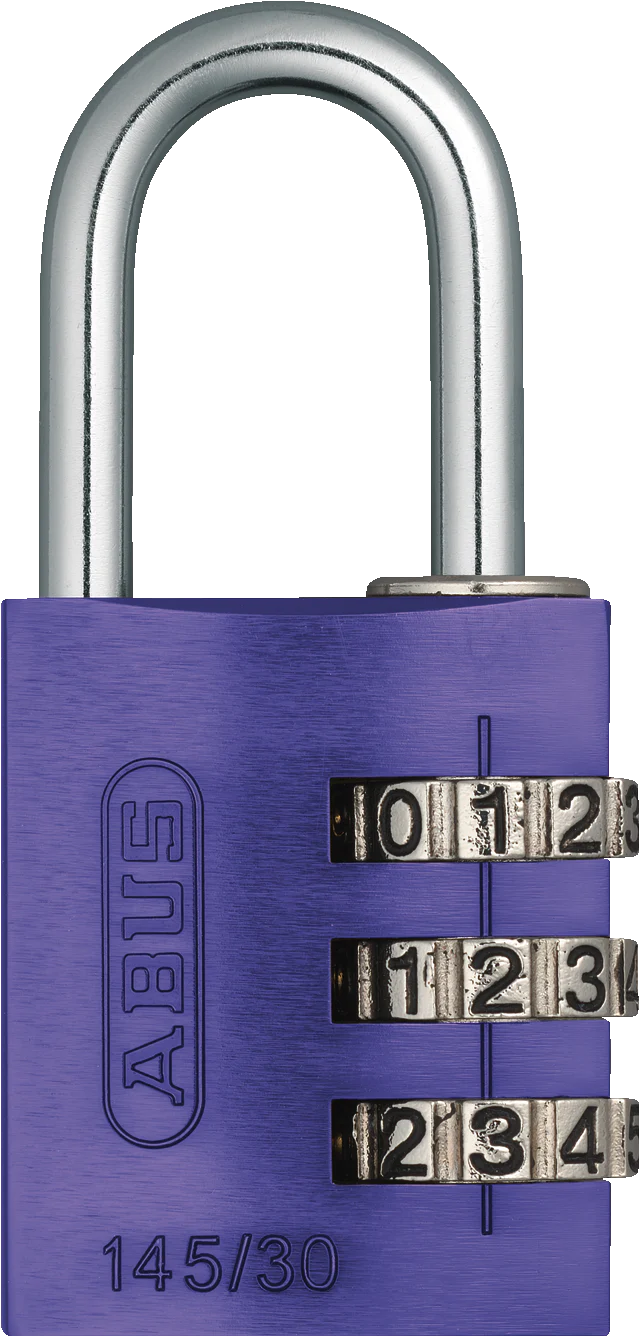

• 145/30: 3-digit code with 1,000 combinations (standard size)

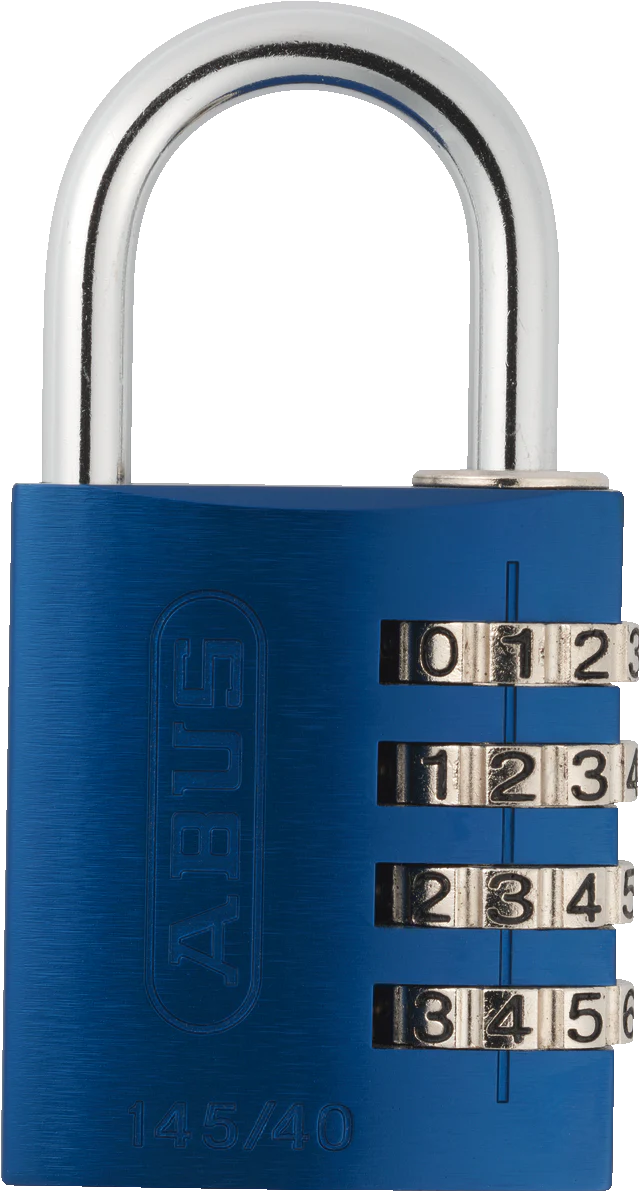

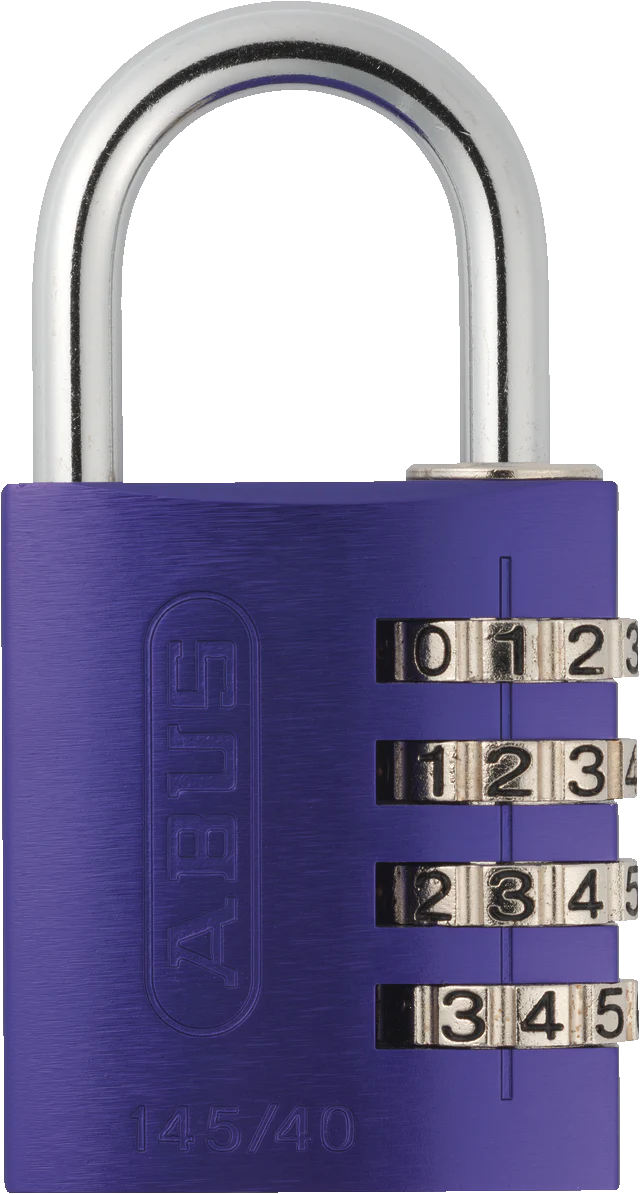

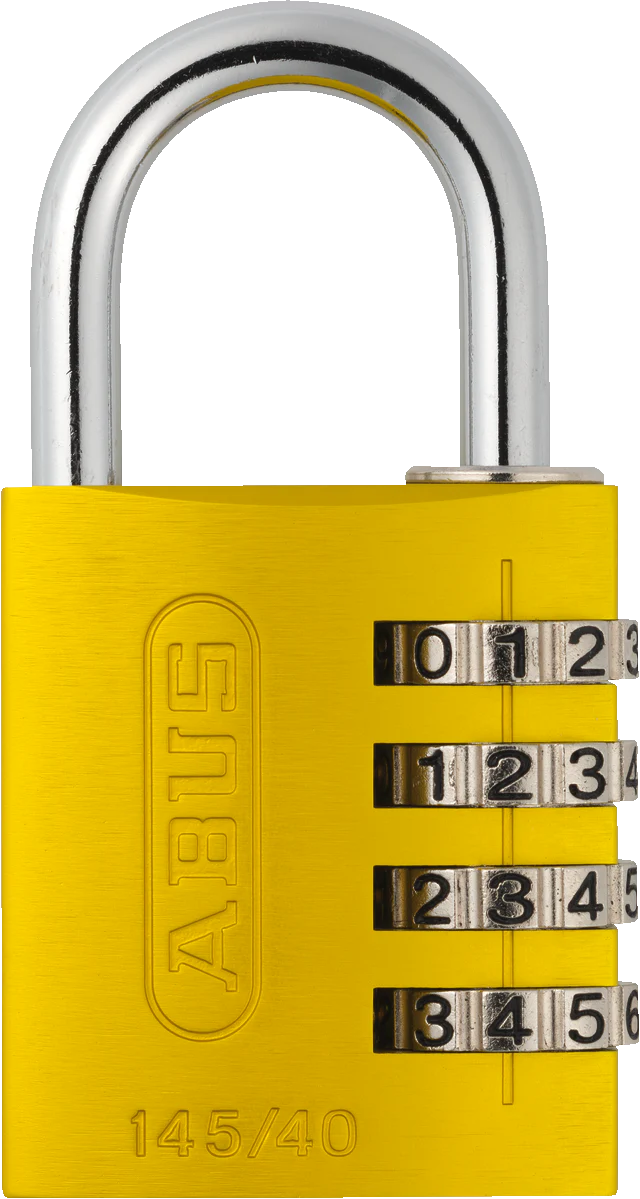

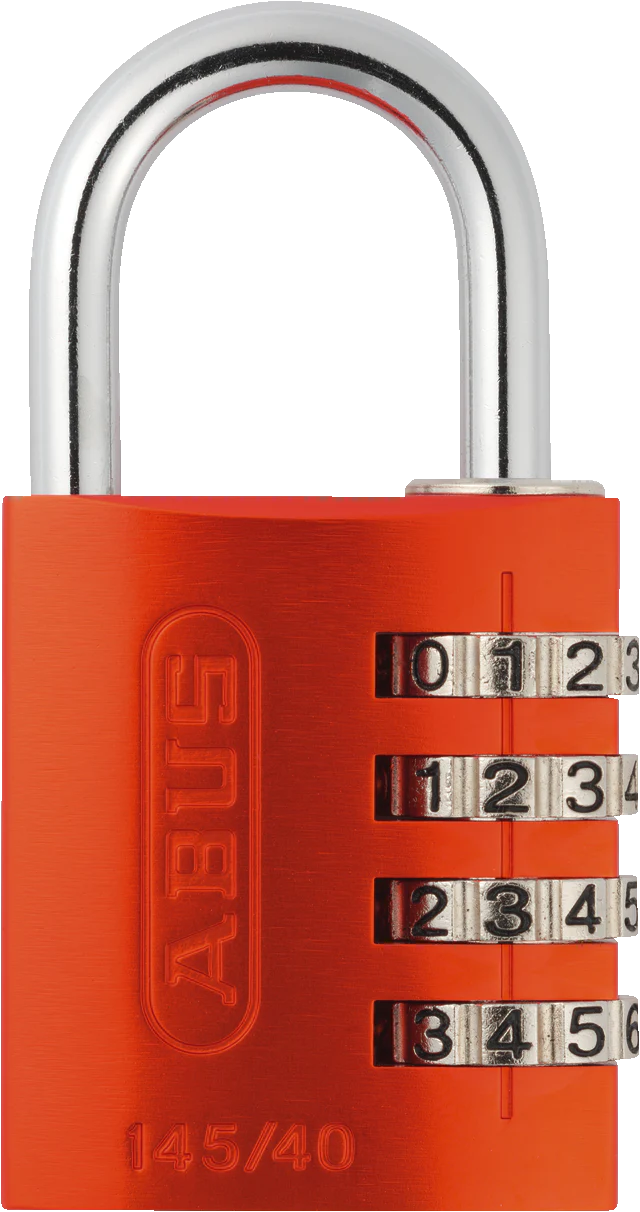

• 145/40: 4-digit code with 10,000 combinations (enhanced security)

Ideal Applications

• School and gym lockers
• Bags, luggage, and backpacks
• Toolboxes and small storage units
• Gates, cabinets, and low to medium security areas

Specifications

• Product Type: Combination Padlock
• Locking Type: Number Combination
• Resettable Code: Yes
• Security Rating: Level 3
• Indoor Use: Yes
• Outdoor Use: Yes
• Marine Use: No
• Material – Body: Aluminium (Anodised)
• Material – Shackle: Steel
• Shackle Type: Standard (Open)
• Suggested Hasps: ABUS 200 Series

Dimensions & Weight

• 145/20: 22.5 × 52.5 × 13.5 mm | 25 g
• 145/30: 31.5 × 65 × 15.5 mm | 55 g
• 145/40: 41 × 77 × 17.5 mm | 110 g
• Shackle Diameter: 3 mm (145/20) | 5 mm (145/30) | 6 mm (145/40)
• Horizontal Clearance: 9 mm (145/20) | 14 mm (145/30) | 21.5 mm (145/40)
• Vertical Clearance: 22 mm (145/20) | 25 mm (145/30) | 26 mm (145/40)

Design & Finish

• Available in colours: Blue, Yellow, Green, Purple, Orange, Red, Black, Titanium, Silver
• Anodised finish for corrosion resistance and durability
• Compact, lightweight design for portability and ease of use

Additional Information

• Number of combinations: 1,000 (145/20 & 145/30) | 10,000 (145/40)
• Suitable for everyday use in low to medium security applications
• Easy to reset and reuse across different use cases

Packaging Information

• 1 × 145 Series Combination Padlock (selected size & colour)

145 Series – Solid Aluminium Combination Padlock 4 Digit Code (Enhanced Security) Datasheet
